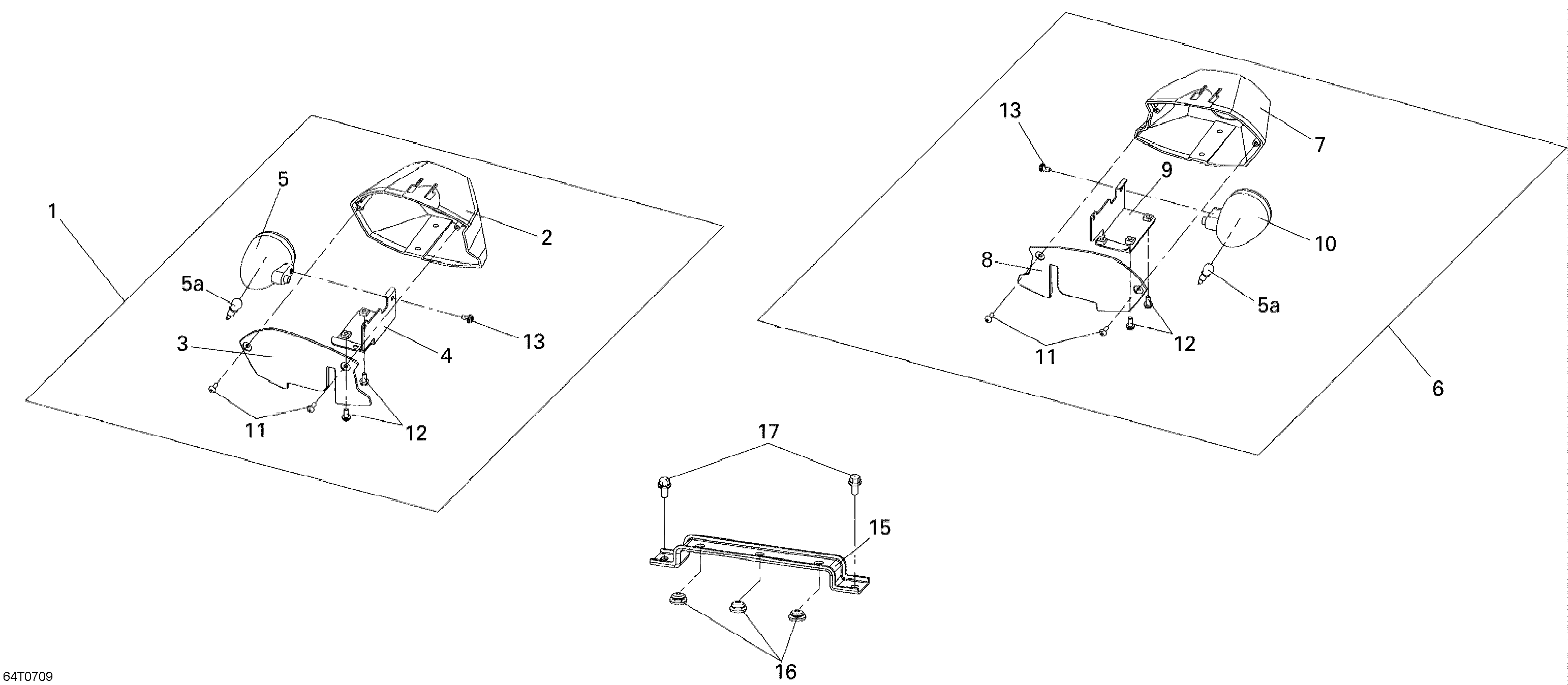

10- Flasher Lights для BRP DS 250, CE - 2007
-
№АртикулНазвание
-
2S83440RCA000 RH RR Winker ShroudRH RR Winker Shroud
-
3S83441RCA000 RH RR Winker PlateRH RR Winker Plate
-
4S83445RCA000 RH RR Winker SupportRH RR Winker Support
-
5S33600RCA000 RH RR Winker Ass'yRH RR Winker Ass'y
-
5aS34905RCA000 Flasher Light Bulb, 21wFlasher Light Bulb, 21w
-
7S83450RCA000 LH RR Winker ShroudLH RR Winker Shroud
-
8S83451RCA000 LH RR Winker PlateLH RR Winker Plate
-
9S83455RCA000 LH RR Winker SupportLH RR Winker Support
-
10S33650RCA000 LH RR Winker Ass'yLH RR Winker Ass'y
-
11S938920501007 Washer Screw M5 X 10Washer Screw M5 X 10
-
12S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
13S93500060120G Pan Screw M5 X 10Pan Screw M5 X 10
-
15S50324RCA000 Battery BracketBattery Bracket
-
16S83618MKA000 Battery GrommetBattery Grommet
-
17S934040601607 Washer Bolt M6 X 16Washer Bolt M6 X 16
