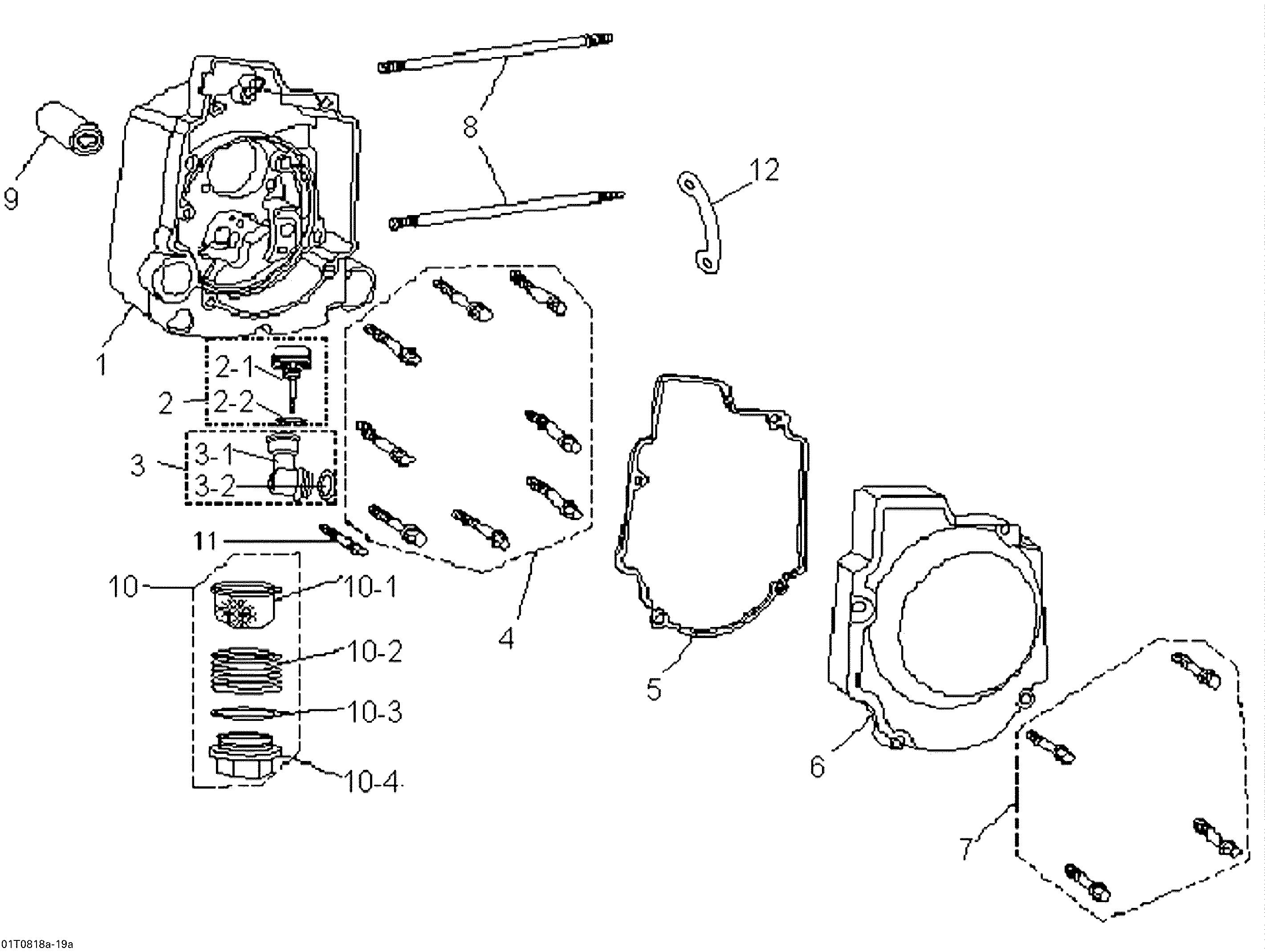

01- Crankcase, Right для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V11100CJF000 RH CrankcaseRH Crankcase
-
2V1565ACJF000 Oil Level GaugeOil Level Gauge
-
3V11165CJF000 Gauge ConduitGauge Conduit
-
4207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
5V11393CJF000 GasketGasket
-
6V11330CJF000 CoverCover
-
7207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
8V9100106198 Stud Bolt M6 X 198Stud Bolt M6 X 198
-
9V11103CJF000 Rubber BushingRubber Bushing
-
10V12361GYK000 Cap Tappet AdjustingCap Tappet Adjusting
-
10-1V15421GYK000 Oil Filter ScreenOil Filter Screen
-
11207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
12V11392CJF000 SupportSupport
