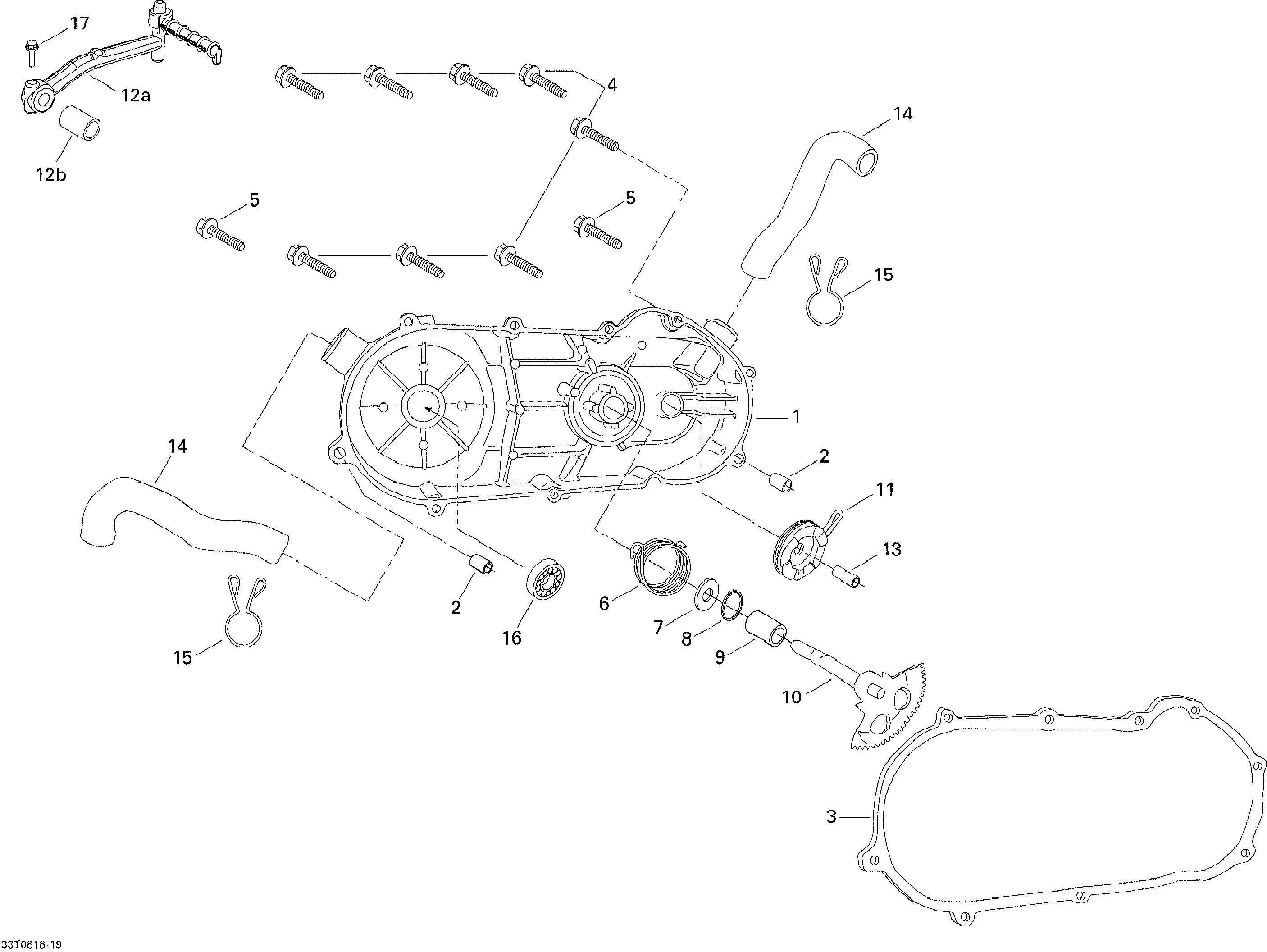

05- CVT Cover And Kick Stater для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V13341CJF000 CVT CoverCVT Cover
-
2A9430110140 Dowel PinDowel Pin
-
3V11359CJF000 CVT Cover GasketCVT Cover Gasket
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6V282814DM00 Spring TorsionSpring Torsion
-
7V9410415010 Washer FlatWasher Flat
-
8V9451015000 CirclipCirclip
-
9V282544DM00 Rubber BushingRubber Bushing
-
10V282504DM00 Shaft, KickShaft, Kick
-
11V2823A4DM00 Pinion Ass'y, KickPinion Ass'y, Kick
-
12aV28300DGF010 Kick StarterKick Starter
-
12bV52255MAA000 Kick Starter Spinder CapKick Starter Spinder Cap
-
13V281024DM00 Shaft Idle GearShaft Idle Gear
-
14V11345DGF000 CVT, Inlet Duct And Outlet DuctCVT, Inlet Duct And Outlet Duct
-
15V95002025030 ClipClip
-
16V96100638ZZ BearingBearing
-
17207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
