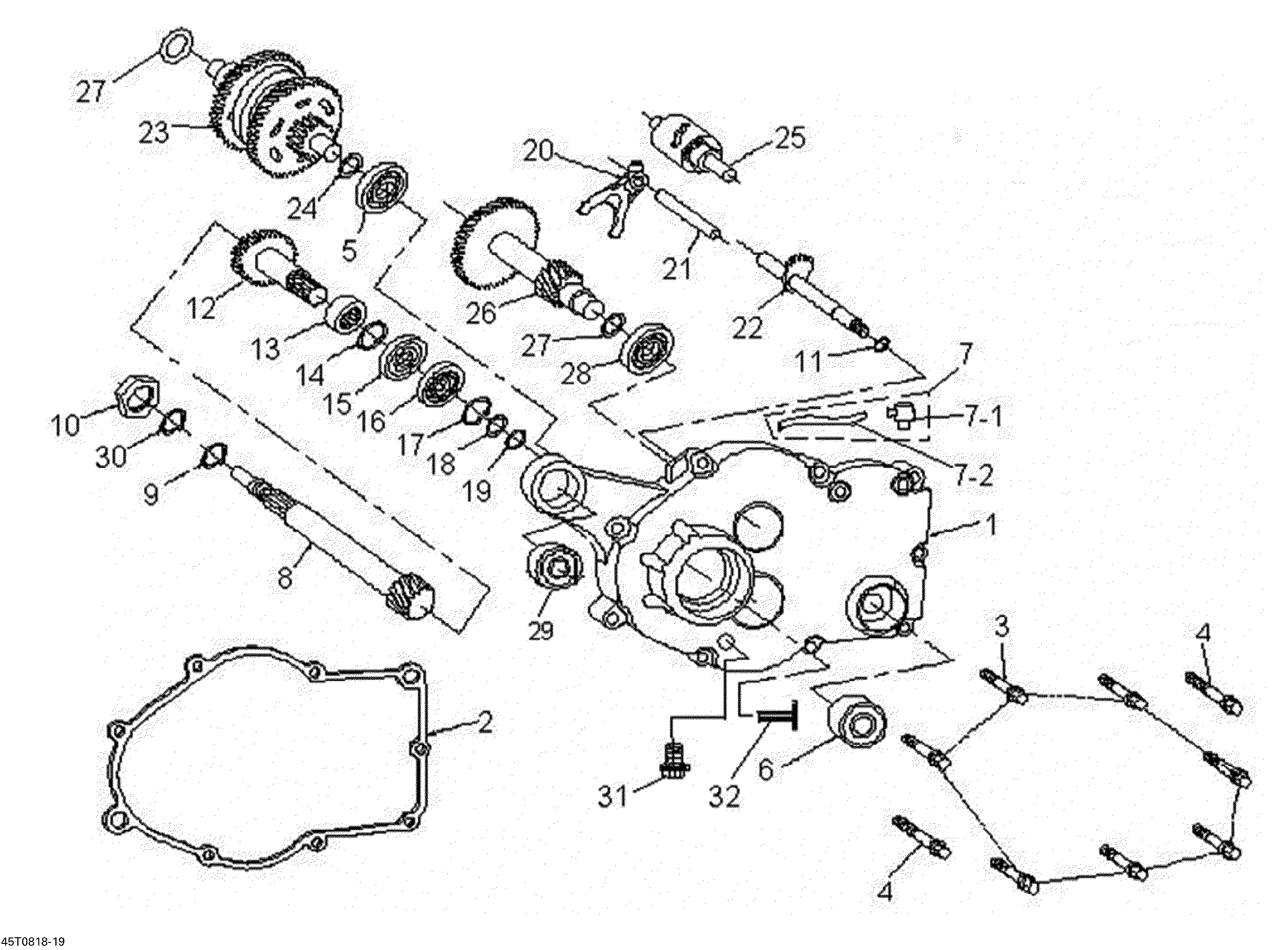

01- Gear Box для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V213004DMR00 CoverCover
-
2V213954DMR00 Cover GasketCover Gasket
-
3207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
4207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
5V961006202310 Ball BearingBall Bearing
-
6V92104MAA000 Oil SealOil Seal
-
7V11220CJF000 BreatherBreather
-
8V234114DMR00 Primary Drive GearPrimary Drive Gear
-
9V9451017000 CirclipCirclip
-
10V9400310000B NutNut
-
11V9451013000 CirclipCirclip
-
12V234303XGR00 Main ShaftMain Shaft
-
13V91130253315 Needle BearingNeedle Bearing
-
14V9453032000 CirclipCirclip
-
15V912044DM000 Oil SealOil Seal
-
16V961506004010 BearingBearing
-
17V9453042000 CirclipCirclip
-
18V941012028010 Washer FlatWasher Flat
-
19V9451019000 CirclipCirclip
-
20V242114DMR000 Shifting ForkShifting Fork
-
21V242414DMR01 PinPin
-
22V246104DMR000 Shift ShaftShift Shaft
-
23V234504DMR00 Reverse AxleReverse Axle
-
24V941011522010 Washer FlatWasher Flat
-
25V243014DMR000 Shift DrumShift Drum
-
26V234204DMR00 Reverse AxleReverse Axle
-
27V941011218010 Washer FlatWasher Flat
-
28V961006201310 Ball BearingBall Bearing
-
29V112034DM000 Rubber BushingRubber Bushing
-
30V91304DGF000 O-RingO-Ring
-
31207681244 Hex. Flanged ScrewHex. Flanged Screw
-
32V64313DGF000 PlugPlug
