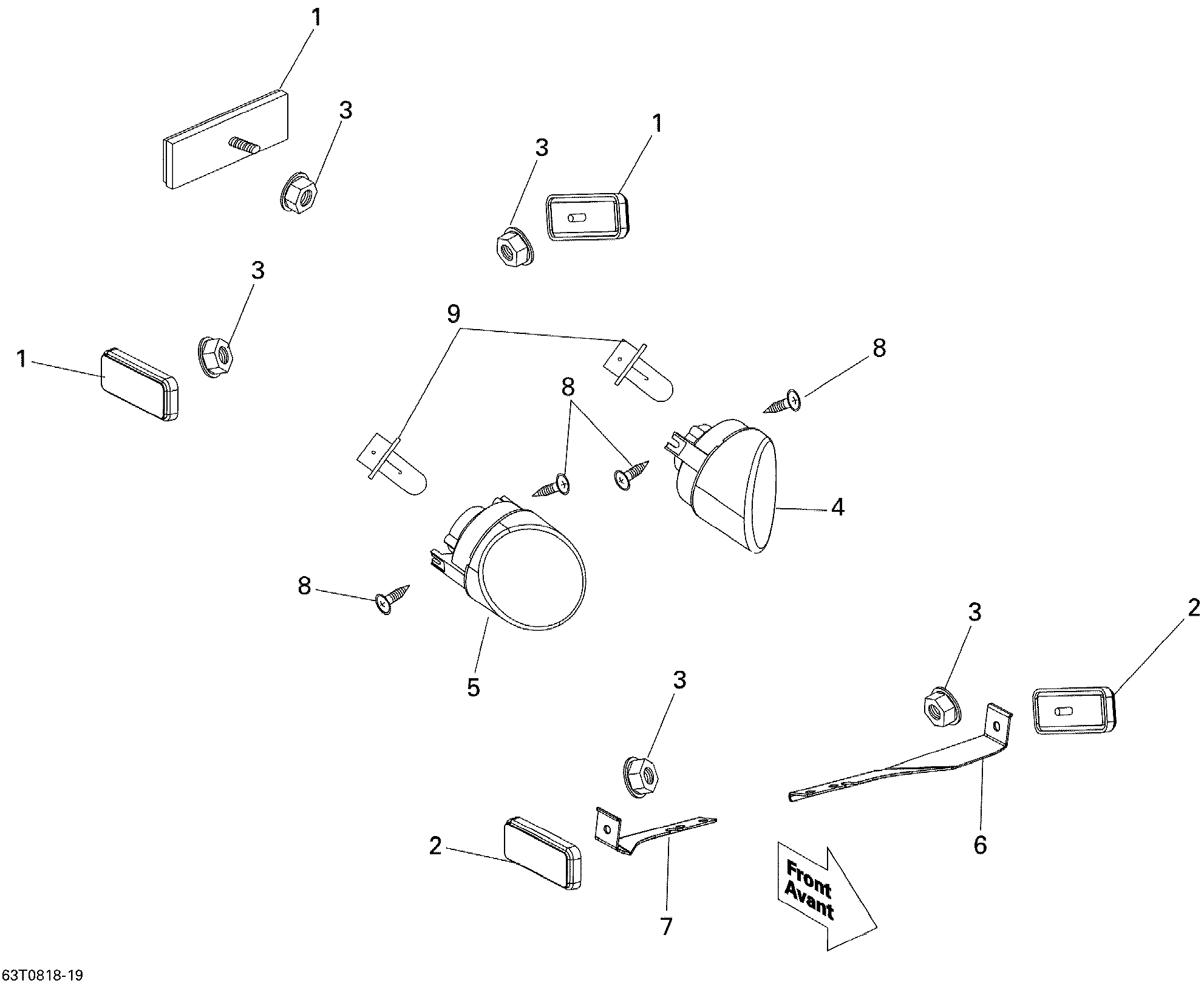

10- Headlights And Reflectors для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V64501MAA000 Reflector, RedReflector, Red
-
2V64502DGF000 Reflector, YellowReflector, Yellow
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4V80112DGF010 LH HeadlightLH Headlight
-
5V80212DGF010 RH HeadlightRH Headlight
-
6V50292DGF000 LH Front Reflector BracketLH Front Reflector Bracket
-
7V50295DGF000 RH Front Reflector BracketRH Front Reflector Bracket
-
8V9600004016 Round Head ScrewRound Head Screw
-
9V33100DGF000 LightLight
