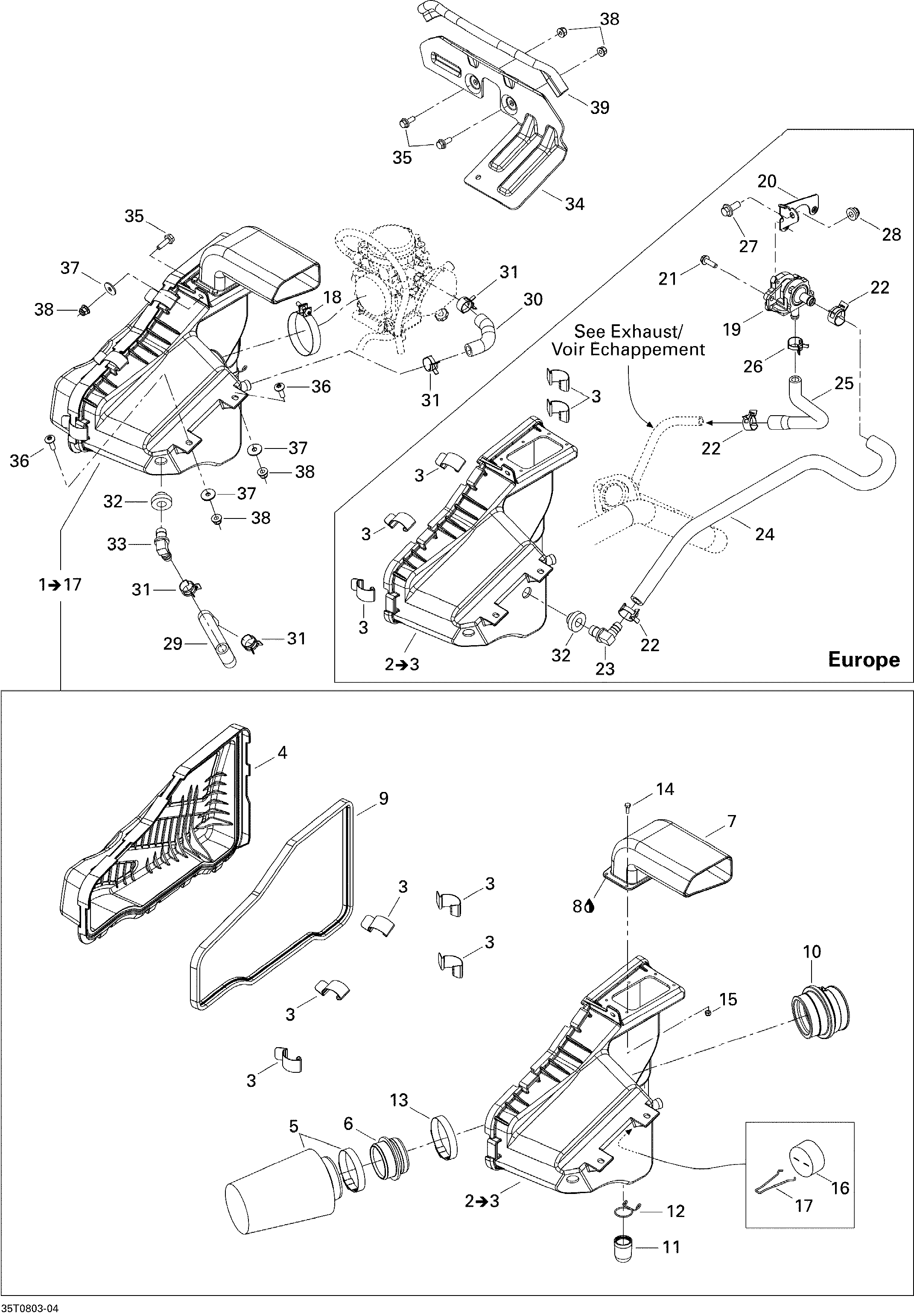

02- Air Intake для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
2707800115 Silencer Base. Includes 2 to 3Silencer Base. Includes 2 to 3
-
2707800210 Silencer Base. Includes 2 to 3, EuropeSilencer Base. Includes 2 to 3, Europe
-
3707800079 Bracket CoverBracket Cover
-
4707800119 Muffler CoverMuffler Cover
-
5707800120 Air FilterAir Filter
-
6707800134 Rigid AdaptorRigid Adaptor
-
7707800121 Front Intake AdaptorFront Intake Adaptor
-
8293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
9293250133 Oil SealOil Seal
-
10707800150 Intake AdaptorIntake Adaptor
-
11707800080 Drain TubeDrain Tube
-
12707800081 Retainer ClipRetainer Clip
-
13293650036 Tridon ClampTridon Clamp
-
14207141244 Hex Screw M4 X 12Hex Screw M4 X 12
-
15232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
16707800088 Filter FoamFilter Foam
-
17707800087 Foam BracketFoam Bracket
-
18293650155 Gemi ClampGemi Clamp
-
19707800208 Air Injection Valve. EuropeAir Injection Valve. Europe
-
20707800212 Air Injection Valve Support. EuropeAir Injection Valve Support. Europe
-
21210262080 Hex. Forming Screw M6 X 20. EuropeHex. Forming Screw M6 X 20. Europe
-
22293650110 Norma Clamp. EuropeNorma Clamp. Europe
-
23414523600 Elbow Fitting. EuropeElbow Fitting. Europe
-
24707800219 Inlet Hose. EuropeInlet Hose. Europe
-
25707800220 Outlet Hose. EuropeOutlet Hose. Europe
-
26293650030 Oetiker Clamp. EuropeOetiker Clamp. Europe
-
27207682044 Hex. Flanged Screw M8 X 20. EuropeHex. Flanged Screw M8 X 20. Europe
-
28233281414 Hex Flanged Elastic Nut M8. EuropeHex Flanged Elastic Nut M8. Europe
-
29707800127 Carter Vent HoseCarter Vent Hose
-
30707800128 Carburetor Vent HoseCarburetor Vent Hose
-
31293650110 Norma ClampNorma Clamp
-
32570273900 GrommetGrommet
-
33414523600 Elbow FittingElbow Fitting
-
34707800227 Water DeflectorWater Deflector
-
35207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
37391302000 Flat WasherFlat Washer
-
38233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
39293250047 Neoprene SealNeoprene Seal
