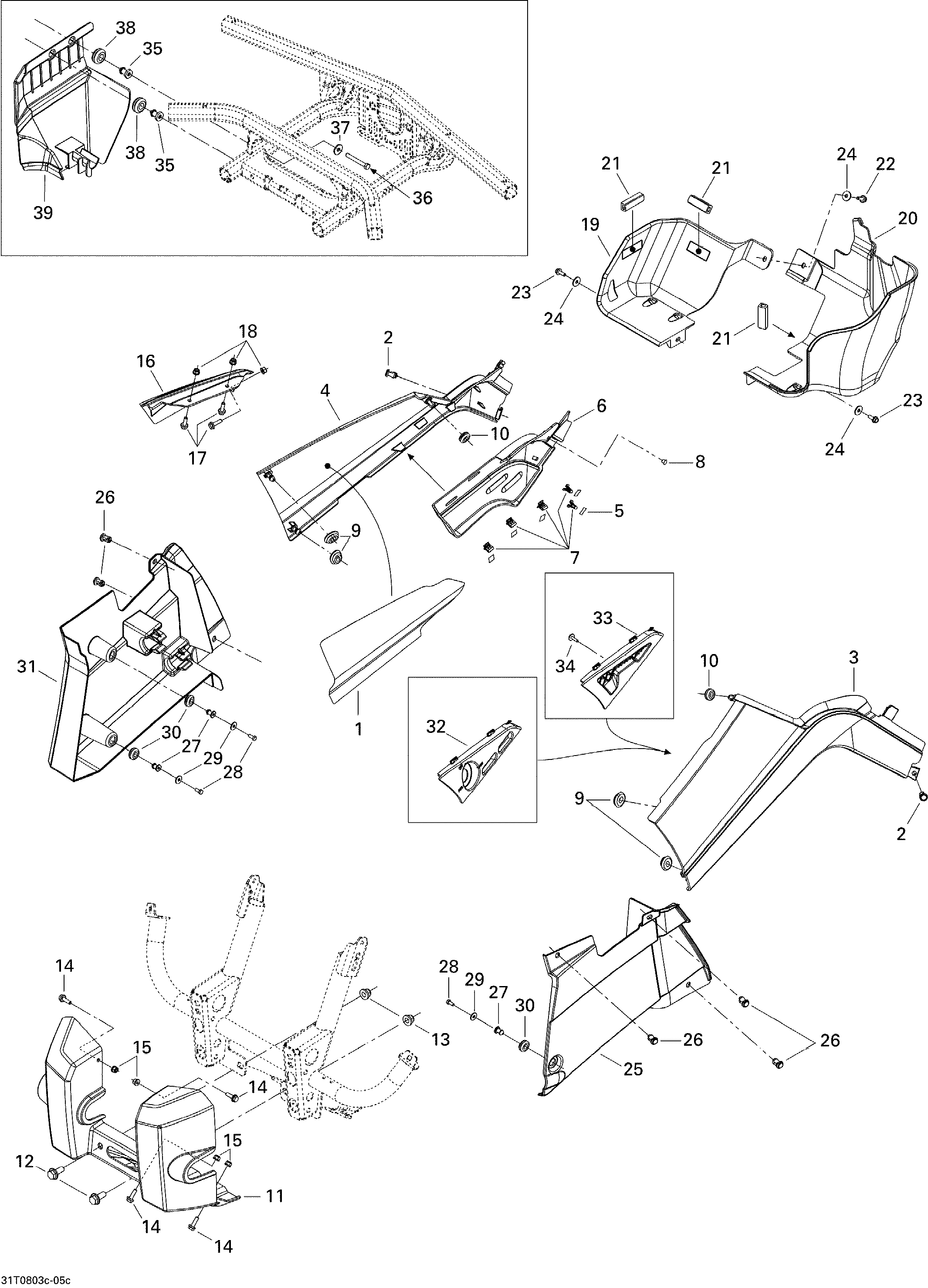

09- Body And Accessories 3, STD для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
1705000750 Reflective SheetReflective Sheet
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3705000438 LH Side Panel. Viper RedLH Side Panel. Viper Red
-
3705000751 LH Side Panel. Laurentian GreenLH Side Panel. Laurentian Green
-
3705000863 LH Side Panel. YellowLH Side Panel. Yellow
-
4705000439 RH Side Panel. Viper RedRH Side Panel. Viper Red
-
4705000752 RH Side Panel. Laurentian GreenRH Side Panel. Laurentian Green
-
4705000865 RH Side Panel. YellowRH Side Panel. Yellow
-
5705000809 Reflective SheetReflective Sheet
-
6705001685 Muffler CoverMuffler Cover
-
7517302785 ClipClip
-
8293830005 Rubber Plug, BlackRubber Plug, Black
-
9705005156 Oblong WasherOblong Washer
-
10705002149 GrommetGrommet
-
11705001530 Front Protection Plate. STDFront Protection Plate. STD
-
12207602544 Hex. Flanged Screw. STDHex. Flanged Screw. STD
-
13233201414 Hex Flanged Elastic NutHex Flanged Elastic Nut
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Flanged Elastic NutFlanged Elastic Nut
-
16705001529 Lever IndicatorLever Indicator
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Flanged Elastic NutFlanged Elastic Nut
-
19705000554 RH Tank ProtectorRH Tank Protector
-
20705002176 LH Tank ProtectorLH Tank Protector
-
21293200093 Neoprene SealNeoprene Seal
-
22207561644 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
23210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
24391302000 Flat WasherFlat Washer
-
25705000652 Side PanelSide Panel
-
26293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
27517303439 KnobKnob
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29391301600 WasherWasher
-
30293720053 GrommetGrommet
-
31705002640 Inner FenderInner Fender
-
32705001691 Valve SupportValve Support
