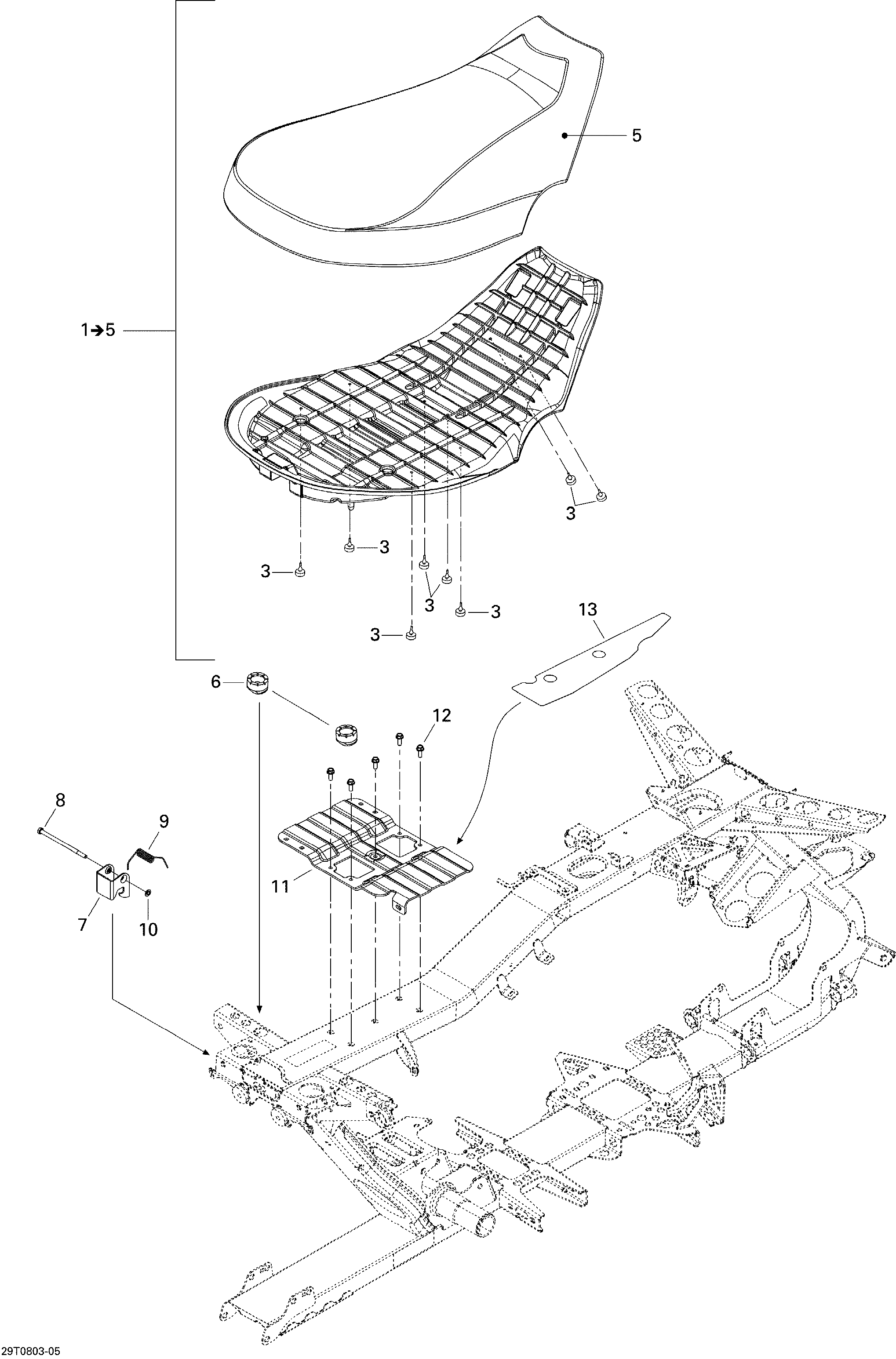

09- Seat для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
1708000505 Seat Ass'y. Includes 1 to 5Seat Ass'y. Includes 1 to 5
-
3708000125 Rubber StopperRubber Stopper
-
5708000474 Seat CoverSeat Cover
-
6708000323 Rubber BumperRubber Bumper
-
7708000144 Latch, BlackLatch, Black
-
8230061044 Hex Flanged Screw M8 X 110Hex Flanged Screw M8 X 110
-
9708000369 SpringSpring
-
10732610072 Push NutPush Nut
-
11708000511 Seat ReinforcementSeat Reinforcement
-
12210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
13708000198 Reflecting SheetReflecting Sheet
