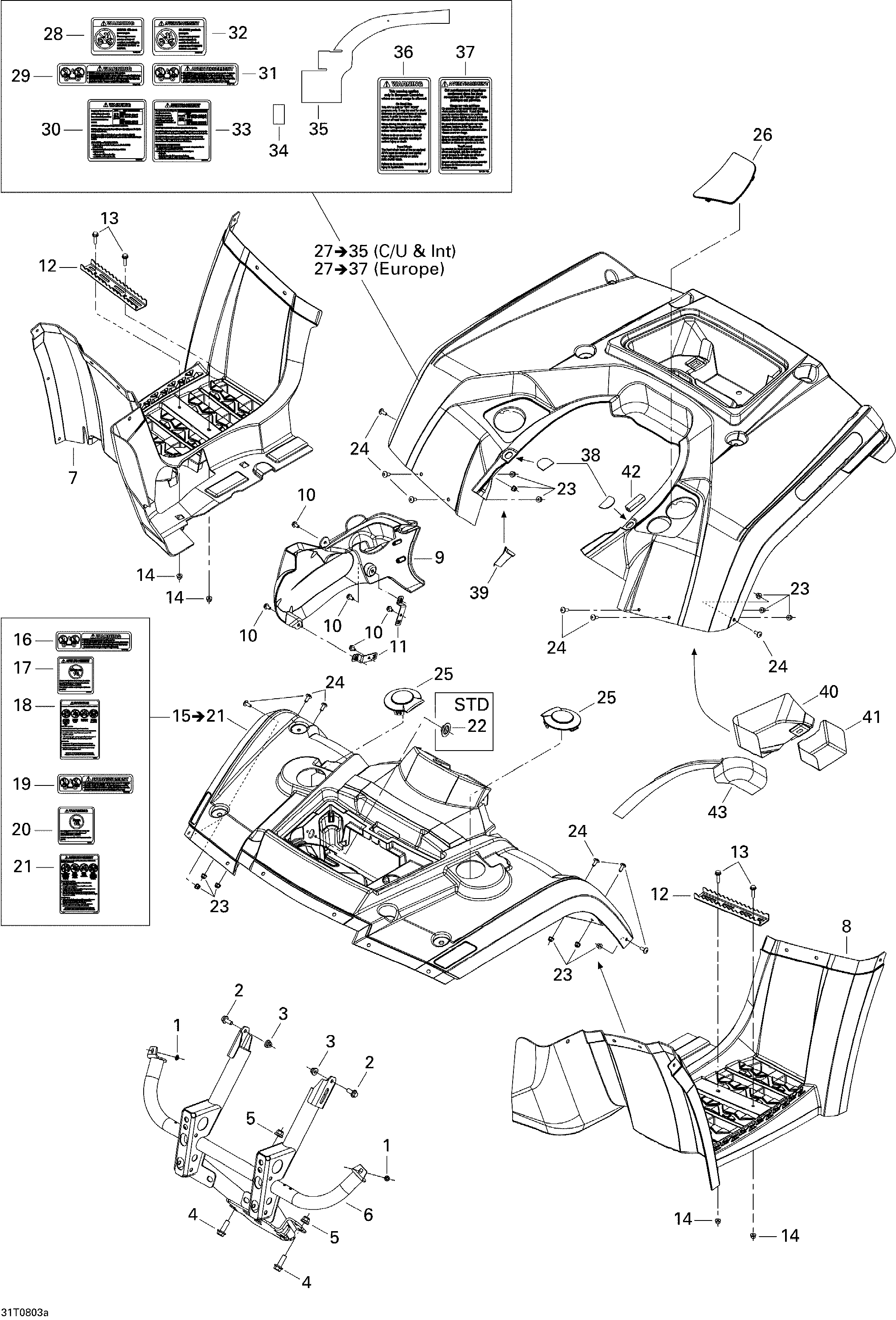

09- Body And Accessories 1, STD для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front BumperFront Bumper
-
7705001311 RH FootboardRH Footboard
-
8705001312 LH FootboardLH Footboard
-
9705001518 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705002666 Engine Cover SupportEngine Cover Support
-
12705000428 FootrestFootrest
-
13207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
15703500530 Red Front Fender. Includes 15 to 21, Viper RedRed Front Fender. Includes 15 to 21, Viper Red
-
15703500525 Yellow Front Fender. Includes 15 to 21, YellowYellow Front Fender. Includes 15 to 21, Yellow
-
15703500527 Green Front Fender. Includes 15 to 21, Laurentian GreenGreen Front Fender. Includes 15 to 21, Laurentian Green
-
16704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
17704900113 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
18704900112 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
19704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
20704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
21704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
22293000103 Plastic Cap. STDPlastic Cap. STD
-
23233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
24250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
25705001999 Front CapFront Cap
-
27703500568 Rear Fender Kit, Red. Includes 27 to 35, Viper RedRear Fender Kit, Red. Includes 27 to 35, Viper Red
-
27703500562 Rear Fender Kit, Red. Includes 27 to 37, Viper Red, EuropeRear Fender Kit, Red. Includes 27 to 37, Viper Red, Europe
-
27703500555 Rear Fender Kit, Yellow. Includes 27 to 35, YellowRear Fender Kit, Yellow. Includes 27 to 35, Yellow
-
27703500563 Rear Fender Kit, Yellow. Includes 27 to 37, Yellow, EuropeRear Fender Kit, Yellow. Includes 27 to 37, Yellow, Europe
-
27703500557 Rear Fender Kit, Green. Includes 27 to 35, Laurentian GreenRear Fender Kit, Green. Includes 27 to 35, Laurentian Green
-
27703500564 Rear Fender Kit, Green. Includes 27 to 37, Laurentian Green, EuropeRear Fender Kit, Green. Includes 27 to 37, Laurentian Green, Europe
-
28704900005 Warning Label, Passenger. English VersionWarning Label, Passenger. English Version
-
29704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
30704900882 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
31704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
32704900006 Warning Label, Passenger. French VersionWarning Label, Passenger. French Version
-
33704900883 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
34705000809 Reflective SheetReflective Sheet
-
35705002043 Reflective SheetReflective Sheet
-
36704901112 Warning Label, Road UseWarning Label, Road Use
-
37704901158 Warning Label, Road UseWarning Label, Road Use
-
38705002219 Rubber PadRubber Pad
-
39705000809 Reflective SheetReflective Sheet
-
40705002190 Reflective SheetReflective Sheet
-
41705002188 Reflective SheetReflective Sheet
-
42293200093 Neoprene SealNeoprene Seal
-
43705002043 Reflective SheetReflective Sheet
