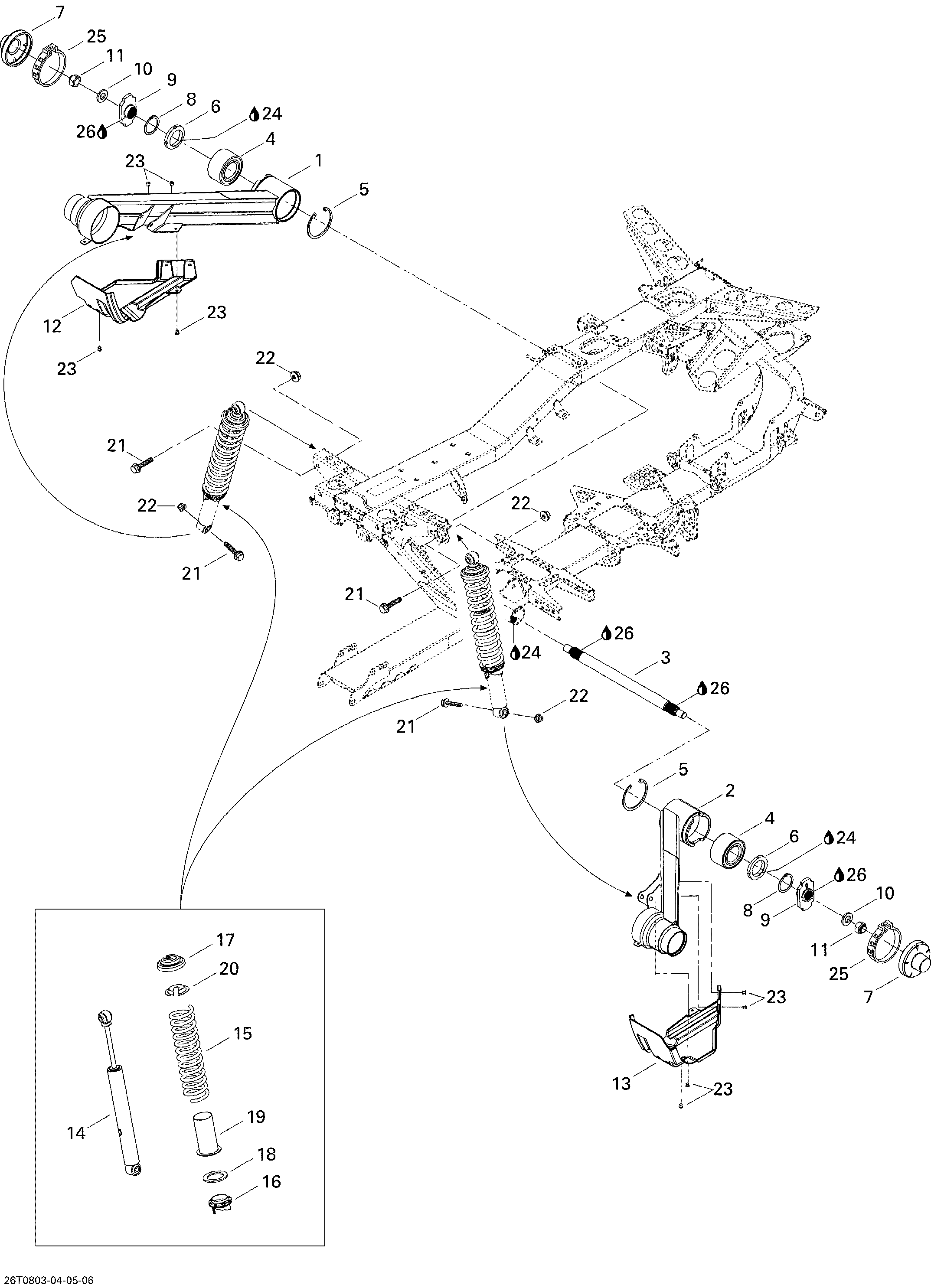

08- Rear Suspension для BRP Outlander MAX 400 EFI XT - 2008
-
№АртикулНазвание
-
1706000496 LH Swing ArmLH Swing Arm
-
2706000498 RH Swing ArmRH Swing Arm
-
3706000450 Sway BarSway Bar
-
4293350037 Ball BearingBall Bearing
-
5293370041 CirclipCirclip
-
6706000221 NutNut
-
7706000222 CoverCover
-
8293370027 Circlip 45 mmCirclip 45 mm
-
9706000548 LeverLever
-
10250200045 WasherWasher
-
11232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
12706000333 LH ProtectorLH Protector
-
13706000334 RH ProtectorRH Protector
-
14706000382 Rear ShockRear Shock
-
15706000465 Rear Spring, BlackRear Spring, Black
-
16706000294 Adjuster RingAdjuster Ring
-
17503191611 Spring StopperSpring Stopper
-
18706000533 Spring SeatSpring Seat
-
19503190436 ProtectorProtector
-
20503191610 CapCap
-
21207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
22233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293650162 Oetiker ClampOetiker Clamp
-
26293800005 Loctite 271, 10 mlLoctite 271, 10 ml
