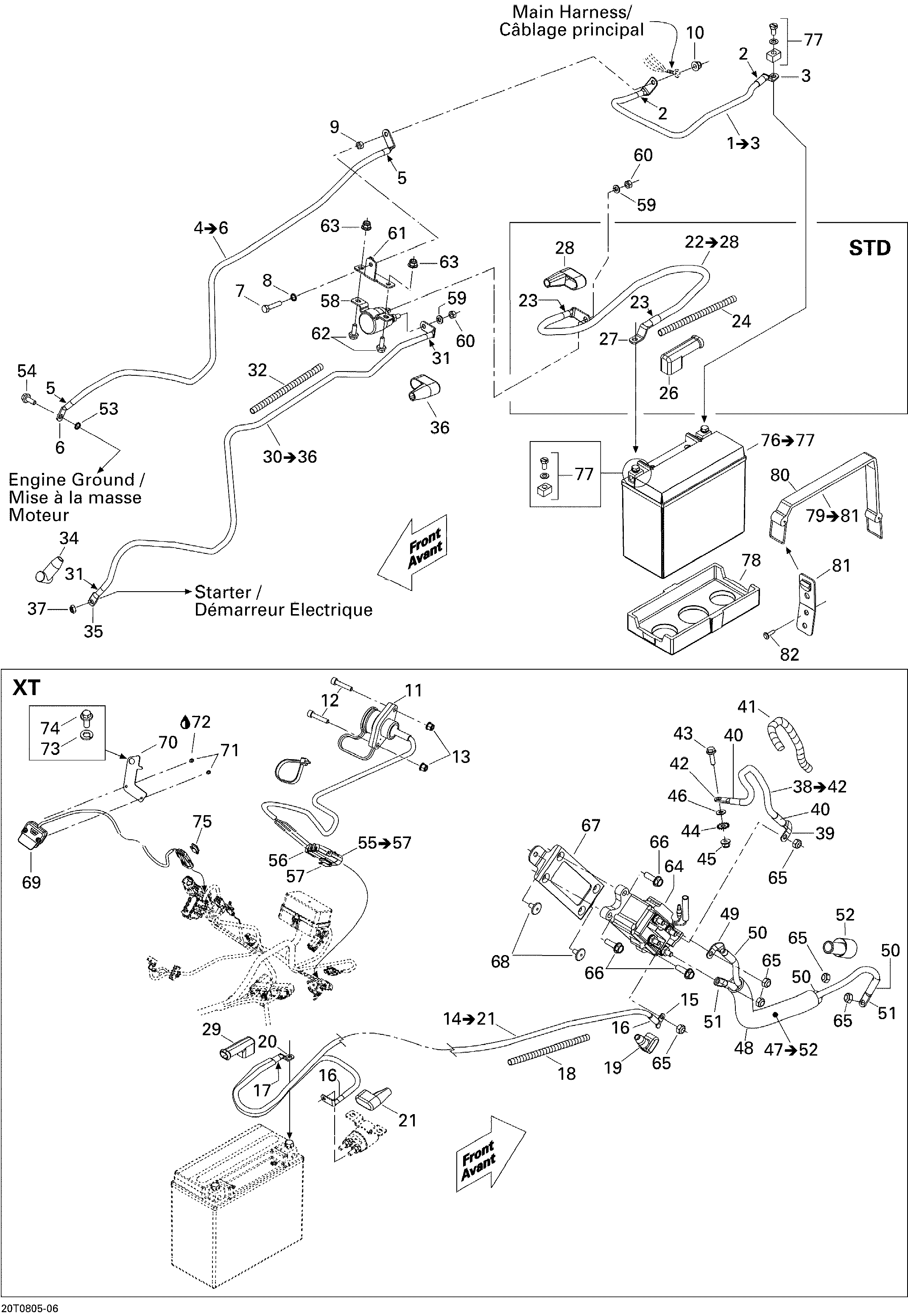

10- Electrical System XT для BRP Outlander MAX 400 EFI XT - 2008
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710001444 Ground Cable. Includes 4 to 6Ground Cable. Includes 4 to 6
-
5710000483 Shrink TubingShrink Tubing
-
6710000540 Open BarrelOpen Barrel
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11710001023 Winch Connector. XTWinch Connector. XT
-
12205052588 Socket Head Screw M5 X 25. XTSocket Head Screw M5 X 25. XT
-
13233251414 Hex. Flanged Elastic Nut M5. XTHex. Flanged Elastic Nut M5. XT
-
14710000843 Positive Cable. XT, Includes 14 to 21Positive Cable. XT, Includes 14 to 21
-
15710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
16710000483 Shrink Tubing. XTShrink Tubing. XT
-
17275500578 Shrink Tubing. XTShrink Tubing. XT
-
18710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
19710000522 Protector Cap. XTProtector Cap. XT
-
20710000519 Open Barrel. XTOpen Barrel. XT
-
21710000902 Protector Cap. XTProtector Cap. XT
-
29710000516 Protector Cap. XTProtector Cap. XT
-
30710000381 Module. Includes 30 to 36Module. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
34710000526 Protector CapProtector Cap
-
35710000530 Open BarrelOpen Barrel
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. XT, Includes 38 to 42Negative Cable. XT, Includes 38 to 42
-
39710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
40710000483 Shrink Tubing. XTShrink Tubing. XT
-
41710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
42710000530 Open Barrel. XTOpen Barrel. XT
-
43207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
44250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
45233261414 Hex. Flanged Elastic Nut M6. XTHex. Flanged Elastic Nut M6. XT
-
46224061121 Flat Washer. XTFlat Washer. XT
-
47710001251 Winch Cables. XT, Includes 47 to 52Winch Cables. XT, Includes 47 to 52
-
48409901600 Tubing, 19 mm. XTTubing, 19 mm. XT
-
49710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
50710000483 Shrink Tubing. XTShrink Tubing. XT
-
51710000530 Open Barrel. XTOpen Barrel. XT
-
52515175919 Protector Cap. XTProtector Cap. XT
-
53234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
54207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
55710001059 Connector Ass'y. XT, Includes 55 to 57Connector Ass'y. XT, Includes 55 to 57
-
56278000281 Female Terminal Housing, 3 Circuits. XTFemale Terminal Housing, 3 Circuits. XT
-
57710000992 Clip. XTClip. XT
-
58710001364 Starter RelayStarter Relay
-
59234161601 Lock Washer Helical M6Lock Washer Helical M6
-
60232061600 Hex. Nut M6Hex. Nut M6
-
61710001260 Solenoid SupportSolenoid Support
-
62207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
63233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
64710001000 Winch Solenoid. XTWinch Solenoid. XT
-
65232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
66210262080 Hex. Forming Screw M6 X 20. XTHex. Forming Screw M6 X 20. XT
-
67710001261 Relay Support. XTRelay Support. XT
-
68390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
69710001001 Winch Interrupter. XTWinch Interrupter. XT
-
70710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
71250000153 Hex. Cap Screw 6-32 X 1/4''. XTHex. Cap Screw 6-32 X 1/4''. XT
-
72293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
73234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
74250000029 Hex. Screw M10 X 16. XTHex. Screw M10 X 16. XT
-
75409014200 Clip. XTClip. XT
-
76410301203 Battery, 18 Amperes. Includes 76 to 77Battery, 18 Amperes. Includes 76 to 77
-
77295500849 Battery Fastener KitBattery Fastener Kit
-
78710000279 Insulator PadInsulator Pad
-
79710001033 Strap Ass'y. Includes 79 to 81Strap Ass'y. Includes 79 to 81
-
80293850097 Rubber StrapRubber Strap
-
81293850030 Strap ClipStrap Clip
-
82390402400 Pop Rivet 3/16''Pop Rivet 3/16''
