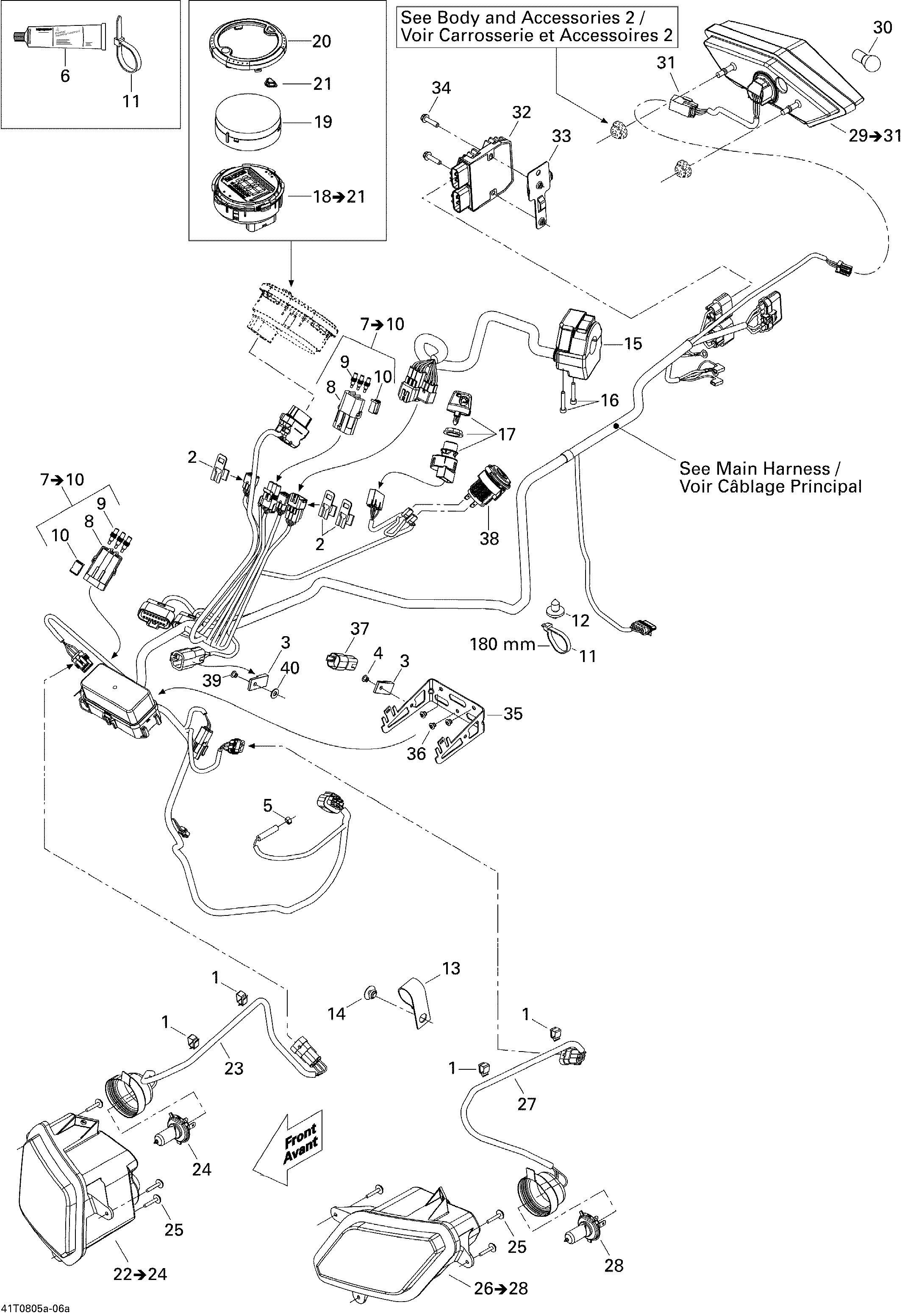

10- Electrical Accessories XT для BRP Outlander MAX 400 EFI XT - 2008
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
11293750041 Tie-rap 627 mmTie-rap 627 mm
-
12293730018 Mount DartMount Dart
-
13705600311 ClampClamp
-
14390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
15710000791 Multi-fonction HandleMulti-fonction Handle
-
16205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
17710001207 Ingnition SwitchIngnition Switch
-
18710001472 Speedometer. Includes 18 to 21Speedometer. Includes 18 to 21
-
19415129320 LensLens
-
20710001416 Trim RingTrim Ring
-
21710001473 ButtonButton
-
22710000697 RH Headlamp. Includes 22 to 24RH Headlamp. Includes 22 to 24
-
23710000828 Light HarnessLight Harness
-
24710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
25250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
26710000641 LH Headlamp. Includes 26 to 28LH Headlamp. Includes 26 to 28
-
27710000828 Light HarnessLight Harness
-
28710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
29710001203 Tail Light Housing. Includes 29 to 31Tail Light Housing. Includes 29 to 31
-
30410504100 Tail Light BulbTail Light Bulb
-
31515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
32710001103 Voltage RegulatorVoltage Regulator
-
33710001262 Rectifier SupportRectifier Support
-
34210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
35710001263 Fuse SupportFuse Support
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
38710001248 Outlet DCOutlet DC
-
39390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
40391301700 WasherWasher
