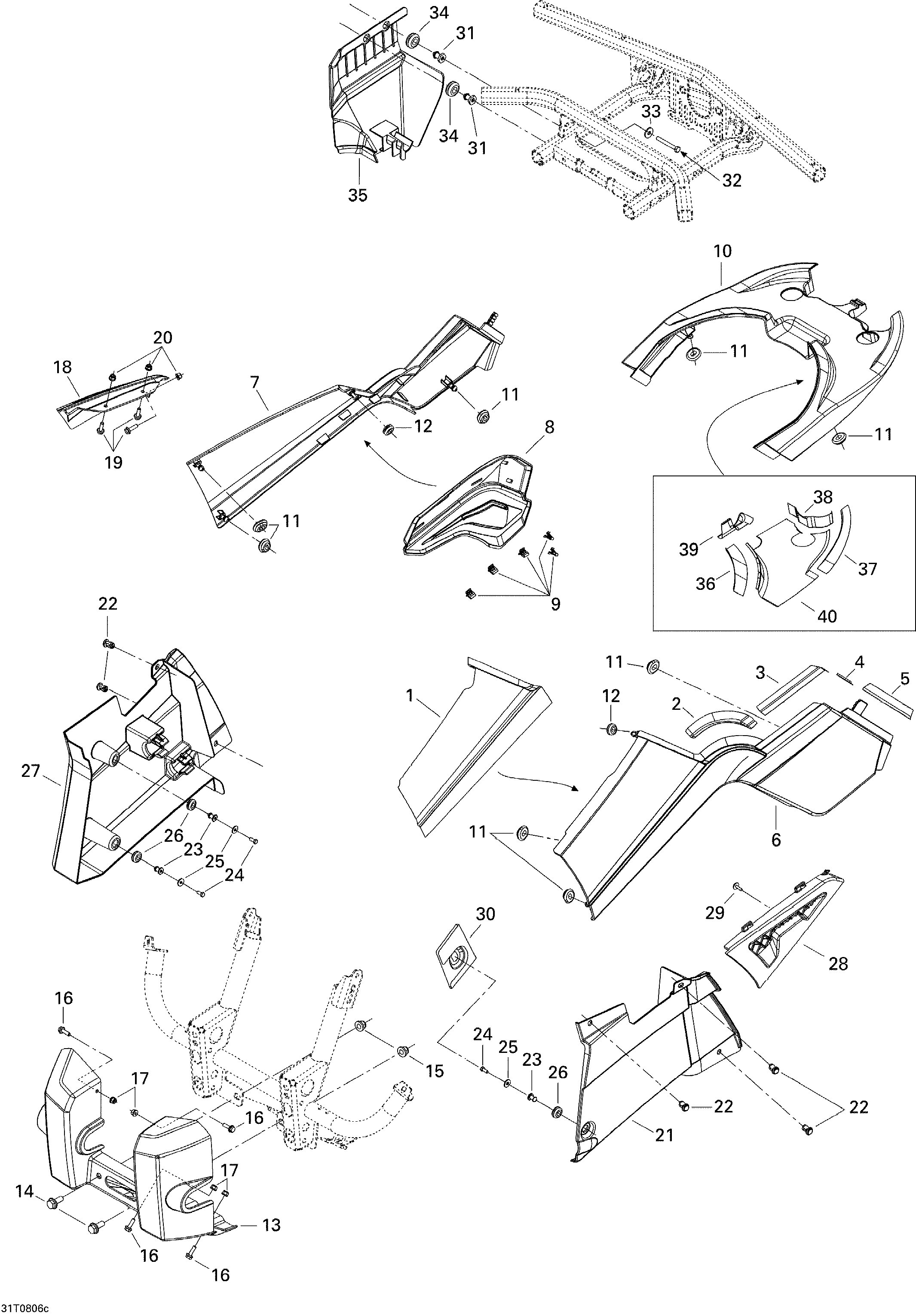

09- Body And Accessories 3, XT для BRP Outlander MAX 400 EFI XT - 2008
-
№АртикулНазвание
-
1705002491 Reflective SheetReflective Sheet
-
2705003004 Reflective SheetReflective Sheet
-
3705003005 Reflective SheetReflective Sheet
-
4705003033 Reflective SheetReflective Sheet
-
5705003034 Reflective SheetReflective Sheet
-
6705000914 LH Panel, Viper Red. Viper RedLH Panel, Viper Red. Viper Red
-
6705000915 LH Panel, Laurentian Green. Laurentian GreenLH Panel, Laurentian Green. Laurentian Green
-
6705000916 LH Panel, Yellow. YellowLH Panel, Yellow. Yellow
-
7705002878 RH Panel, Viper Red. Viper RedRH Panel, Viper Red. Viper Red
-
7705002879 RH Panel, Laurentian Green. Laurentian GreenRH Panel, Laurentian Green. Laurentian Green
-
7705002880 RH Panel, Yellow. YellowRH Panel, Yellow. Yellow
-
8705002664 Muffler CoverMuffler Cover
-
9517302785 ClipClip
-
10705001947 Storage Tray, Red. Viper RedStorage Tray, Red. Viper Red
-
10705002119 Storage Tray, Yellow. YellowStorage Tray, Yellow. Yellow
-
10705002120 Storage Tray, Green. Laurentian GreenStorage Tray, Green. Laurentian Green
-
11705005156 Oblong WasherOblong Washer
-
12705002149 GrommetGrommet
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18705001529 Lever IndicatorLever Indicator
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21705000652 Side PanelSide Panel
-
22293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
23517303439 KnobKnob
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25391301600 WasherWasher
-
26293720053 GrommetGrommet
-
27705002640 Inner FenderInner Fender
-
28705002493 Console CapConsole Cap
-
29250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
30705002492 Reflective SheetReflective Sheet
-
31517303439 KnobKnob
-
32241055030 Hex. Screw K50 X 50Hex. Screw K50 X 50
-
33391301600 WasherWasher
-
34293720053 GrommetGrommet
-
35705002264 Wire CoverWire Cover
-
36705003082 Reflective SheetReflective Sheet
-
37705003083 Reflective SheetReflective Sheet
-
38705003084 Reflective SheetReflective Sheet
-
39705003085 Reflective SheetReflective Sheet
-
40705003086 Reflective SheetReflective Sheet
