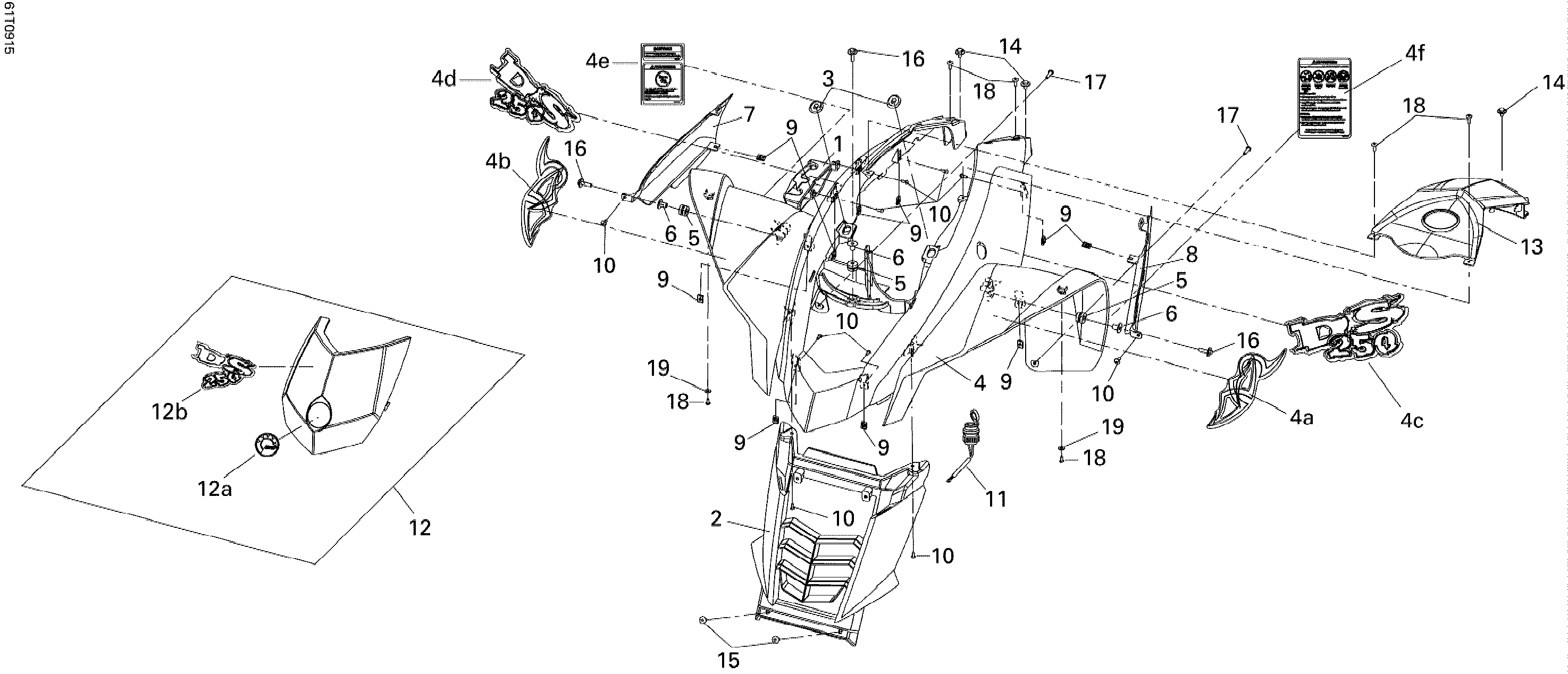

09- Front Fender для BRP DS 250 NA, CE & INT - 2009
-
№АртикулНазвание
-
1S46220RCA000 Shift Lever CoverShift Lever Cover
-
2S50611RCA000 Radiator GrillRadiator Grill
-
3S61105RCA000 GrometGromet
-
4S6110GRCA900 Front Fender (White). EuropeFront Fender (White). Europe
-
4S6110GRCC900 Front Fender (White). InternationalFront Fender (White). International
-
4S6110GRCA700 Front Fender. North America, Yellow ModelFront Fender. North America, Yellow Model
-
4S6110GRCB900 Front Fender (White). North America, White ModelFront Fender (White). North America, White Model
-
4aS87134RCA000 LH Front Fender Decal. North America, Yellow ModelLH Front Fender Decal. North America, Yellow Model
-
4aS87134RCA900 LH Front Fender Decal. White ModelLH Front Fender Decal. White Model
-
4bS87135RCA000 RH Front Fender Decal. North America, Yellow ModelRH Front Fender Decal. North America, Yellow Model
-
4bS87135RCA900 RH Front Fender Decal. White ModelRH Front Fender Decal. White Model
-
4cS87136RCA700 LH Front Decal, DS 250. North America, Yellow ModelLH Front Decal, DS 250. North America, Yellow Model
-
4cS87136RCA900 LH Front Decal, DS 250. White ModelLH Front Decal, DS 250. White Model
-
4dS87137RCA700 RH Front Decal, DS 250. North America, Yellow ModelRH Front Decal, DS 250. North America, Yellow Model
-
4dS87137RCA900 RH Front Decal, DS 250. White ModelRH Front Decal, DS 250. White Model
-
4eS8750ARCA000 Warning Label, Under 16 Years. North America, Yellow ModelWarning Label, Under 16 Years. North America, Yellow Model
-
4eS8750ARCA000 Warning Label, Under 16 Years. White ModelWarning Label, Under 16 Years. White Model
-
4fS87501RCA000 Warning Label, Death And Injury. North America, Yellow ModelWarning Label, Death And Injury. North America, Yellow Model
-
4fS87501RCA900 Warning Label, Death And Injury. White ModelWarning Label, Death And Injury. White Model
-
4gS87138RCA900 LH Front Fender Decal. Not Shown, White ModelLH Front Fender Decal. Not Shown, White Model
-
4hS87139RCA900 RH Front Fender Decal. Not Shown, White ModelRH Front Fender Decal. Not Shown, White Model
-
5S80103X01000 Rubber WasherRubber Washer
-
6S80104X01000 Fender CollarFender Collar
-
7S83520RCA000 RH Side PannelRH Side Pannel
-
8S83620RCA000 LH Side PannelLH Side Pannel
-
9S90302V02000 Clip NutClip Nut
-
10S9390332280 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
11S38600RA1000 DC Power Outlet, 12 VoltsDC Power Outlet, 12 Volts
-
12S6430GRCA900 Radiator Cover. White ModelRadiator Cover. White Model
-
12S6430GRCA000 Radiator Cover Ass'y. North America, Yellow ModelRadiator Cover Ass'y. North America, Yellow Model
-
12aS87500RCA000 BRP LogoBRP Logo
-
12bS87130RCA900 DS250 DecalDS250 Decal
-
13S43020RCA000 Fuel Tank CoverFuel Tank Cover
-
14S934040601407 Washer BoltWasher Bolt
-
15S90164RCA000 Special ScrewSpecial Screw
-
16S934040602507 Washer BoltWasher Bolt
-
17S9390344380 Tapping Screw. Europe, North AmericaTapping Screw. Europe, North America
-
17S90119G03900 Screw Washer. InternationalScrew Washer. International
-
18S9390345380 Taping Screw M5 X 16. Europe, North AmericaTaping Screw M5 X 16. Europe, North America
-
18S9390335280 Tapping Screw M5 X 12. InternationalTapping Screw M5 X 12. International
-
19S9411105800 Spring Washer 5 mmSpring Washer 5 mm
