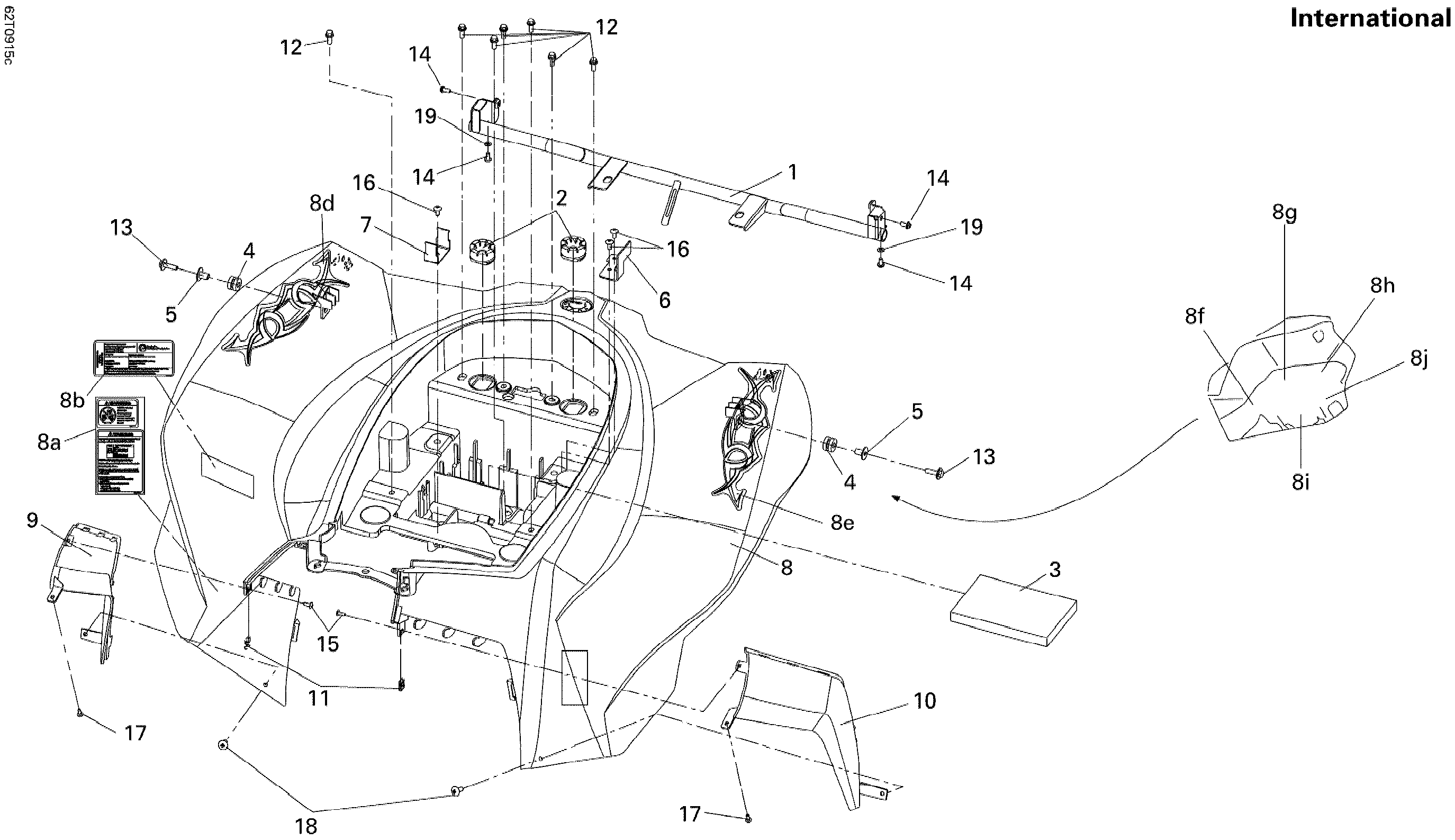

09- Rear Fender International для BRP DS 250 NA, CE & INT - 2009
-
№АртикулНазвание
-
1S50530RCB000 Rear Fender SupportRear Fender Support
-
2S77212RCA000 Rubber CushionRubber Cushion
-
3S80108RCA000 Sponge RubberSponge Rubber
-
4S80103X01000 Rubber WasherRubber Washer
-
5S80104X01000 Fender CollarFender Collar
-
6S80107RCA000 CDI StayCDI Stay
-
7S80109RB1000 StayStay
-
8S8010GRCC910 Rear Fender (White)(With Decals and Reflective Sheet)Rear Fender (White)(With Decals and Reflective Sheet)
-
8aS8750BRCA000 Warning Label BWarning Label B
-
8bS87506RCA000 International Warning DecalInternational Warning Decal
-
8cS87514RCA900 EPA Label. Not ShownEPA Label. Not Shown
-
8dS87132RCA900 LH Rear Fender DecalLH Rear Fender Decal
-
8eS87133RCA900 RH Rear Fender DecalRH Rear Fender Decal
-
8fS80111RCA000 Reflective Sheet AReflective Sheet A
-
8gS80112RCA000 Reflective Sheet BReflective Sheet B
-
8hS80113RCA000 Reflective Sheet CReflective Sheet C
-
8iS80114RCA000 Reflective Sheet DReflective Sheet D
-
8jS80115RCA000 Reflective Sheet EReflective Sheet E
-
9S83525RCA000 RH Side CoverRH Side Cover
-
10S83625RCA000 LH Side CoverLH Side Cover
-
11S90302V02000 Clip NutClip Nut
-
12S934020501207 Washer Bolt M5 X 12Washer Bolt M5 X 12
-
13S934040602507 Washer BoltWasher Bolt
-
14S938910501207 Flanged Bolt M5 X 12Flanged Bolt M5 X 12
-
15S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
16S9390335280 Tapping Screw M5 X 12Tapping Screw M5 X 12
-
17S9390344380 Tapping ScrewTapping Screw
-
18S90119G03900 Screw WasherScrew Washer
-
19S9411105800 Spring Washer 5 mmSpring Washer 5 mm
