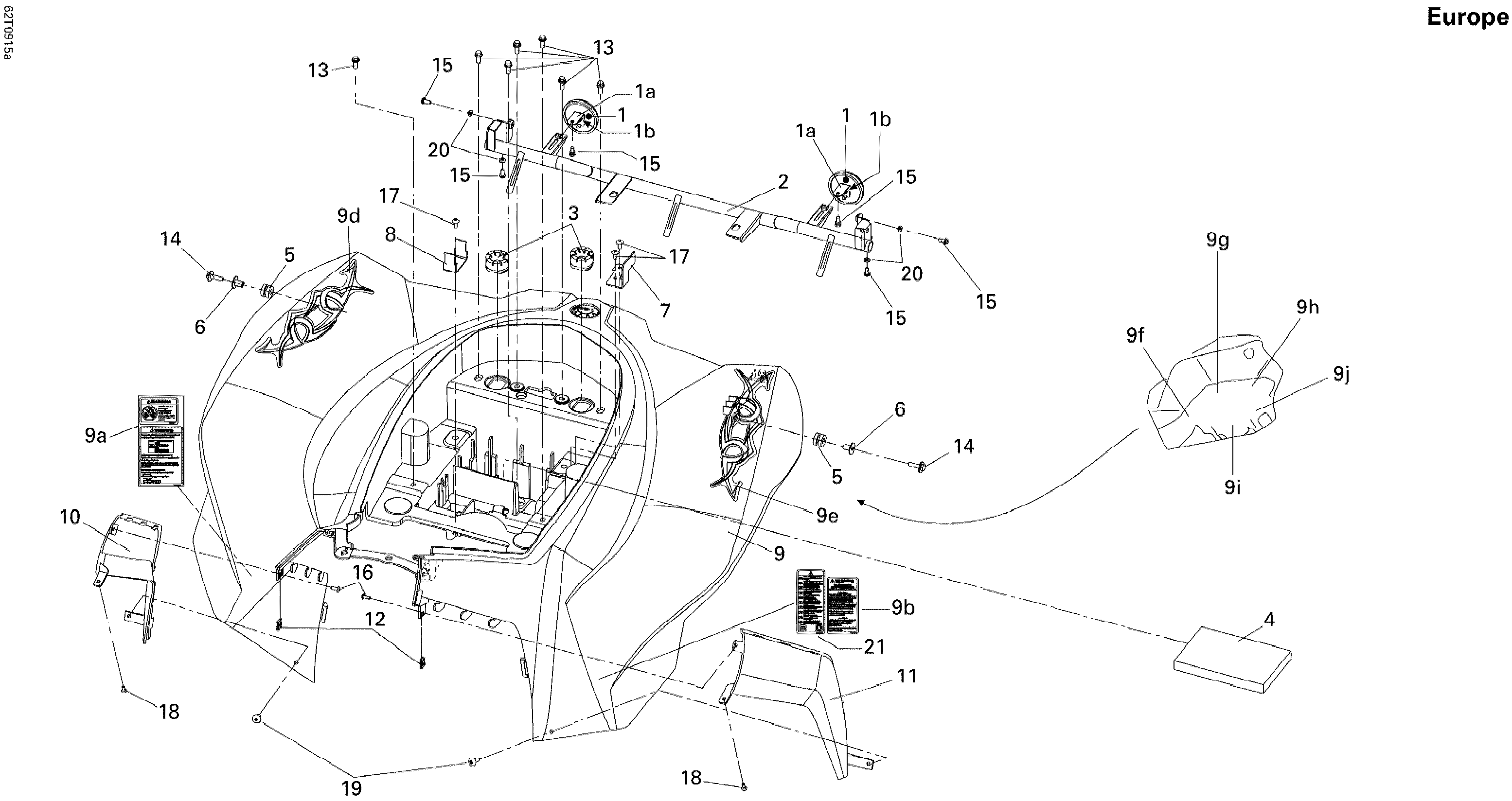

09- Rear Fender Europe для BRP DS 250 NA, CE & INT - 2009
-
№АртикулНазвание
-
1S33742TAP000 ReflectorReflector
-
1aS50351RCA000 Reflector BracketReflector Bracket
-
1bS9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
2S50530RCA000 Rear Fender SupportRear Fender Support
-
3S77212RCA000 Rubber CushionRubber Cushion
-
4S80108RCA000 Sponge RubberSponge Rubber
-
5S80103X01000 Rubber WasherRubber Washer
-
6S80104X01000 Fender CollarFender Collar
-
7S80107RCA000 CDI StayCDI Stay
-
8S80109RB1000 StayStay
-
9S8010GRCA900 Rear Fender Ass'y (White)(With Decals and Reflective Sheet)Rear Fender Ass'y (White)(With Decals and Reflective Sheet)
-
9aS8750BRCA000 Warning Label BWarning Label B
-
9bS87506RCA000 International Warning DecalInternational Warning Decal
-
9dS87133RCA900 RH Rear Fender DecalRH Rear Fender Decal
-
9eS87132RCA900 LH Rear Fender DecalLH Rear Fender Decal
-
9fS80111RCA000 Reflective Sheet AReflective Sheet A
-
9gS80112RCA000 Reflective Sheet BReflective Sheet B
-
9hS80113RCA000 Reflective Sheet CReflective Sheet C
-
9iS80114RCA000 Reflective Sheet DReflective Sheet D
-
9jS80115RCA000 Reflective Sheet EReflective Sheet E
-
10S83525RCA000 RH Side CoverRH Side Cover
-
11S83625RCA000 LH Side CoverLH Side Cover
-
12S90302V02000 Clip NutClip Nut
-
13S934040602007 Washer BoltWasher Bolt
-
14S934040602507 Washer BoltWasher Bolt
-
15S938910501207 Flanged Bolt M5 X 12Flanged Bolt M5 X 12
-
16S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
17S9390335280 Tapping Screw M5 X 12Tapping Screw M5 X 12
-
18S9390344380 Tapping ScrewTapping Screw
-
19S90199G03000 Washer Screw M5 X 22Washer Screw M5 X 22
-
20S9411105800 Spring Washer 5 mmSpring Washer 5 mm
-
21S87507RCA000 Mutiligual LabelMutiligual Label
