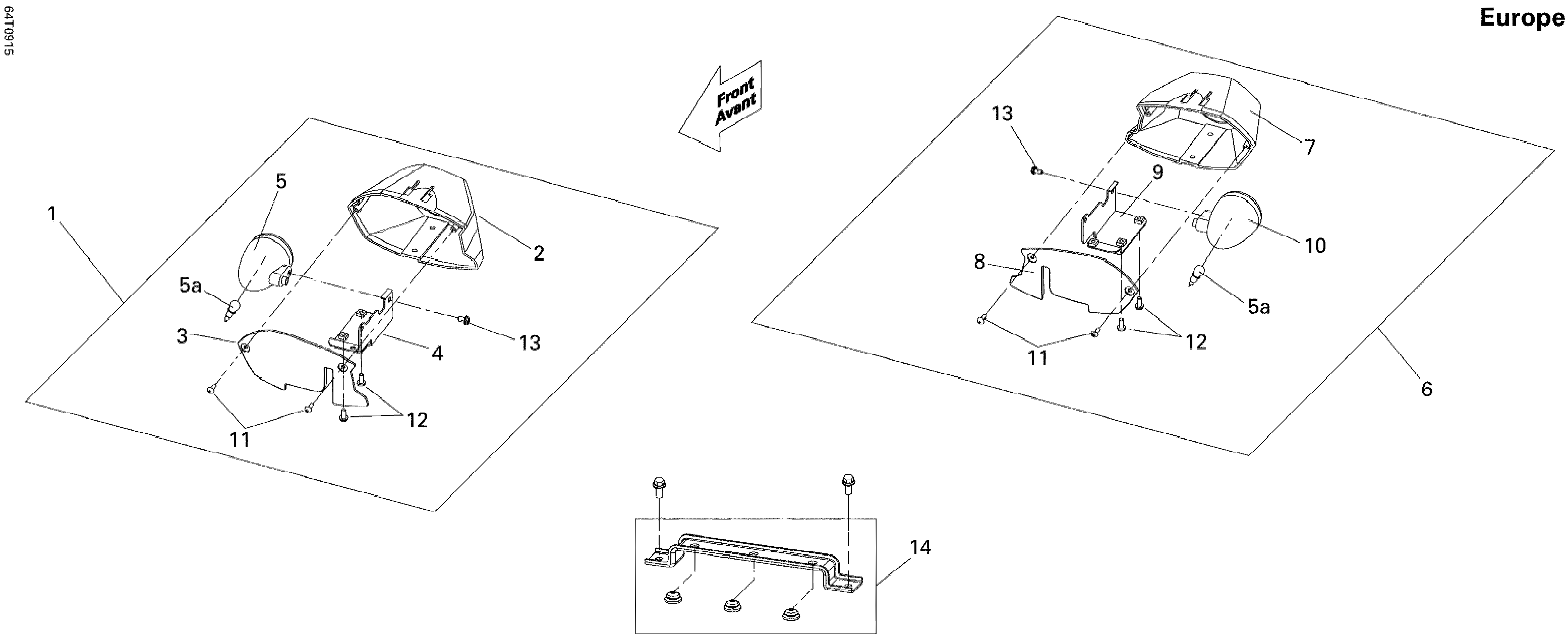

10- Flasher Lights Europe для BRP DS 250 NA, CE & INT - 2009
-
№АртикулНазвание
-
2S83440RCA000 RH Rear Winker ShroudRH Rear Winker Shroud
-
3S83441RCA000 RH Rear Winker PlateRH Rear Winker Plate
-
4S83445RCA000 RH Rear Winker SupportRH Rear Winker Support
-
5S33600RCA900 RH Rear WinkerRH Rear Winker
-
5aS34905RCA000 Flasher Light Bulb, 21 WattsFlasher Light Bulb, 21 Watts
-
7S83450RCA000 LH Rear Winker ShroudLH Rear Winker Shroud
-
8S83451RCA000 LH Rear Winker PlateLH Rear Winker Plate
-
9S83455RCA000 LH Rear Winker SupportLH Rear Winker Support
-
10S33650RCA900 LH Rear WinkerLH Rear Winker
-
11S938920501007 Washer Screw M5 X 10Washer Screw M5 X 10
-
12S9390334380 Tapping Screw M4 X 12Tapping Screw M4 X 12
-
13S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
14S5032ARCA000 Battery BandBattery Band
