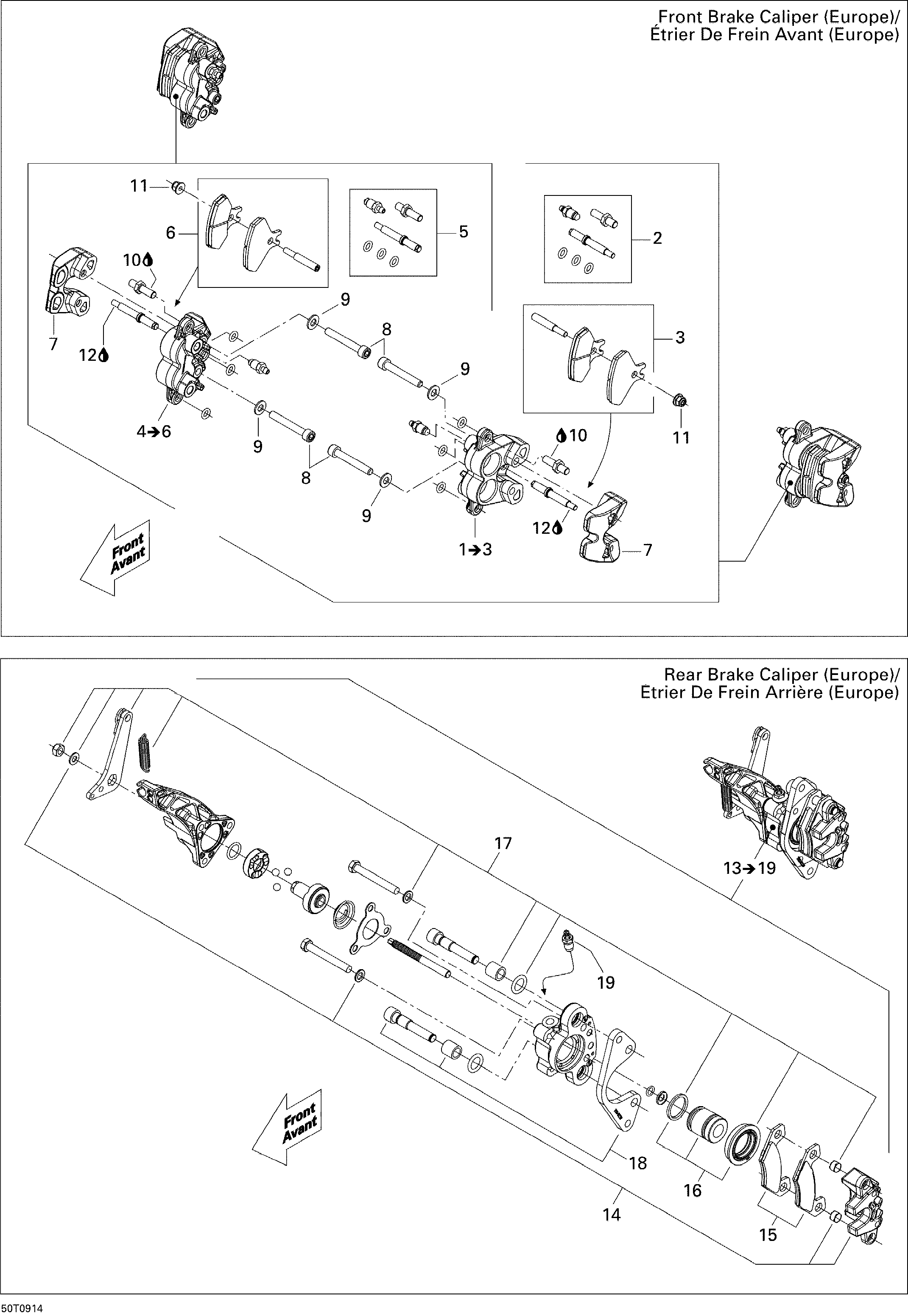

06- Brake Caliper для BRP DS 450 CE STD & X (3F9D,3G9D) - 2009

-
№АртикулНазвание
-
1705600401 LH Front Caliper Ass'y. Includes 1 to 3LH Front Caliper Ass'y. Includes 1 to 3
-
2705600425 Pin Slide KitPin Slide Kit
-
3705600402 Front Brake Pad KitFront Brake Pad Kit
-
4705600404 RH Front Caliper Ass'y. Includes 4 to 6RH Front Caliper Ass'y. Includes 4 to 6
-
5705600425 Pin Slide KitPin Slide Kit
-
6705600402 Front Brake Pad KitFront Brake Pad Kit
-
7705600560 Outer CaliperOuter Caliper
-
8205085534 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
9234081430 Flat Washer M8Flat Washer M8
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13705600657 Rear Caliper Ass'y. Includes 13 to 19Rear Caliper Ass'y. Includes 13 to 19
-
14705600658 Anvil KitAnvil Kit
-
15705600711 Brake Pad KitBrake Pad Kit
-
16705600668 Pistont KitPistont Kit
-
17705600667 Hardware KitHardware Kit
-
18705600685 Support KitSupport Kit
-
19705600686 Bleeder KitBleeder Kit
