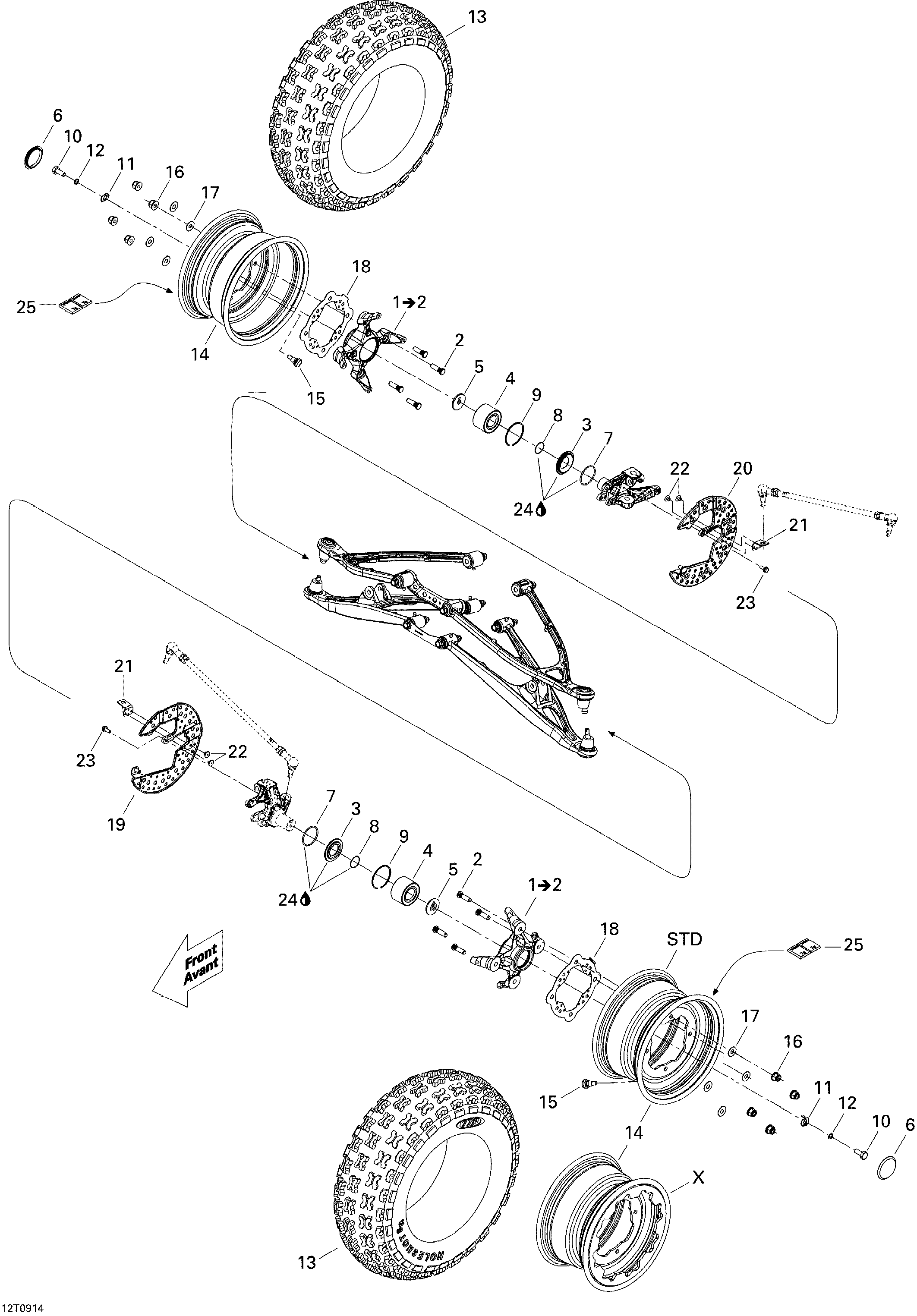

07- Drive System, Front для BRP DS 450 CE STD & X (3F9D,3G9D) - 2009
-
№АртикулНазвание
-
1705400368 Wheel Hub Ass'y. Includes 1 to 2Wheel Hub Ass'y. Includes 1 to 2
-
2250000138 Wheel StudWheel Stud
-
3705400371 Support RingSupport Ring
-
4293350040 Cone BearingCone Bearing
-
5705400722 WasherWasher
-
6705400405 CapCap
-
7293300113 O-RingO-Ring
-
8293300114 O-RingO-Ring
-
9293370019 CirclipCirclip
-
10207102534 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
11705400373 Lock WasherLock Washer
-
12250200103 Flat WasherFlat Washer
-
13705400640 Front TireFront Tire
-
14705400375 Front Rim. STDFront Rim. STD
-
14705400428 Front Rim. XFront Rim. X
-
15705400193 Rim ValveRim Valve
-
16250100105 Flanged Nut M10Flanged Nut M10
-
17250200080 Flat WasherFlat Washer
-
18705400572 Exterior DiskExterior Disk
-
19705400573 LH Interior DISKLH Interior DISK
-
20705400576 RH Interior DISKRH Interior DISK
-
21705400603 Disk SupportDisk Support
-
22293150103 Pop RivetPop Rivet
-
23207561634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
24293550019 Grease, 60 GGrease, 60 G
-
25705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
