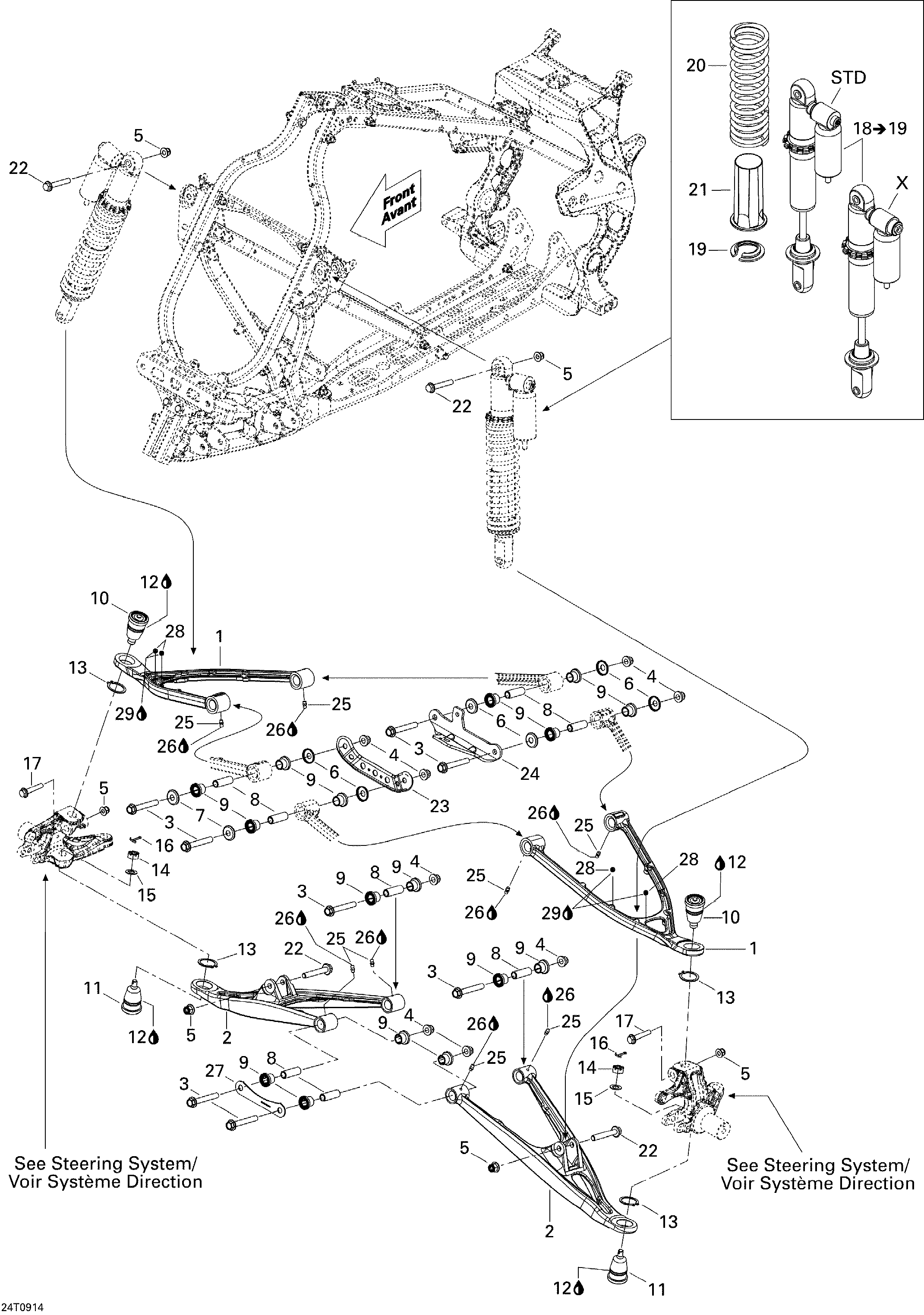

07- Front Suspension для BRP DS 450 CE STD & X (3F9D,3G9D) - 2009
-
№АртикулНазвание
-
1706200454 Upper ArmUpper Arm
-
2706200456 Lower ArmLower Arm
-
3207607036 Hex. Flanged ScrewHex. Flanged Screw
-
4233201436 Flanged Elastic NutFlanged Elastic Nut
-
5233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
6706200479 WasherWasher
-
7234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
8706200678 Inner BushingInner Bushing
-
9706200181 CushionCushion
-
10706200462 Upper Ball JointUpper Ball Joint
-
11706200461 Lower Ball JointLower Ball Joint
-
12413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
13293370009 Circlip 32 mmCirclip 32 mm
-
14250100094 Castle NutCastle Nut
-
15250200084 Flat WasherFlat Washer
-
16250400035 Cotter PinCotter Pin
-
17207605534 Hex. Flanged ScrewHex. Flanged Screw
-
18706200518 Front Shock. Includes 18 to 19, STDFront Shock. Includes 18 to 19, STD
-
18706200531 Front Shock. Includes 18 to 19, XFront Shock. Includes 18 to 19, X
-
19706200481 SpringSpring
-
20706000528 Spring StopperSpring Stopper
-
21706200645 Rod ProtectorRod Protector
-
22207606534 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
23706200532 Front Suspension Upper PlateFront Suspension Upper Plate
-
24709400679 Front Suspension Upper PlateFront Suspension Upper Plate
-
25250000315 Grease FittingGrease Fitting
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27706200722 Front Suspension Lower PlateFront Suspension Lower Plate
-
28206260699 Socket Set Screw M6 X 6Socket Set Screw M6 X 6
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
