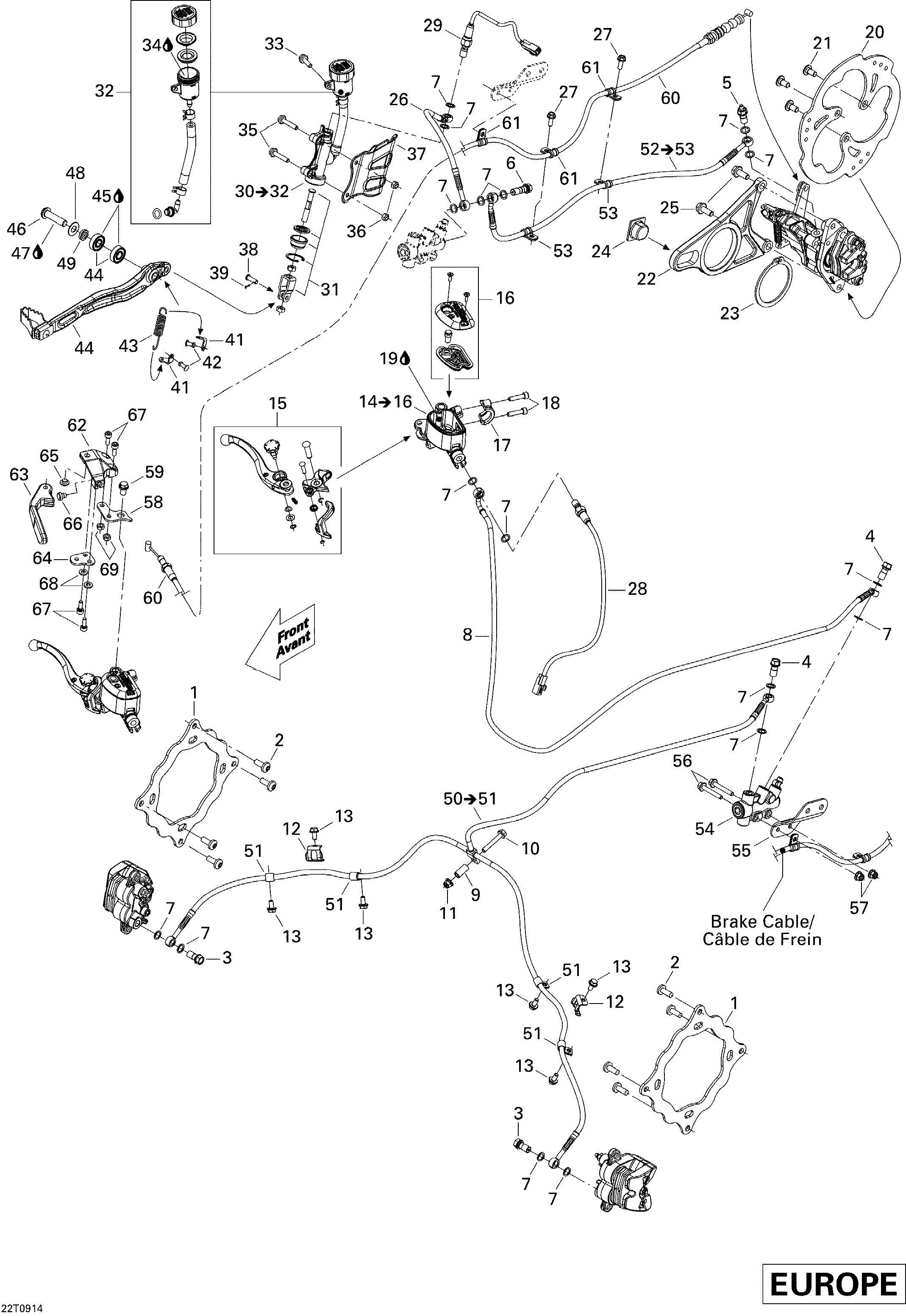

06- Hydraulic Brakes для BRP DS 450 CE STD & X (3F9D,3G9D) - 2009
-
№АртикулНазвание
-
1705600400 Front Brake DiscFront Brake Disc
-
2250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
3705600628 Banjo BoltBanjo Bolt
-
4705600609 Banjo BoltBanjo Bolt
-
5705600680 Screw BleederScrew Bleeder
-
6705600612 Banjo BoltBanjo Bolt
-
7705600310 Copper WasherCopper Washer
-
8705600615 Front Lever Brake Hose Ass'yFront Lever Brake Hose Ass'y
-
9512059812 SpacerSpacer
-
10207664034 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12705600553 Hose HolderHose Holder
-
13207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
14705600409 Cylinder Master Ass'y. Includes 14 to 16Cylinder Master Ass'y. Includes 14 to 16
-
15705600491 Brake Lever KitBrake Lever Kit
-
16705600493 Cap SetCap Set
-
17705600619 Bracket KitBracket Kit
-
18205062534 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
19293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
20705600655 Rear Brake DiscRear Brake Disc
-
21250000330 Shoulder Screw M8Shoulder Screw M8
-
22705600656 Rear Caliper SupportRear Caliper Support
-
23293370045 Snap RingSnap Ring
-
24705600412 Guide Rear CaliperGuide Rear Caliper
-
25250000247 Flanged Hex. Screw M10 X 16Flanged Hex. Screw M10 X 16
-
26705600616 Rear Brake Pedal Hose Ass'yRear Brake Pedal Hose Ass'y
-
27210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
28710000853 Brake SwitchBrake Switch
-
29710001377 Brake SwitchBrake Switch
-
30705600737 Rear Cylinder Master Ass'y. Includes 30 to 32Rear Cylinder Master Ass'y. Includes 30 to 32
-
31705600498 Rod SetRod Set
-
32705600739 Reservoir SetReservoir Set
-
33207662034 Hex. Flanged ScrewHex. Flanged Screw
-
34293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
35207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
36232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
37705600538 Hose ProtectorHose Protector
-
38250400031 Clevis PinClevis Pin
-
39250400032 Cotter PinCotter Pin
-
40705600534 Brake PedalBrake Pedal
-
41705600631 Fixation PlateFixation Plate
-
42390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
43705600635 Brake Pedal SpringBrake Pedal Spring
-
44705600458 BearingBearing
-
45413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
46205404036 Socket Head Screw M10 X 40Socket Head Screw M10 X 40
-
47293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
48506152194 WasherWasher
-
49293900087 BushingBushing
-
50705600614 Front Brake Hose Ass'y. Includes 50 to 51Front Brake Hose Ass'y. Includes 50 to 51
-
51705600459 ClampClamp
-
52705600613 Rear Brake Hose Ass'y. Includes 52 to 53Rear Brake Hose Ass'y. Includes 52 to 53
-
53705600459 ClampClamp
-
54705600617 SplitterSplitter
-
55705600618 Splitter SupportSplitter Support
-
56207664034 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
57233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
58705600660 Lever SupportLever Support
-
59250000247 Flanged Hex. Screw M10 X 16Flanged Hex. Screw M10 X 16
-
60705600661 Brake CableBrake Cable
-
61705600459 ClampClamp
-
62705600662 Cable SupportCable Support
-
63705600663 Lever BrakeLever Brake
-
64705600664 SupportSupport
-
65705600665 Lever PivotLever Pivot
-
66705600666 StopperStopper
-
67205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
68234061600 Flat Washer M6Flat Washer M6
-
69232561434 Elastic Stop Nut M6Elastic Stop Nut M6
