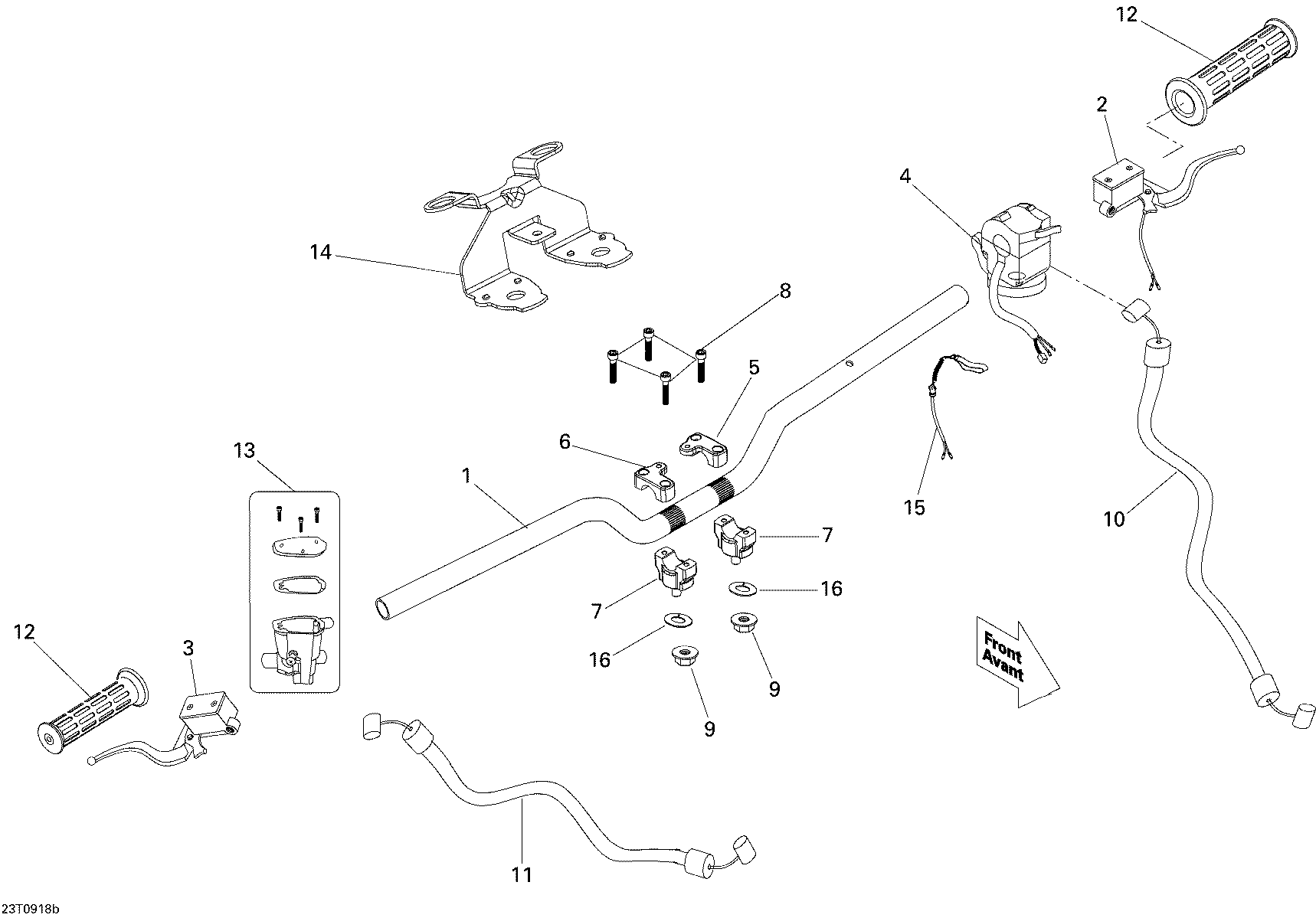

07- Handlebar для BRP DS 90 X - 2009
-
№АртикулНазвание
-
1V53100DGF01H Handle BarHandle Bar
-
2V53178DGF00H LH Brake LeverLH Brake Lever
-
3V53179DGF01H RH Lever Ass'yRH Lever Ass'y
-
4V35160DGF00H Multi-Function SwitchMulti-Function Switch
-
5V53170MAA000BK LH Upper Handle Bar ClampLH Upper Handle Bar Clamp
-
6V53175MAA000BK RH Upper Handle Bar ClampRH Upper Handle Bar Clamp
-
7V45517DGF00H Lower Handle Bar ClampLower Handle Bar Clamp
-
8A9100006025 Hex. Socket Bolt, M6 X 25Hex. Socket Bolt, M6 X 25
-
9A9035010000 Nut Nylon M10Nut Nylon M10
-
10V43316DGF040 Choke CableChoke Cable
-
11V17910DGF01H Throttle CableThrottle Cable
-
12V53140DGF000BK Handle GripHandle Grip
-
13V53174CEK000 Housing Throttle Ass'yHousing Throttle Ass'y
-
14V50223DGF01H SupportSupport
-
16234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
