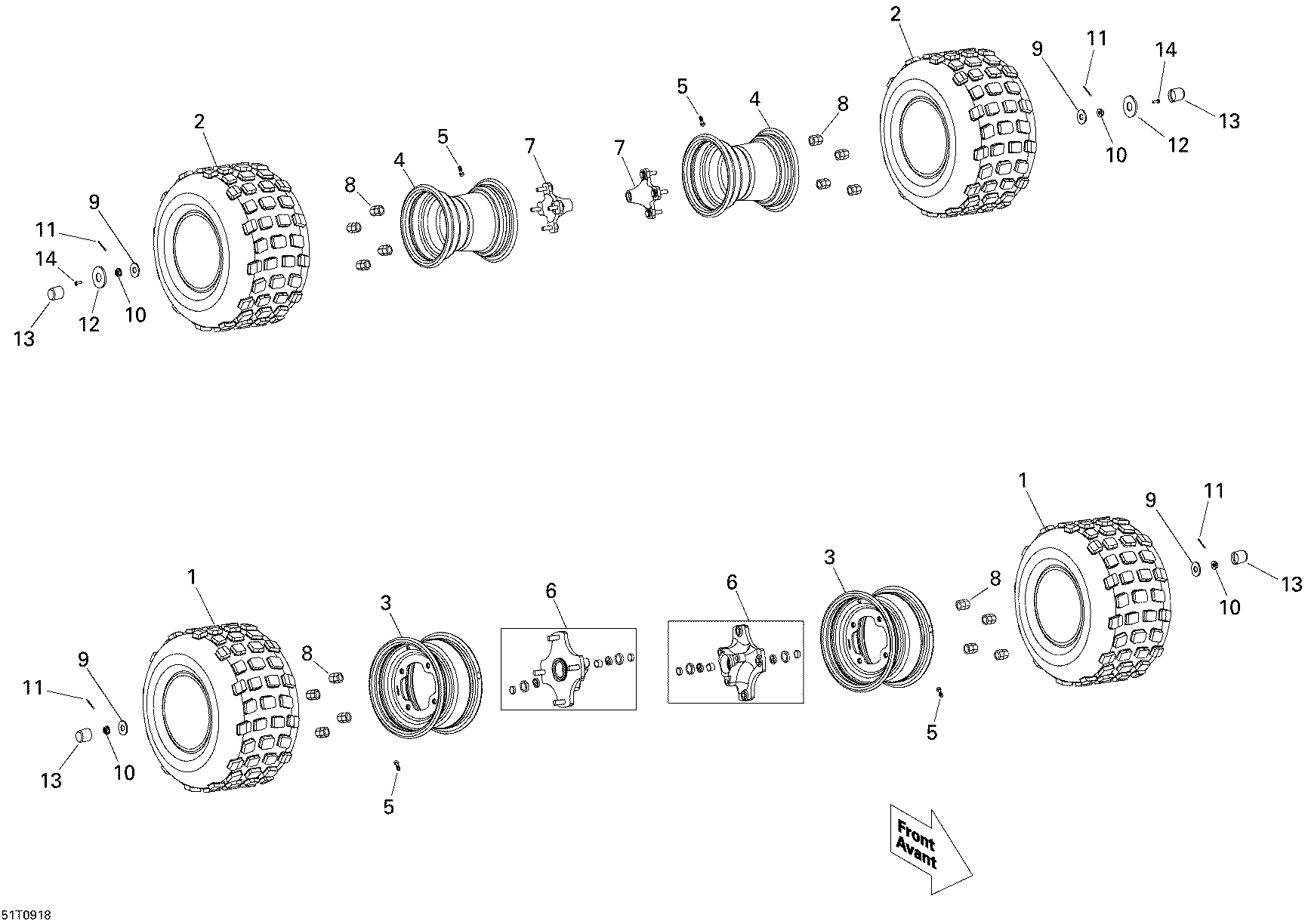

07- Wheels And Tires для BRP DS 90 X - 2009
-
№АртикулНазвание
-
1V42711DGF00H Front TireFront Tire
-
2V42712DGF00H Rear TireRear Tire
-
3V42701DGF00H Front RimFront Rim
-
4V42702DGF01H Rear RimRear Rim
-
5V42751MAA000 Rim ValveRim Valve
-
6V45110DGF00H Front HubFront Hub
-
7V44630CEK000 Rear Wheel Axle Fixed BracketRear Wheel Axle Fixed Bracket
-
8V9030210017 Aluminum Nut M10Aluminum Nut M10
-
9V55002MAA000 Rear Wheel WasherRear Wheel Washer
-
10V9405214000 Castle Nut M14Castle Nut M14
-
11V9420130032 Cotter PinCotter Pin
-
12V55002MEM010ZC Rear Wheel WasherRear Wheel Washer
-
13V53456CEK000 Rubber CapRubber Cap
-
14A9600006010 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
