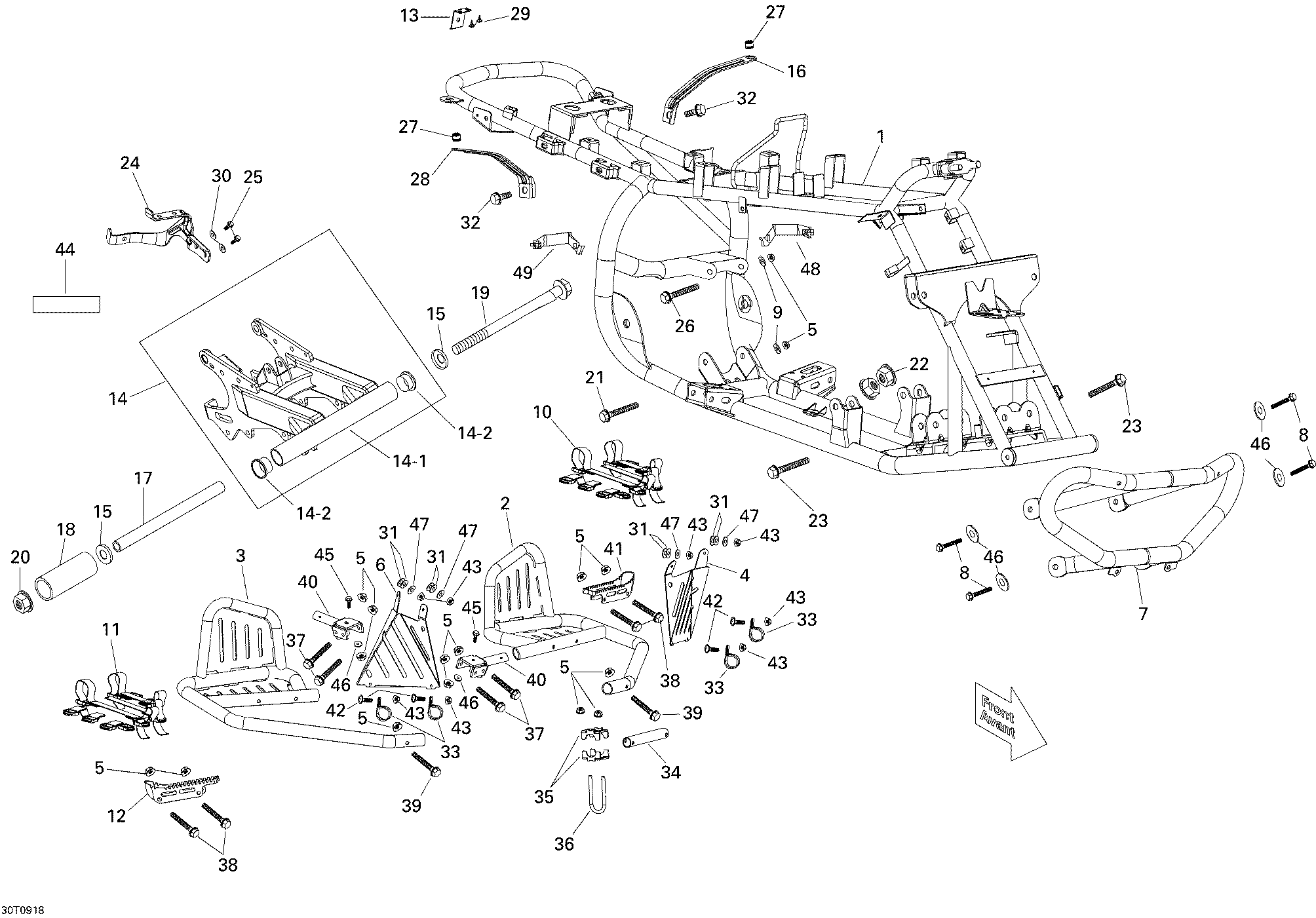

09- Frame для BRP DS 90 X - 2009
-
№АртикулНазвание
-
1V50100DGF03H FrameFrame
-
2V50099DGF05H LH BarLH Bar
-
3V50107DGF05H RH BarRH Bar
-
4V50108DGF01H LH Foot ProtectorLH Foot Protector
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6V50109DGF01H RH Foot ProtectorRH Foot Protector
-
7V50270DGF02H Front BumperFront Bumper
-
8V9600008014 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
9234181601 Lock Washer 8 mmLock Washer 8 mm
-
10V70002DGF04H LH NetLH Net
-
11V70001DGF04H RH NetRH Net
-
12V50112DGF02H FootrestFootrest
-
13V50266DGF020 Reflector BracketReflector Bracket
-
14V52370DGF00H Swing ArmSwing Arm
-
14-2V22135MAA000 BushingBushing
-
15V11400MAA000 Swing Arm Seal CoverSwing Arm Seal Cover
-
16V50260DGF040BK LH Upper Fixed PlateLH Upper Fixed Plate
-
17V44170MAA000 Swing Arm SpacerSwing Arm Spacer
-
18V53436MAA000 Rubber SleeveRubber Sleeve
-
19V9600014290 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
20232571414 Elastic Stop Nut M14Elastic Stop Nut M14
-
21V9600008100 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
22A9035010000 Nut Nylon M10Nut Nylon M10
-
23207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
24V50268DGF040 Chain Cover BraketChain Cover Braket
-
25207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
26V9600108125 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
27V85278DGF000 Rubber CushionRubber Cushion
-
28V50261DGF040BK RH Upper Fixed PlateRH Upper Fixed Plate
-
29V9309304012 Tapping ScrewTapping Screw
-
30234161601 Lock Washer Helical M6Lock Washer Helical M6
-
31V15235DGF010 Rubber CushionRubber Cushion
-
32207681244 Hex. Flanged ScrewHex. Flanged Screw
-
33V50110DGF00H ClipClip
-
34V50103DGF01H ConnectorConnector
-
35V50106DGF01H ClipClip
-
36V50105DGF01H U-BoltU-Bolt
-
37V9600008068 Hex. Flanged Bolt M8 X 68Hex. Flanged Bolt M8 X 68
-
38207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
39207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
40V50118DGF02H SupportSupport
-
41V50127DGF00H FootrestFootrest
-
42V9300006015 Round Head ScrewRound Head Screw
-
43232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
44V87604DGF00H Drive Chain LabelDrive Chain Label
-
45207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
46V941010816015 WasherWasher
-
47V941010622010 WasherWasher
-
48V50267DGF01H LH Support FenderLH Support Fender
-
49V50275DGF01H RH Support FenderRH Support Fender
