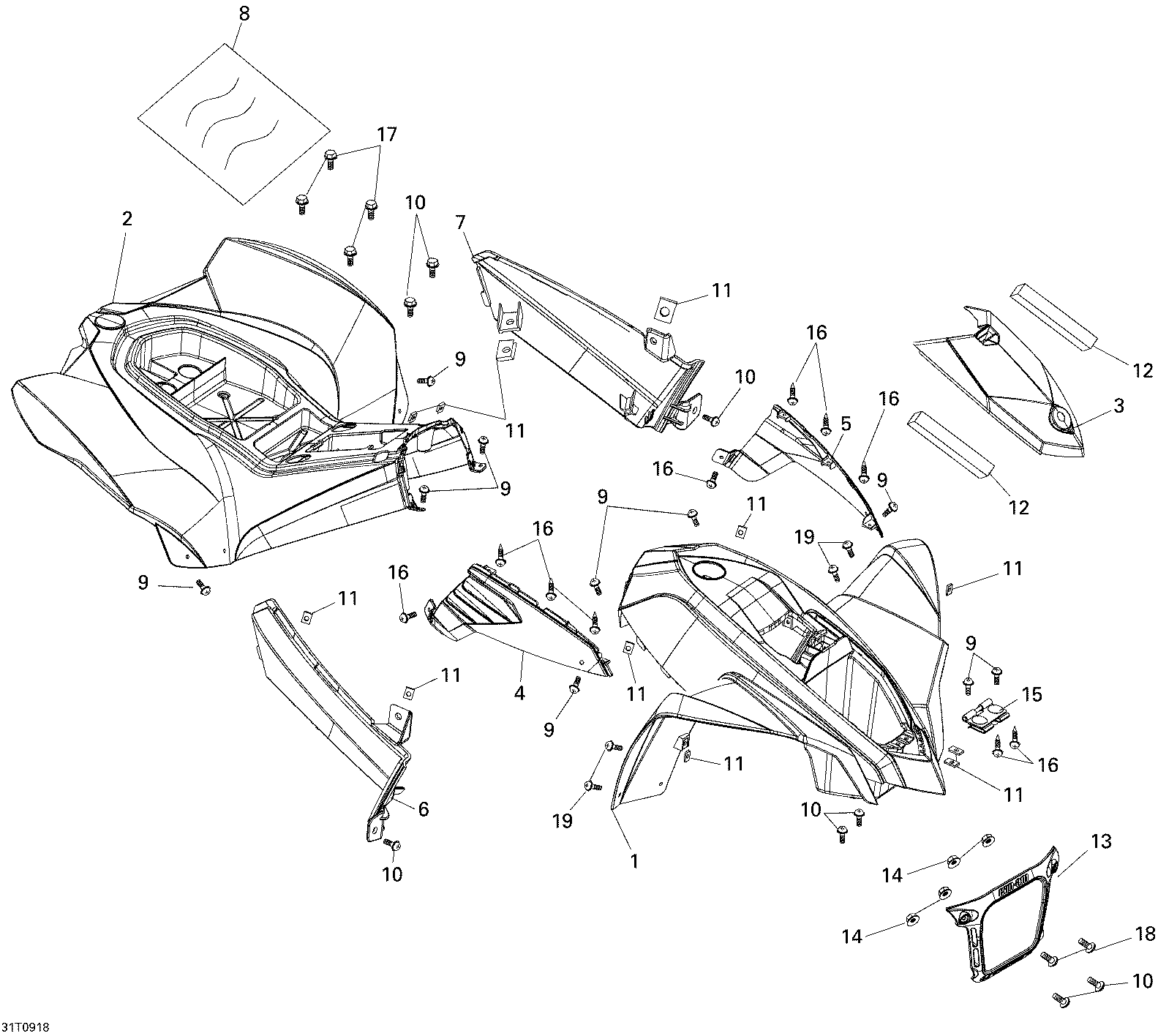

09- Body And Accessories NA для BRP DS 90 X - 2009
-
№АртикулНазвание
-
1V81101DGF00H Front Fender, BlackFront Fender, Black
-
2V81102DGF00H Rear Fender, BlackRear Fender, Black
-
3V81103DGF00H Cargo CoverCargo Cover
-
4V80104DGF010BK RH Front Side PanelRH Front Side Panel
-
5V80105DGF010BK LH Front Side PanelLH Front Side Panel
-
6V80116DGF000BK RH Rear Side PanelRH Rear Side Panel
-
7V80117DGF000BK LH Rear Side PanelLH Rear Side Panel
-
8V18450DGF000 Heat Insulation SheetHeat Insulation Sheet
-
9V9300006012 Round Head ScrewRound Head Screw
-
10V9300006015 Round Head ScrewRound Head Screw
-
11V9034506000K Spring NutSpring Nut
-
12V81146DGF020 Waterproof StripWaterproof Strip
-
13V81113DGF00H Skid Plate, YellowSkid Plate, Yellow
-
14V9035006000 Lock NutLock Nut
-
15V50262DGF020 Cargo Cover HingeCargo Cover Hinge
-
16V9309304012 Tapping ScrewTapping Screw
-
17207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18V9300006035 Round Haed Bolt M6 X 35Round Haed Bolt M6 X 35
-
19V9300006020 Round Haed Bolt M6 X 20Round Haed Bolt M6 X 20
