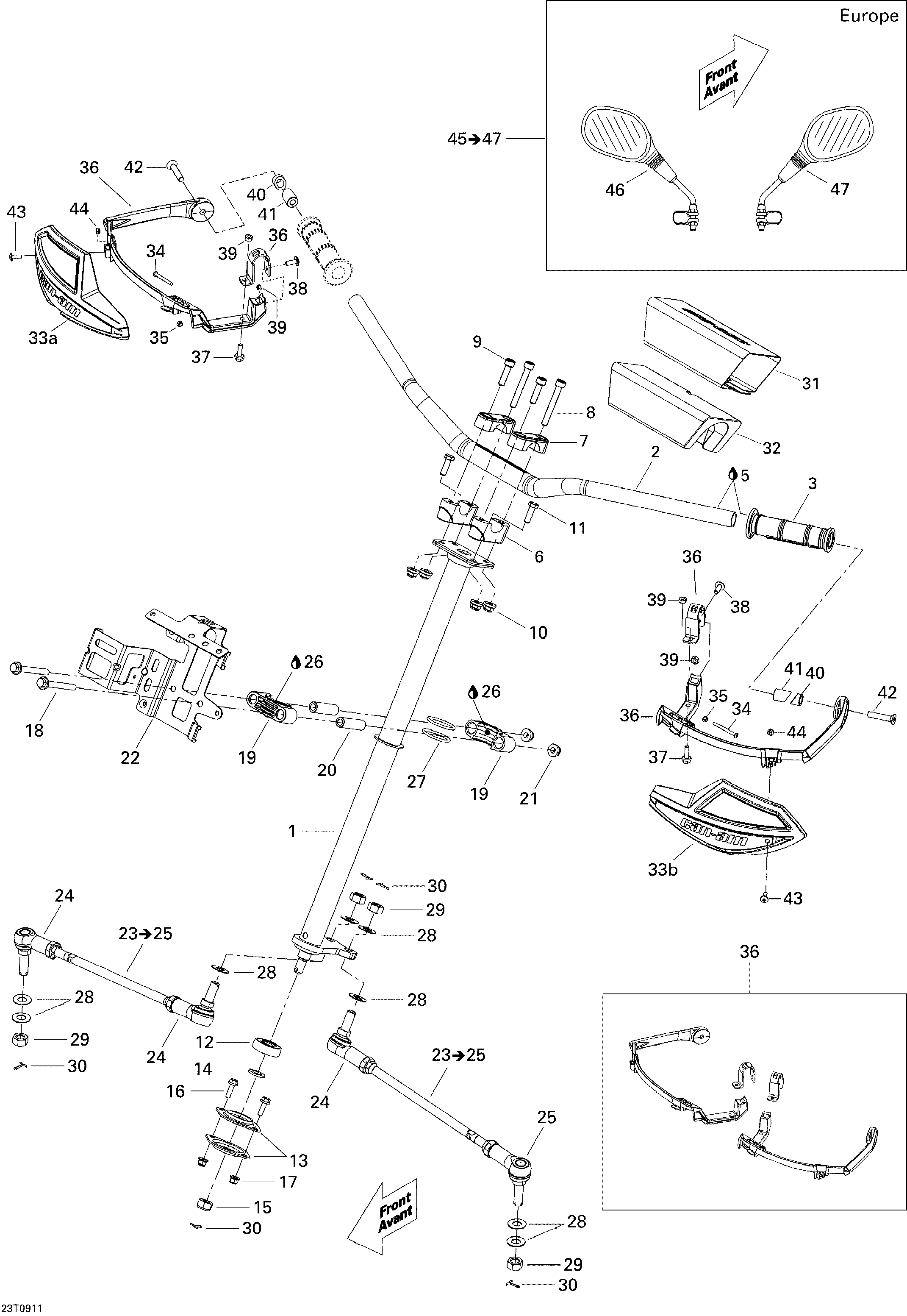

07- Steering для BRP Renegade 800R EFI X - 2009
-
№АртикулНазвание
-
1709400645 Main TubeMain Tube
-
2709400513 Aluminum- Handle BarAluminum- Handle Bar
-
3709400493 Handle GripHandle Grip
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6709400497 Steering SupportSteering Support
-
7709400496 SupportSupport
-
8205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
9205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
10233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
12709400439 Ball BearingBall Bearing
-
13709400152 Thrust WasherThrust Washer
-
14234021410 Flat Washer 12 mmFlat Washer 12 mm
-
15250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
16207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
19709400471 Half BushingHalf Bushing
-
20709400072 BushingBushing
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22705201532 SupportSupport
-
23709400485 Tie Rod Ass'y. Includes 23 to 25Tie Rod Ass'y. Includes 23 to 25
-
24709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
25709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293300068 O-RingO-Ring
-
28706200281 Hardened WasherHardened Washer
-
29250100099 Nut M12Nut M12
-
30211400013 Cotter PinCotter Pin
-
31709400519 CoverCover
-
32709400422 FoamFoam
-
33a709400530 RH DeflectorRH Deflector
-
33b709400531 LH DeflectorLH Deflector
-
34205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
35232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
36715000545 Deflector Support KitDeflector Support Kit
-
37207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
38250000223 Torx ScrewTorx Screw
-
39232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40709400161 BracketBracket
-
41709400162 BracketBracket
-
42205384034 Socket Head ScrewSocket Head Screw
-
43250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
44232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
45708200112 Mirror KIT. Europe, Includes 45 to 47Mirror KIT. Europe, Includes 45 to 47
-
46709400406 LH Mirror. EuropeLH Mirror. Europe
-
47709400523 RH Mirror. EuropeRH Mirror. Europe
