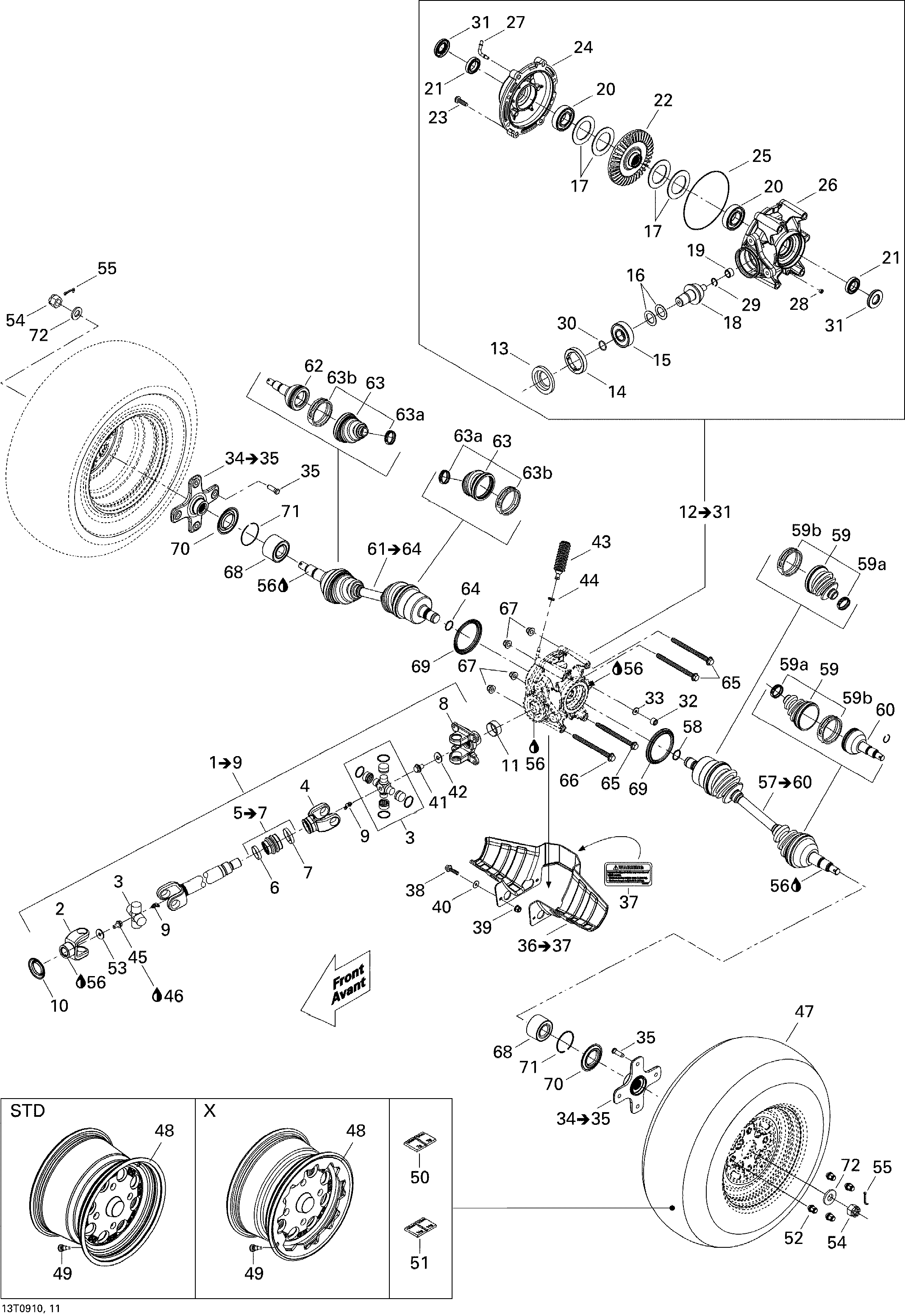

08- Drive System, Rear для BRP Renegade 800R EFI X - 2009
-
№АртикулНазвание
-
1703500719 Rear Propeller Shaft Kit. Includes 1 to 9, 500, 650Rear Propeller Shaft Kit. Includes 1 to 9, 500, 650
-
1703500721 Rear Propeller Shaft Kit. Includes 1 to 9, 800Rear Propeller Shaft Kit. Includes 1 to 9, 800
-
2705500371 Fix JointFix Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705501072 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
7293650138 Oetiker ClampOetiker Clamp
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705500902 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705501093 Differential Ass'y. Includes 12 to 31Differential Ass'y. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
14705500987 NutNut
-
15705500260 Ball BearingBall Bearing
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
16703500049 Pinion Shim KitPinion Shim Kit
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705501051 10 Teeth Pinion10 Teeth Pinion
-
19705500261 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
21705500750 Ball BearingBall Bearing
-
22705500775 Gear, 36 ToothGear, 36 Tooth
-
23705500892 ScrewScrew
-
24705500697 Rear Differential CoverRear Differential Cover
-
25705500265 SealSeal
-
26705500843 Rear CoverRear Cover
-
27705500893 Vent ValveVent Valve
-
28705500894 Drain PlugDrain Plug
-
29705500269 Retaining RingRetaining Ring
-
30705500267 O-RingO-Ring
-
31705500751 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705500909 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300034 Wheel StudWheel Stud
-
36703500722 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Label, HitchWarning Label, Hitch
-
38207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
42250200102 Flat Washer M12Flat Washer M12
-
43705400552 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47705500820 Rear Tire. EUROPERear Tire. EUROPE
-
47705500926 Rear TireRear Tire
-
48705500914 Rear Rim. XRear Rim. X
-
49705400193 Rim ValveRim Valve
-
50705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
51705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
52250100100 Black Wheel Nut M10 X 1.25. XBlack Wheel Nut M10 X 1.25. X
-
53250200102 Flat Washer M12Flat Washer M12
-
54250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
55250400036 Cotter PinCotter Pin
-
56293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
57705500979 LH CV Joint Ass'y. Includes 57 to 60LH CV Joint Ass'y. Includes 57 to 60
-
58705500845 CirclipCirclip
-
59705500870 Boot KitBoot Kit
-
59a293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
59b293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
60705500980 CV JointCV Joint
-
61705500983 RH CV Joint Ass'y. Includes 61 to 64RH CV Joint Ass'y. Includes 61 to 64
-
62705500980 CV JointCV Joint
-
63705500870 Boot KitBoot Kit
-
63a293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
63b293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
64705500845 CirclipCirclip
-
65230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
66230603546 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
67233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
68293350040 Cone BearingCone Bearing
-
69705500975 Wear SleeveWear Sleeve
-
70705500899 Wear SleeveWear Sleeve
-
71293370019 CirclipCirclip
-
72250200049 Spring WasherSpring Washer
