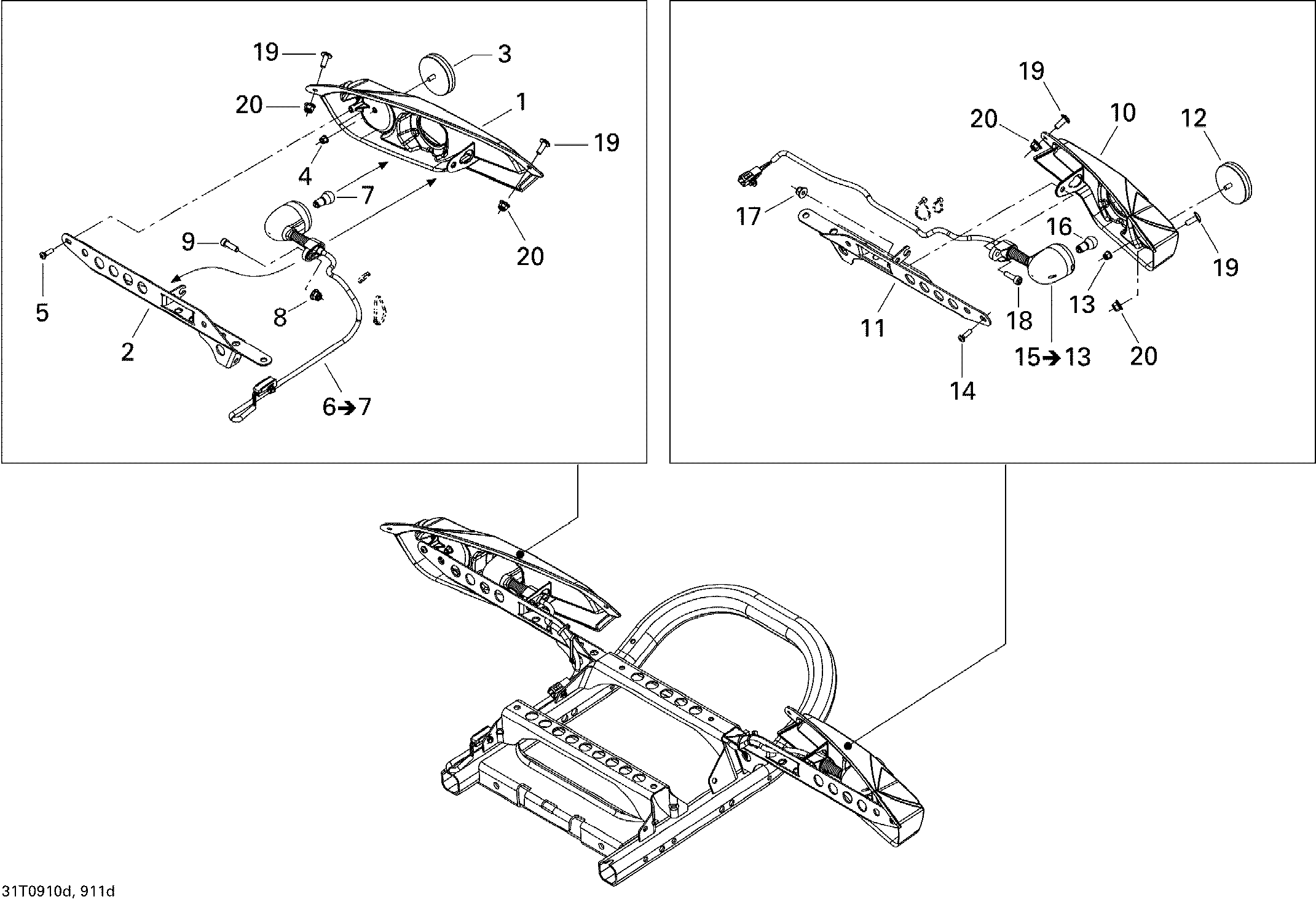

09- Body And Accessories 4 для BRP Renegade 800R EFI X - 2009
-
№АртикулНазвание
-
1705002265 RH Rear FaciaRH Rear Facia
-
2705002431 RH Rear Facia SupportRH Rear Facia Support
-
3705002408 Reflector, RedReflector, Red
-
4233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
5250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
6710001079 Flashing LightFlashing Light
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9415129258 BulbBulb
-
10705002266 LH Rear FaciaLH Rear Facia
-
11705002432 LH Rear Facia SupportLH Rear Facia Support
-
12705002408 Reflector, RedReflector, Red
-
13233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15710001080 Flashing LightFlashing Light
-
16205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18415129258 BulbBulb
-
19250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
