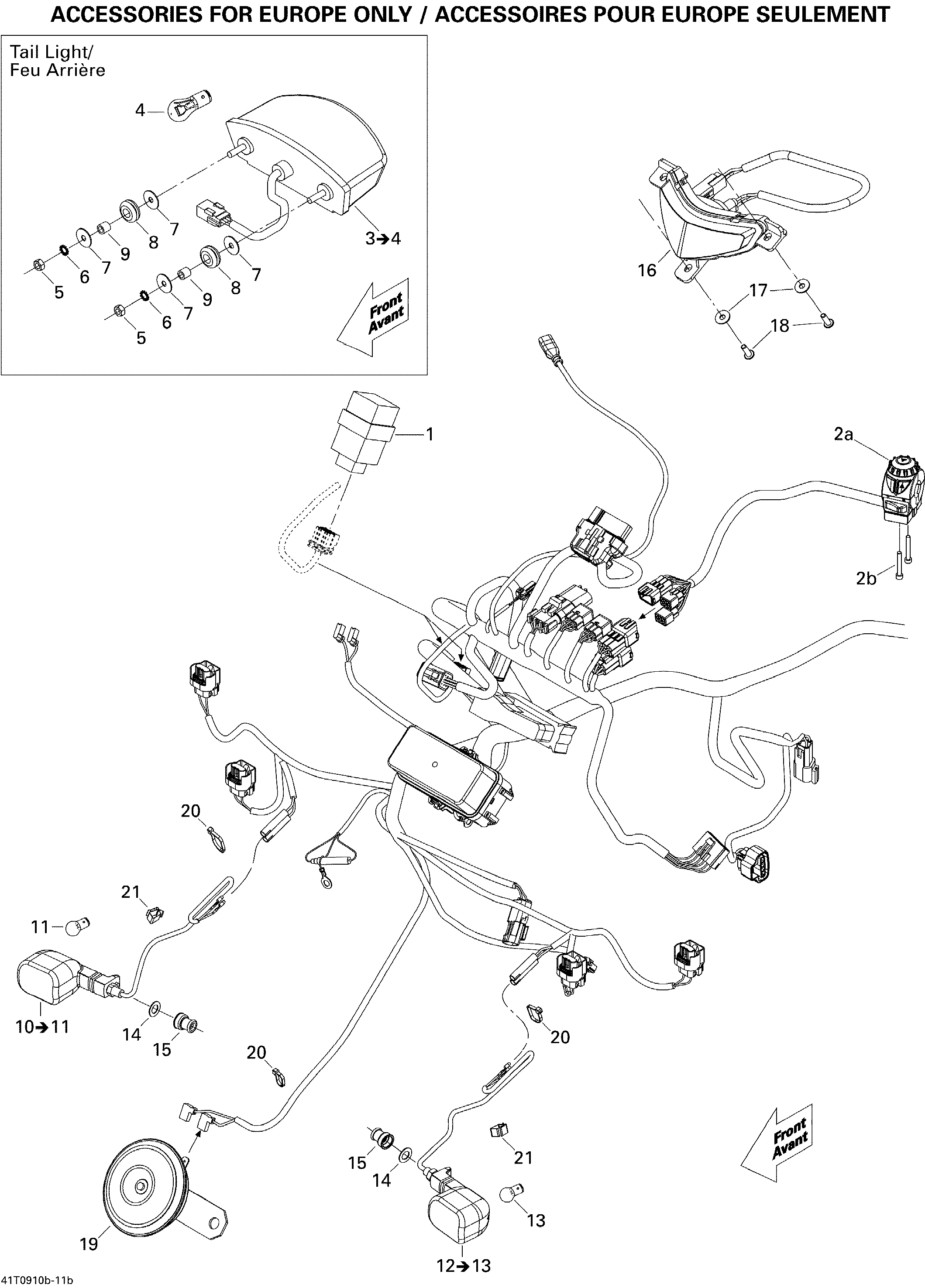

10- Electrical Accessories Europe для BRP Renegade 800R EFI X - 2009
-
№АртикулНазвание
-
1710001447 Flasher UnitFlasher Unit
-
2a710001428 Multi function HandleMulti function Handle
-
2b207141260 Screw Hex. M4 X 12Screw Hex. M4 X 12
-
3710000760 Tail Light. Includes 3 to 4Tail Light. Includes 3 to 4
-
4410504100 Tail Light BulbTail Light Bulb
-
5232061600 Hex. Nut M6Hex. Nut M6
-
6234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
7224060201 Flat WasherFlat Washer
-
8293720053 GrommetGrommet
-
9293900045 BushingBushing
-
10710000547 Flasher. Includes 10 to 11Flasher. Includes 10 to 11
-
12710000546 Flasher. Includes 12 to 13Flasher. Includes 12 to 13
-
14503175800 WasherWasher
-
15710000765 Protection CapProtection Cap
-
16710001042 Day LightDay Light
-
17391301700 WasherWasher
-
18241641040 Pan Head Flanged Screw K40 X 10Pan Head Flanged Screw K40 X 10
-
19710000983 HornHorn
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21414227300 ClipClip
