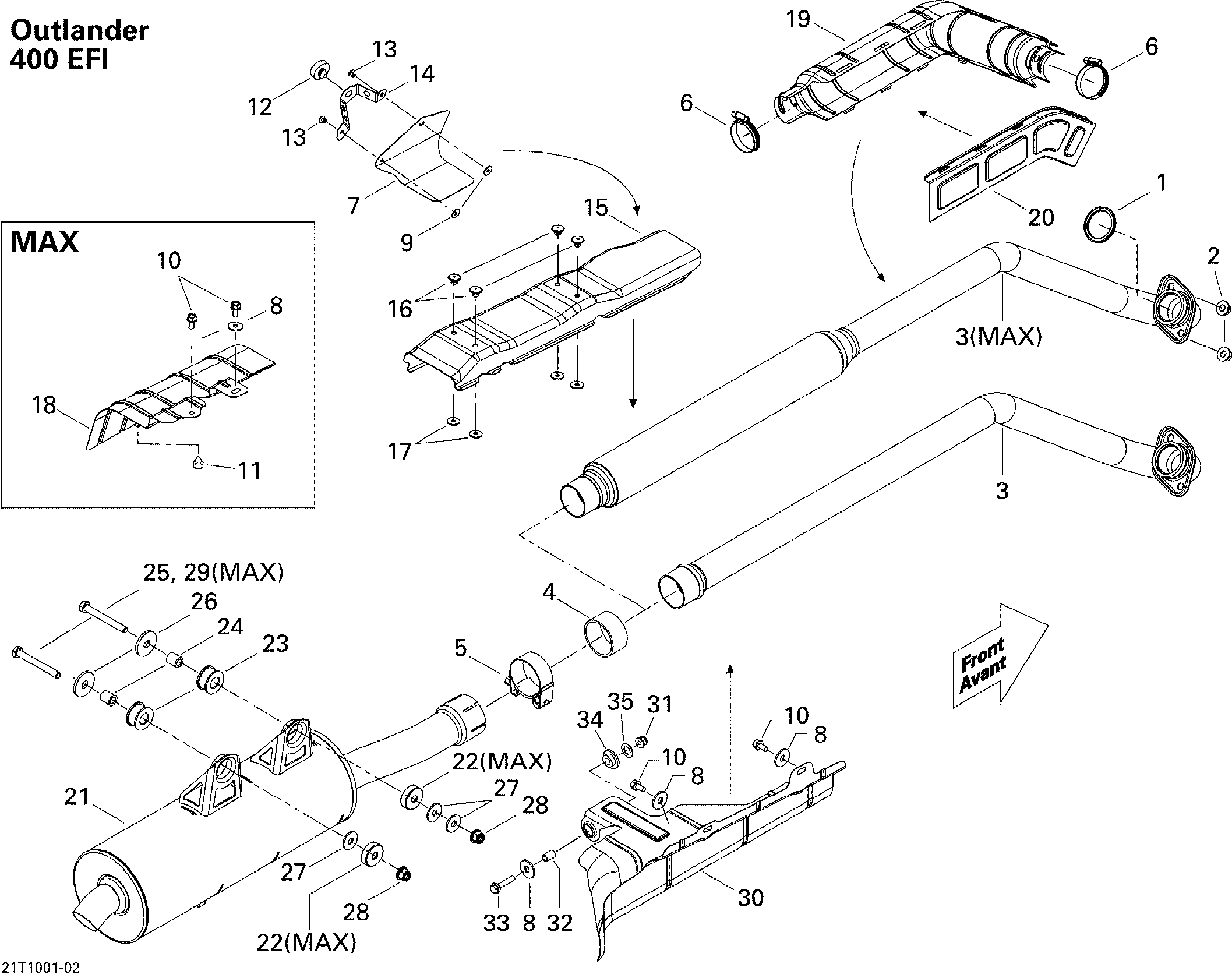

01- Exhaust System для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600599 Tuned PipeTuned Pipe
-
4707600430 Pipe GasketPipe Gasket
-
5293650177 Norma Gear ClampNorma Gear Clamp
-
6293650098 Norma Gear ClampNorma Gear Clamp
-
7707600618 Heat ShieldHeat Shield
-
8391302000 Flat WasherFlat Washer
-
9391301000 WasherWasher
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11293830005 Rubber Plug, BlackRubber Plug, Black
-
12708000506 Rubber StopperRubber Stopper
-
13293150122 Pop Rivet 1/8''Pop Rivet 1/8''
-
14707600581 Panel SupportPanel Support
-
15707600700 Heat ShieldHeat Shield
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17517124300 WasherWasher
-
18707600459 Heat ShieldHeat Shield
-
19707600462 Heat Base ShieldHeat Base Shield
-
20707600457 Heat Shield CoverHeat Shield Cover
-
21707600574 MufflerMuffler
-
21707600597 Muffler. EuropeMuffler. Europe
-
22707600603 SpacerSpacer
-
23707600701 RubberRubber
-
24293900082 BushingBushing
-
26503032900 WasherWasher
-
27234082410 Flat Washer 8 mmFlat Washer 8 mm
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29207688044 Hex. Flanged Screw M8 X 80Hex. Flanged Screw M8 X 80
-
30707600621 ProtectorProtector
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32293900078 SleeveSleeve
-
33207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
34709200115 BushingBushing
-
35503175800 WasherWasher
