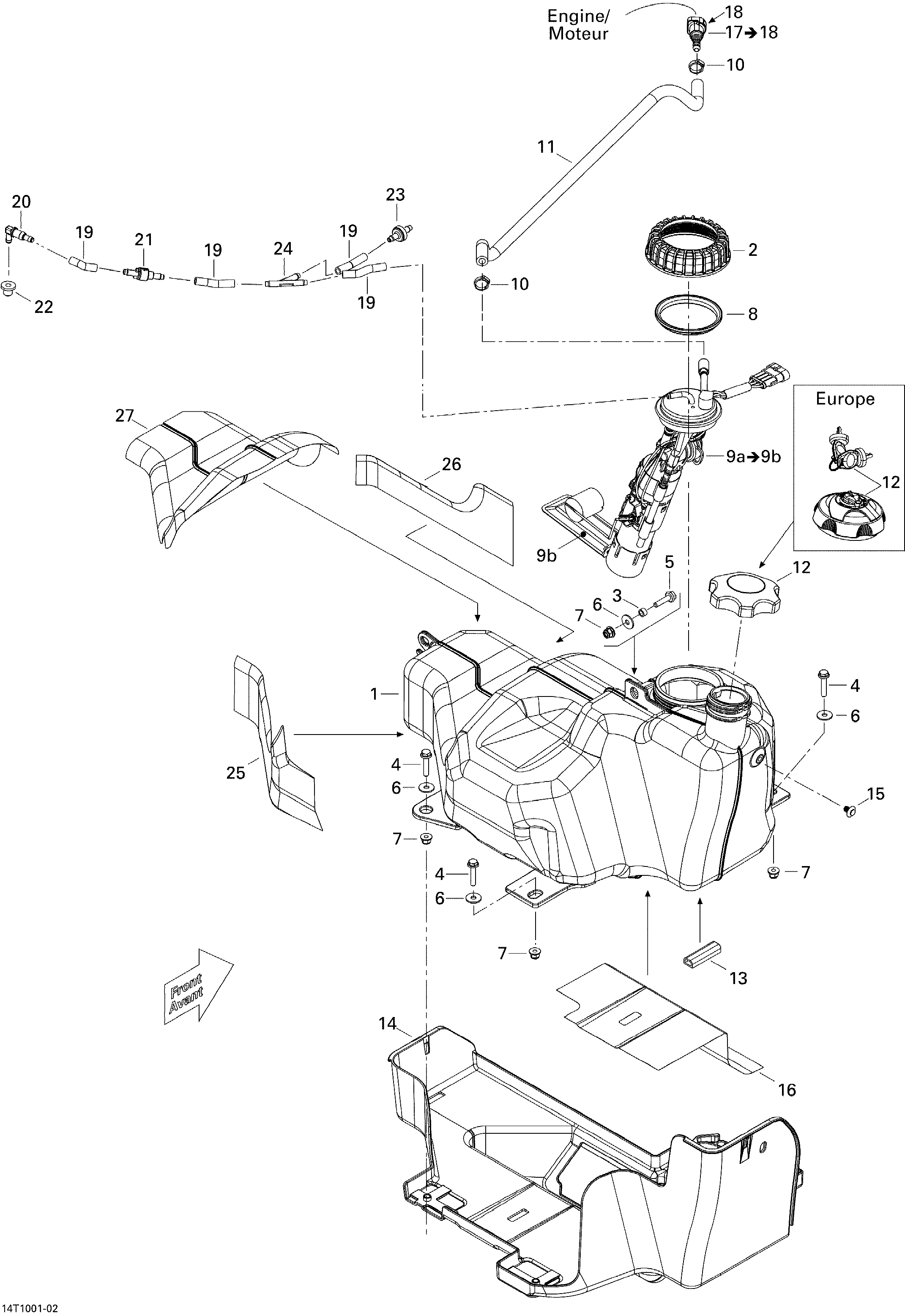

02- Fuel System для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1709000220 Fuel TankFuel Tank
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
3293900029 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662534 Hex. Flanged ScrewHex. Flanged Screw
-
6224060251 Flat WasherFlat Washer
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8709000208 SealSeal
-
9a709000245 Fuel Pump. Includes 9a to 9bFuel Pump. Includes 9a to 9b
-
10293650046 Oetiker ClampOetiker Clamp
-
11709000163 Fuel LineFuel Line
-
12513033025 Fuel Tank CapFuel Tank Cap
-
12709000267 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
13293200093 Neoprene SealNeoprene Seal
-
14709000207 Tank ProtectorTank Protector
-
15293150168 Plastic Tuklock RivetPlastic Tuklock Rivet
-
16709000149 Reflective SheetReflective Sheet
-
17709000125 Female Quick Fitting Ass'y. Includes 17 to 18Female Quick Fitting Ass'y. Includes 17 to 18
-
18513033135 Locking ClipLocking Clip
-
19415080200 Polyurethane HosePolyurethane Hose
-
20414580600 Elbow Male ConnectorElbow Male Connector
-
21513033469 Check ValveCheck Valve
-
22293720029 GrommetGrommet
-
23275500398 Check ValveCheck Valve
-
24293710059 Y-FittingY-Fitting
-
25709000204 Reflecting SheetReflecting Sheet
-
26709000205 Reflecting SheetReflecting Sheet
-
27709000206 Reflecting SheetReflecting Sheet
