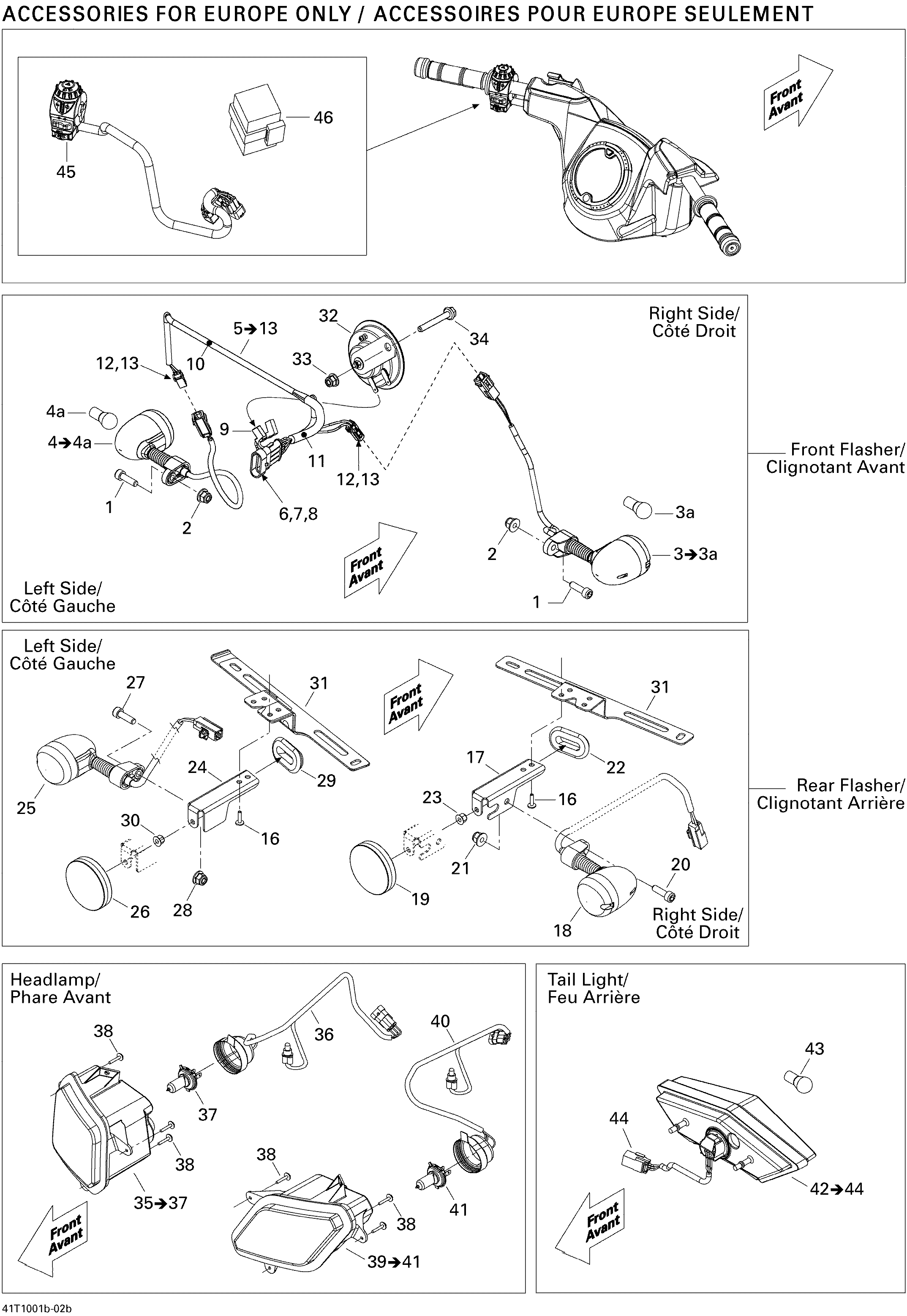

10- Electrical Accessories Europe для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3710001079 Flashing Light. Includes 3 to 3aFlashing Light. Includes 3 to 3a
-
3a415129258 BulbBulb
-
4710001080 Flashing Light. Includes 4 to 4aFlashing Light. Includes 4 to 4a
-
4a415129258 BulbBulb
-
5710001495 Front Harness Ass'y. Includes 5 to 13Front Harness Ass'y. Includes 5 to 13
-
6409012900 Male TerminalMale Terminal
-
7710000576 Housing, 4circuitsHousing, 4circuits
-
8278001013 Wire SealWire Seal
-
9409010300 Female TerminalFemale Terminal
-
10515175442 Tubing 6 mmTubing 6 mm
-
11409901700 Tubing 9 mmTubing 9 mm
-
12515175231 Female TerminalFemale Terminal
-
13515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
16390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
17710001329 BracketBracket
-
18710001079 Flashing LightFlashing Light
-
19705002408 Reflector, RedReflector, Red
-
20205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22705003668 Oblong GrommetOblong Grommet
-
23233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
24710001330 BracketBracket
-
25710001080 Flashing LightFlashing Light
-
26705002408 Reflector, RedReflector, Red
-
27205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
29705003668 Oblong GrommetOblong Grommet
-
31710001241 BracketBracket
-
32710000983 HornHorn
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
35710000861 RH Headlamp. Includes 35 to 37RH Headlamp. Includes 35 to 37
-
36710000923 Headlamp HarnessHeadlamp Harness
-
37710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
38250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
39710000862 LH Headlamp. Includes 39 to 41LH Headlamp. Includes 39 to 41
-
40710000923 Headlamp HarnessHeadlamp Harness
-
41710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
42710001204 Tail Light Housing. Includes 42 to 44Tail Light Housing. Includes 42 to 44
-
43520000758 BulbBulb
-
44515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
45710001428 Multi function HandleMulti function Handle
-
46710001447 Flasher UnitFlasher Unit
