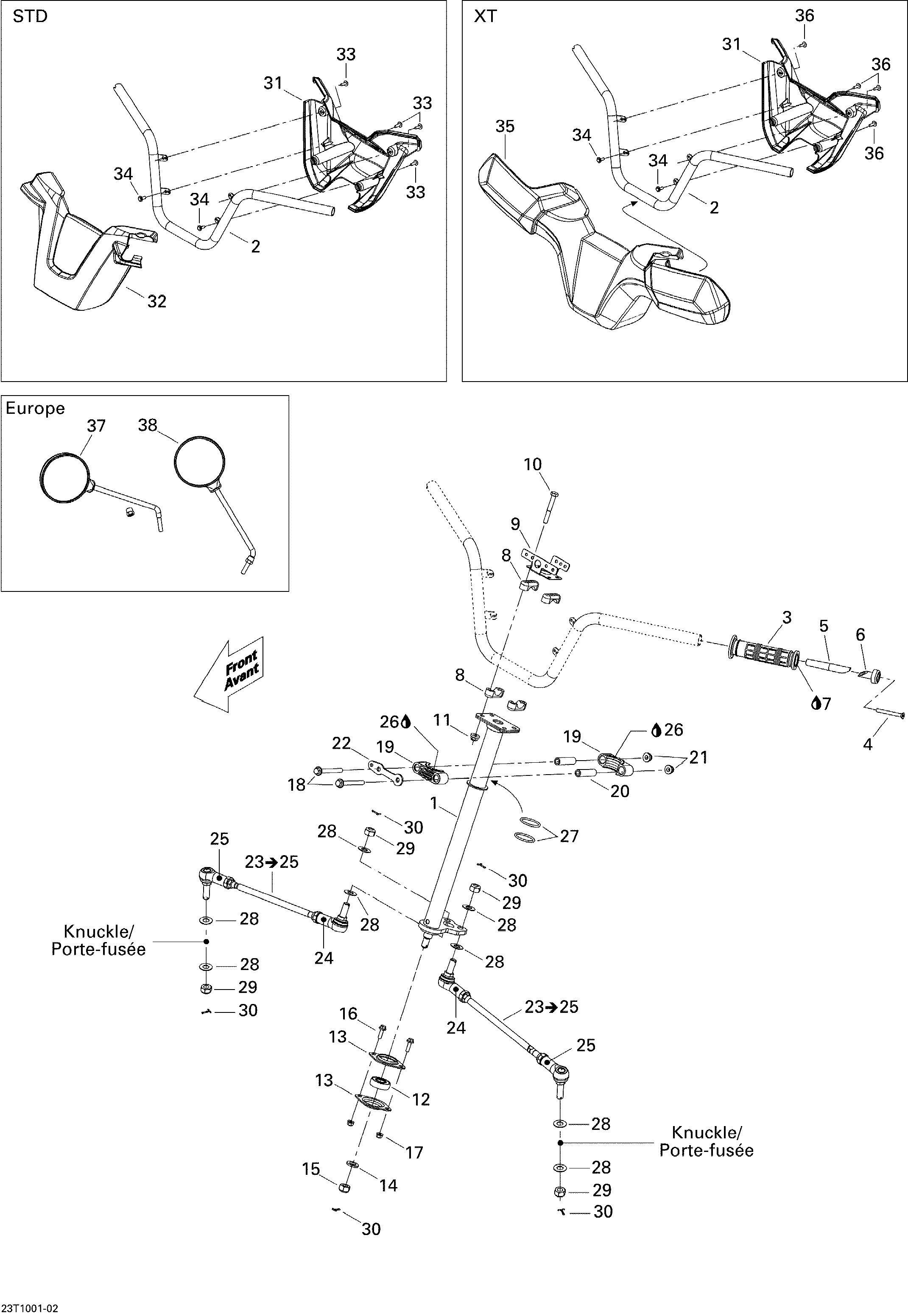

07- Steering для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1709400647 Main TubeMain Tube
-
2709400401 Handle BarHandle Bar
-
3709400493 Handle GripHandle Grip
-
4205387034 Socket Head Screw, M8 X 70Socket Head Screw, M8 X 70
-
5709400609 Steering Threaded BracketSteering Threaded Bracket
-
6709400591 End PieceEnd Piece
-
7293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
8506151622 Steering SupportSteering Support
-
9709400586 Connector BracketConnector Bracket
-
10207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
11233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12709400439 Ball BearingBall Bearing
-
13709400152 Thrust WasherThrust Washer
-
14234021410 Flat Washer 12 mmFlat Washer 12 mm
-
15250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
16207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
19709400471 Half BushingHalf Bushing
-
20709400072 BushingBushing
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22709400053 Stopper PlateStopper Plate
-
23709400485 Tie Rod Ass'y. Includes 23 to 25Tie Rod Ass'y. Includes 23 to 25
-
24709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
25709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293300068 O-RingO-Ring
-
28706200281 Hardened WasherHardened Washer
-
29250100099 Nut M12Nut M12
-
30211400013 Cotter PinCotter Pin
-
31709400313 Rear Steering Cover, BlackRear Steering Cover, Black
-
32709400386 Front Steering Cover, Black. STDFront Steering Cover, Black. STD
-
33250000146 Truss Head Torx Screw K50 X 16. STDTruss Head Torx Screw K50 X 16. STD
-
34243141640 Hex. Flanged Plastite Screw M4.8 X 16Hex. Flanged Plastite Screw M4.8 X 16
-
35703100217 Handle Guard, XT. XTHandle Guard, XT. XT
-
36250000146 Truss Head Torx Screw K50 X 16. XTTruss Head Torx Screw K50 X 16. XT
-
37709400406 LH Mirror. EuropeLH Mirror. Europe
-
38709400407 RH Mirror. EuropeRH Mirror. Europe
