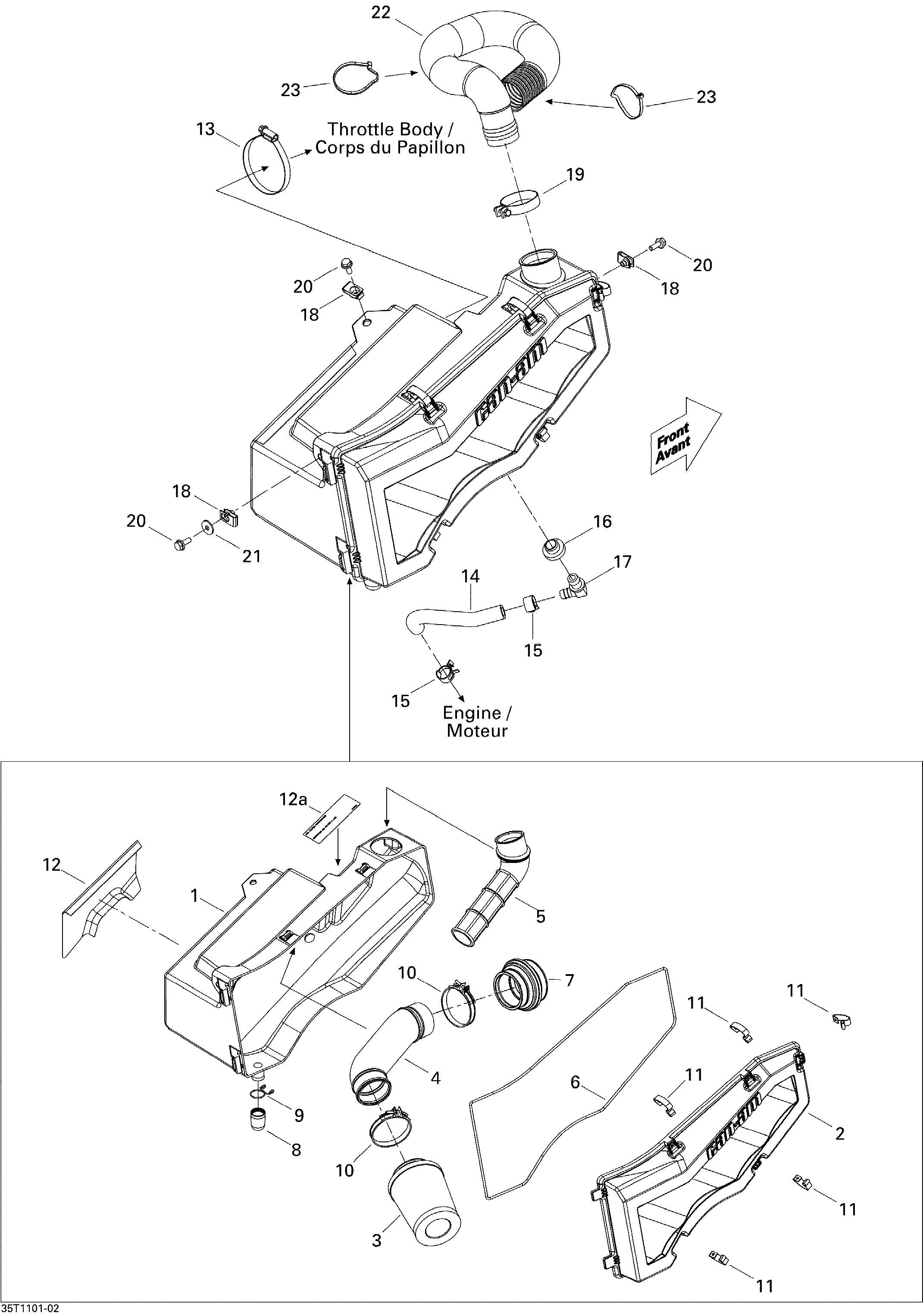

02- Air Intake Silencer для BRP Outlander 400 EFI - 2011
-
№АртикулНазвание
-
1707800262 Air Intake Silencer BaseAir Intake Silencer Base
-
2707800263 Air Intake Silencer CoverAir Intake Silencer Cover
-
3707800264 Air FilterAir Filter
-
4707800265 Rigid AdaptorRigid Adaptor
-
5707800266 Front Intake AdaptorFront Intake Adaptor
-
6293250178 GasketGasket
-
7707800177 Intake AdaptorIntake Adaptor
-
8707800080 Drain TubeDrain Tube
-
9707800278 Retainer ClipRetainer Clip
-
10293650175 ClampClamp
-
11707800249 Cover BracketCover Bracket
-
12707800276 Heat ProtectorHeat Protector
-
12a707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
13293650091 Norma ClampNorma Clamp
-
14707800268 Vent HoseVent Hose
-
15293650110 Norma ClampNorma Clamp
-
16707800347 GrommetGrommet
-
17414523600 Elbow FittingElbow Fitting
-
18250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
19293650160 Gemi ClampGemi Clamp
-
20207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
21391302000 Flat WasherFlat Washer
-
22707800287 Vent HoseVent Hose
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
