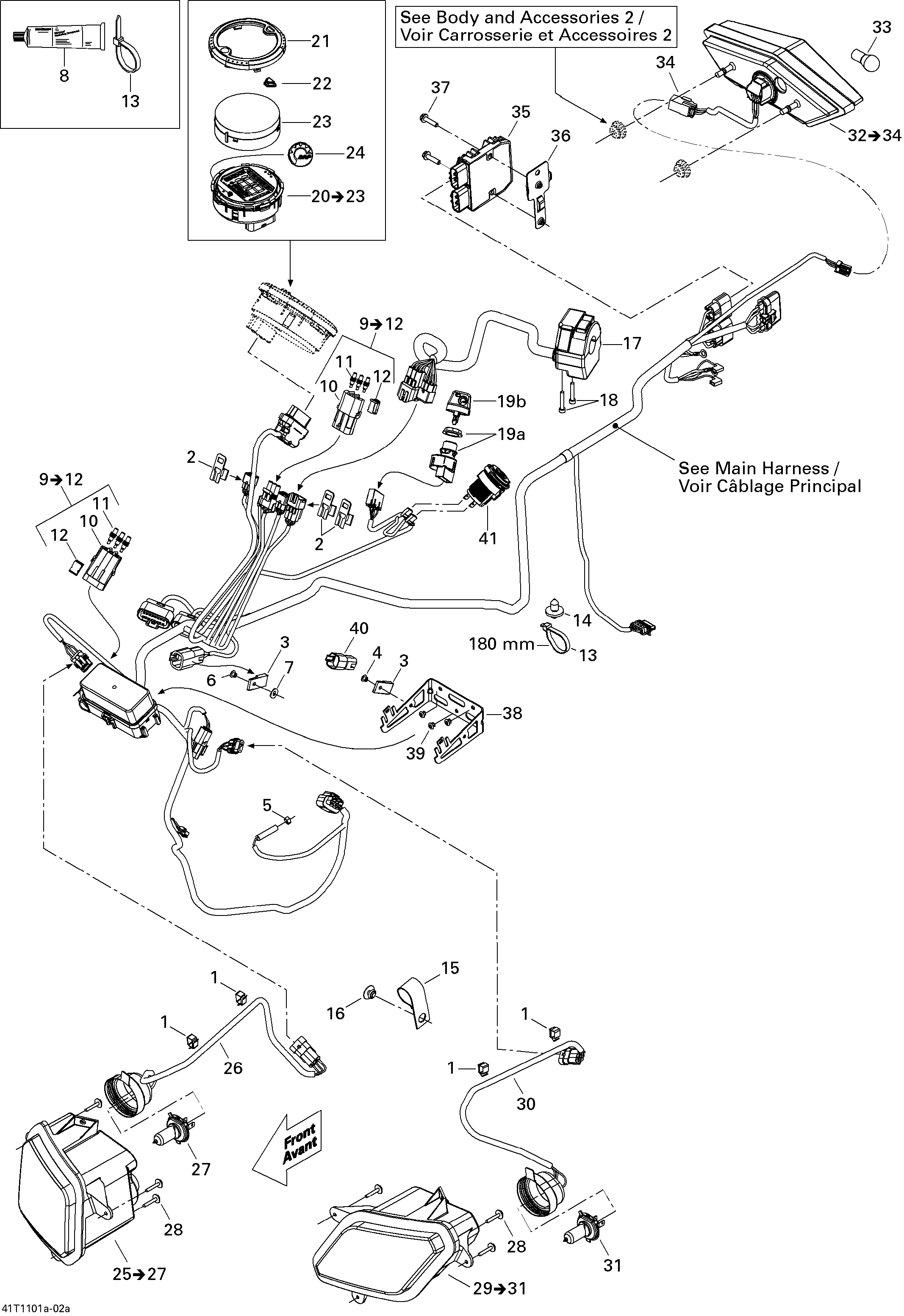

10- Electrical Accessories 1 для BRP Outlander 400 EFI - 2011
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
7391301700 WasherWasher
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9710000917 Connector Ass'y. STD, Includes 9 to 12Connector Ass'y. STD, Includes 9 to 12
-
10278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
11278000216 Wire SealWire Seal
-
12710000992 ClipClip
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14293730018 Mount DartMount Dart
-
15705600311 ClampClamp
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17710000791 Multi-fonction HandleMulti-fonction Handle
-
18205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
19a710002323 Ingnition Switch With Key. InternationalIngnition Switch With Key. International
-
19b715900029 Blank Key. InternationalBlank Key. International
-
19a710002324 Ignition Switch. North AmericaIgnition Switch. North America
-
19b710000817 Black-Electronic KeyBlack-Electronic Key
-
20710002474 Speedometer. Includes 20 to 23Speedometer. Includes 20 to 23
-
21710001416 Trim RingTrim Ring
-
22710001417 ButtonButton
-
23415129320 LensLens
-
24704901270 BRP Logo, 13mmBRP Logo, 13mm
-
25710001496 RH Headlamp. Includes 25 to 27RH Headlamp. Includes 25 to 27
-
26710000828 Headlamp HarnessHeadlamp Harness
-
27710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
28250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
29710001497 LH Headlamp. Includes 29 to 31LH Headlamp. Includes 29 to 31
-
30710000828 Headlamp HarnessHeadlamp Harness
-
31710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
32710001203 Tail Light Housing. Includes 32 to 34Tail Light Housing. Includes 32 to 34
-
33520000758 BulbBulb
-
34515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
35710001103 Voltage RegulatorVoltage Regulator
-
36710001262 Rectifier SupportRectifier Support
-
37210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
38710002176 Fuse SupportFuse Support
-
39390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
41710001248 Outlet DCOutlet DC
