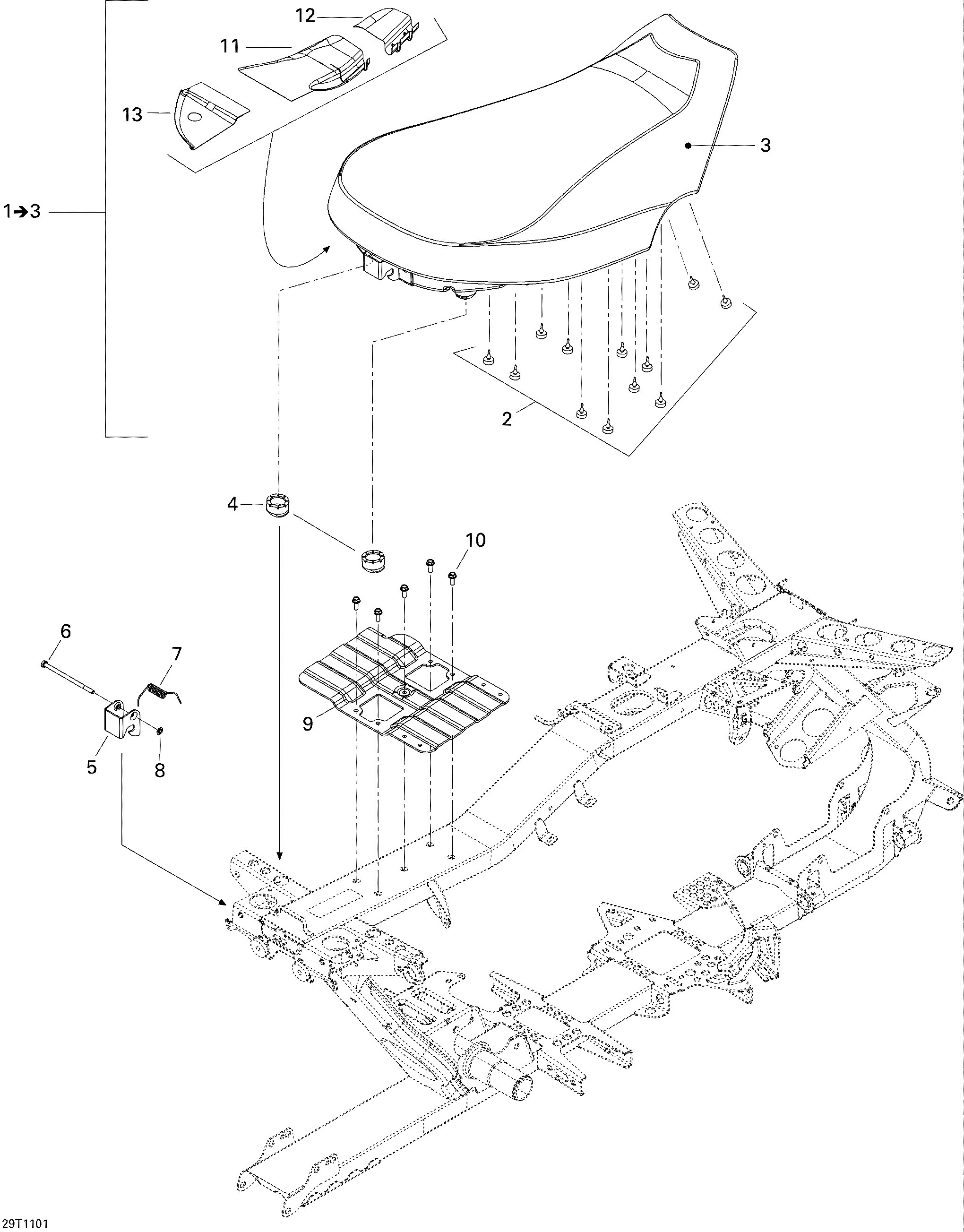

09- Seat для BRP Outlander 400 EFI - 2011
-
№АртикулНазвание
-
1715500322 Seat Ass'ySeat Ass'y
-
2708000759 Rubber StopperRubber Stopper
-
3708000474 Seat CoverSeat Cover
-
4708000760 Bumper RubberBumper Rubber
-
5708000144 Latch, BlackLatch, Black
-
6230061044 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
7708000369 SpringSpring
-
8732610072 Push NutPush Nut
-
9708000629 Seat ReinforcementSeat Reinforcement
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11708000650 Reflecting SheetReflecting Sheet
-
12708000649 Reflecting SheetReflecting Sheet
-
13708000514 Reflecting SheetReflecting Sheet
