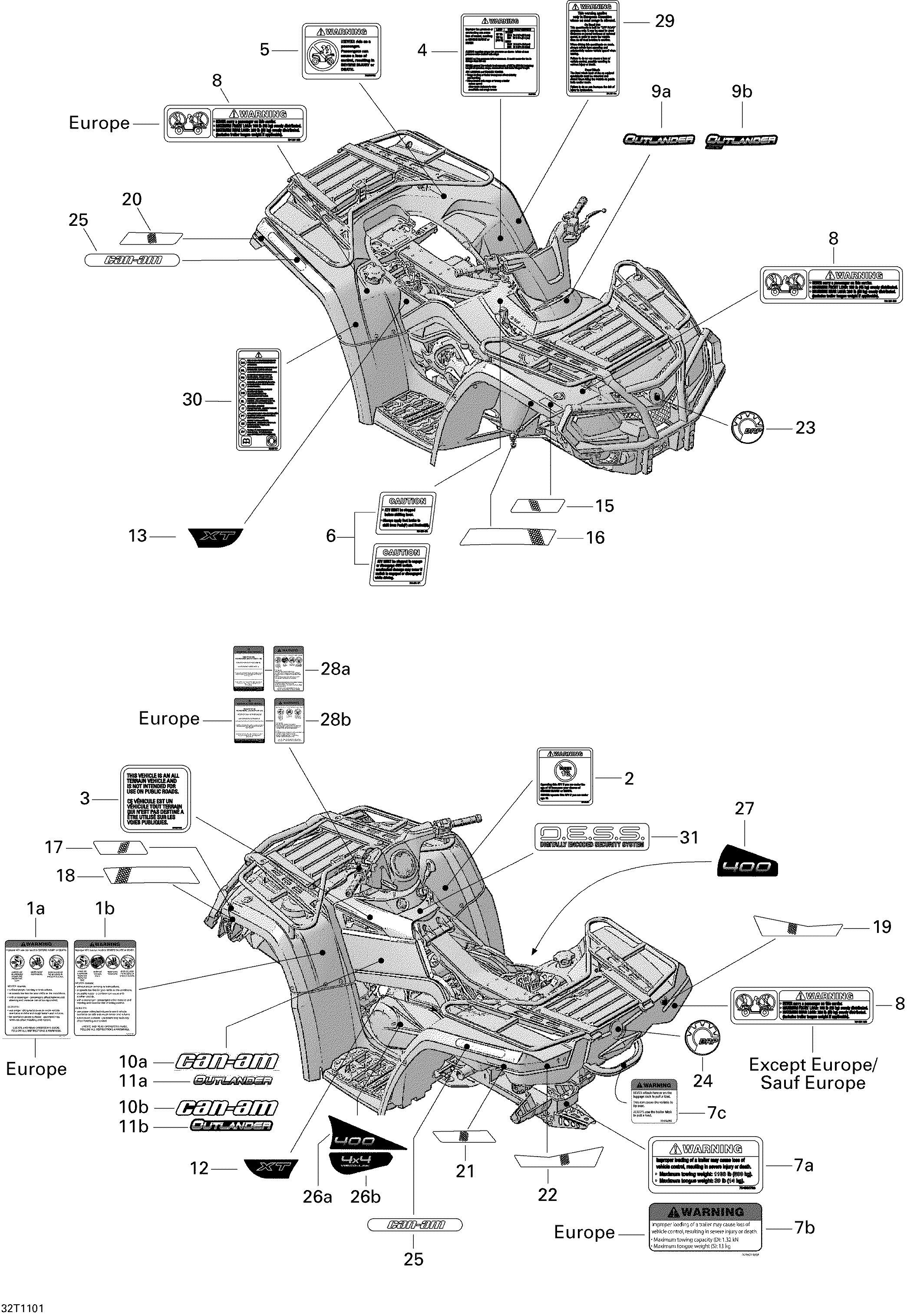

09- Decals для BRP Outlander 400 EFI - 2011
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. North America, InternationalWarning Decal, Death And Injuries. North America, International
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. North America, InternationalTransport Canada Label. North America, International
-
4704902398 Warning Decal, PneumaticWarning Decal, Pneumatic
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7A704900766 Warning Decal, Maximum Towing. North America, InternationalWarning Decal, Maximum Towing. North America, International
-
7b704901905 Warning Label. EuropeWarning Label. Europe
-
7c704902005 Warning Label, Porte-BagagesWarning Label, Porte-Bagages
-
8704901089 Warning Decal, LoadWarning Decal, Load
-
9a704902200 Decal Console. STDDecal Console. STD
-
9b704902202 Decal Console, 400 XT. XTDecal Console, 400 XT. XT
-
10a704902204 CAN-AM Decal. Yellow ModelCAN-AM Decal. Yellow Model
-
10a704902204 CAN-AM Decal. Red ModelCAN-AM Decal. Red Model
-
10b704902389 CAN-AM Decal. Black ModelCAN-AM Decal. Black Model
-
11a704902220 Side Decal. Yellow ModelSide Decal. Yellow Model
-
11a704902220 Side Decal. Red ModelSide Decal. Red Model
-
11b704902388 Side Decal. Black ModelSide Decal. Black Model
-
12704902224 LH Side Decal. XTLH Side Decal. XT
-
13704902225 RH Side Decal. XTRH Side Decal. XT
-
15704901433 RH Front Side ReflectorRH Front Side Reflector
-
16704901428 RH Front Side Reflector (Long)RH Front Side Reflector (Long)
-
17704901434 LH Front Side ReflectorLH Front Side Reflector
-
18704901427 LH Front Side Reflector (Long)LH Front Side Reflector (Long)
-
19704901426 RH Rear Reflector. North America, InternationalRH Rear Reflector. North America, International
-
20704901424 RH Rear ReflectorRH Rear Reflector
-
21704901423 LH Rear ReflectorLH Rear Reflector
-
22704901425 LH Rear Reflector. North America, InternationalLH Rear Reflector. North America, International
-
23219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
24219902672 Logo, BRP 68 mmLogo, BRP 68 mm
-
25704901271 Can-am LabelCan-am Label
-
26a704902083 CVT DecalCVT Decal
-
26b704902211 CVT DecalCVT Decal
-
27704902210 Warning, Engine CoverWarning, Engine Cover
-
28a704901859 Warning Label, General Use Model. North America, InternationalWarning Label, General Use Model. North America, International
-
28b704901861 Warning Label, General Use Model. EuropeWarning Label, General Use Model. Europe
-
29704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
30704901177 International Decal, MultilingualInternational Decal, Multilingual
-
31704901117 DESS DecalDESS Decal
