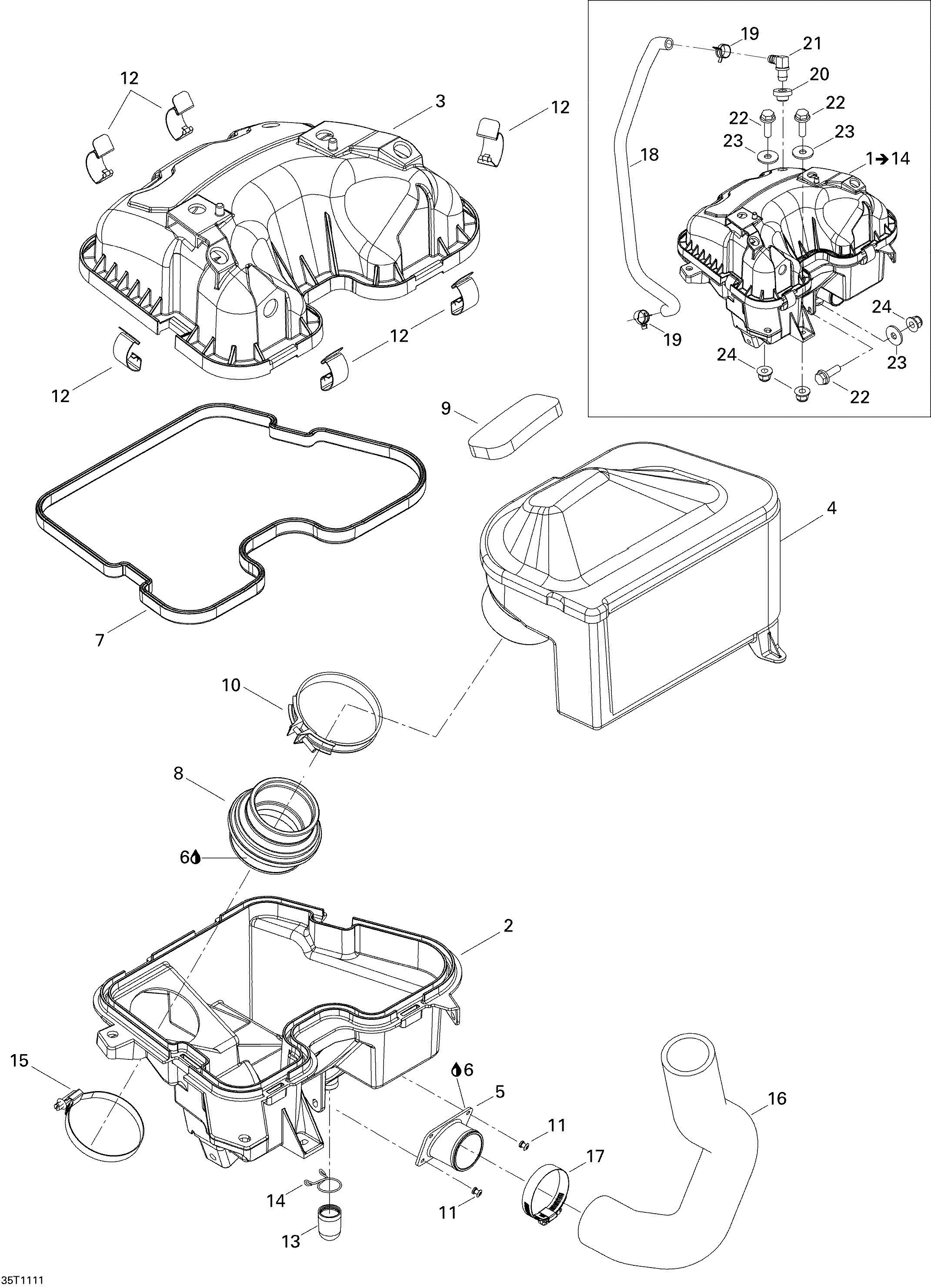

02- Air Intake Silencer для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
2707800390 Intake SilencerIntake Silencer
-
3707800400 Intake Silencer CoverIntake Silencer Cover
-
4707800288 Air FilterAir Filter
-
5707800391 Front Intake AdaPTOrFront Intake AdaPTOr
-
6293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
7707800197 Oil SealOil Seal
-
8707800289 Intake AdaptorIntake Adaptor
-
9707800304 FoamFoam
-
10293650198 ClampClamp
-
12707800231 Cover BracketCover Bracket
-
13707800080 Drain TubeDrain Tube
-
14707800278 Retainer ClipRetainer Clip
-
15293650091 Norma ClampNorma Clamp
-
16707800392 Vent HoseVent Hose
-
17293650035 Tridon ClampTridon Clamp
-
18707800428 Vent HoseVent Hose
-
19293650110 Norma ClampNorma Clamp
-
20707800347 GrommetGrommet
-
21414523600 Elbow FittingElbow Fitting
-
22207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
23391302000 Flat WasherFlat Washer
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
