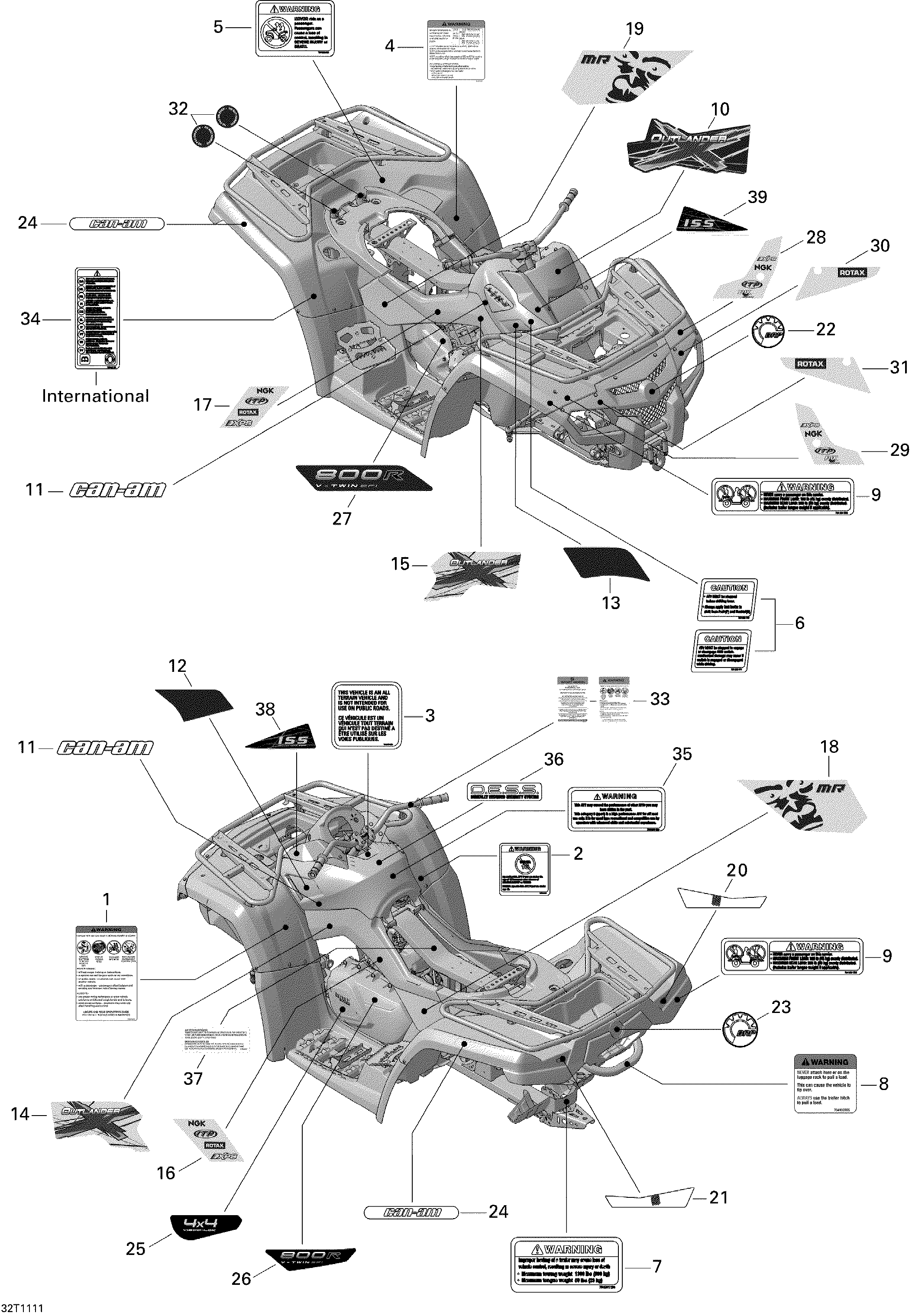

09- Decals для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
1704901878 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada LabelTransport Canada Label
-
4704902356 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7704901123 Warning Decal, TrailerWarning Decal, Trailer
-
8704902005 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
9704901089 Warning Decal, LoadWarning Decal, Load
-
10704902236 Console Decal, OutlanderConsole Decal, Outlander
-
11704902237 Center Panel Decal, Can-AmCenter Panel Decal, Can-Am
-
12704902260 LH Panel DecalLH Panel Decal
-
13704902261 RH Panel DecalRH Panel Decal
-
14704902238 LH Side Decal, OutlanderLH Side Decal, Outlander
-
15704902239 RH Side Decal, OutlanderRH Side Decal, Outlander
-
16704902240 LH Sponsor DecalLH Sponsor Decal
-
17704902241 RH Sponsor DecalRH Sponsor Decal
-
18704902492 LH Decal, MRLH Decal, MR
-
19704902493 RH Decal, MRRH Decal, MR
-
20704901426 RH Rear ReflectorRH Rear Reflector
-
21704901425 LH Rear ReflectorLH Rear Reflector
-
22219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
23219902672 Logo, BRP 68 mmLogo, BRP 68 mm
-
24704901271 Decal, Can-AmDecal, Can-Am
-
25704902083 Decal, CVTDecal, CVT
-
26704902084 LH Engine Cover DecalLH Engine Cover Decal
-
27704902085 RH Engine Cover DecalRH Engine Cover Decal
-
28704902252 LH Front Sponsor DecalLH Front Sponsor Decal
-
29704902253 RH Front Sponsor DecalRH Front Sponsor Decal
-
30704902250 LH Rotax DecalLH Rotax Decal
-
31704902251 RH Rotax DecalRH Rotax Decal
-
32704902440 Cap DecalCap Decal
-
33704901876 Warning Decal, General Use ModelWarning Decal, General Use Model
-
34704901177 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
35704900089 Warning Decal, PerformanceWarning Decal, Performance
-
36704901117 DESS DecalDESS Decal
-
37707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
38704902447 LH Decal, ISSLH Decal, ISS
-
39704902448 RH Decal, ISSRH Decal, ISS
