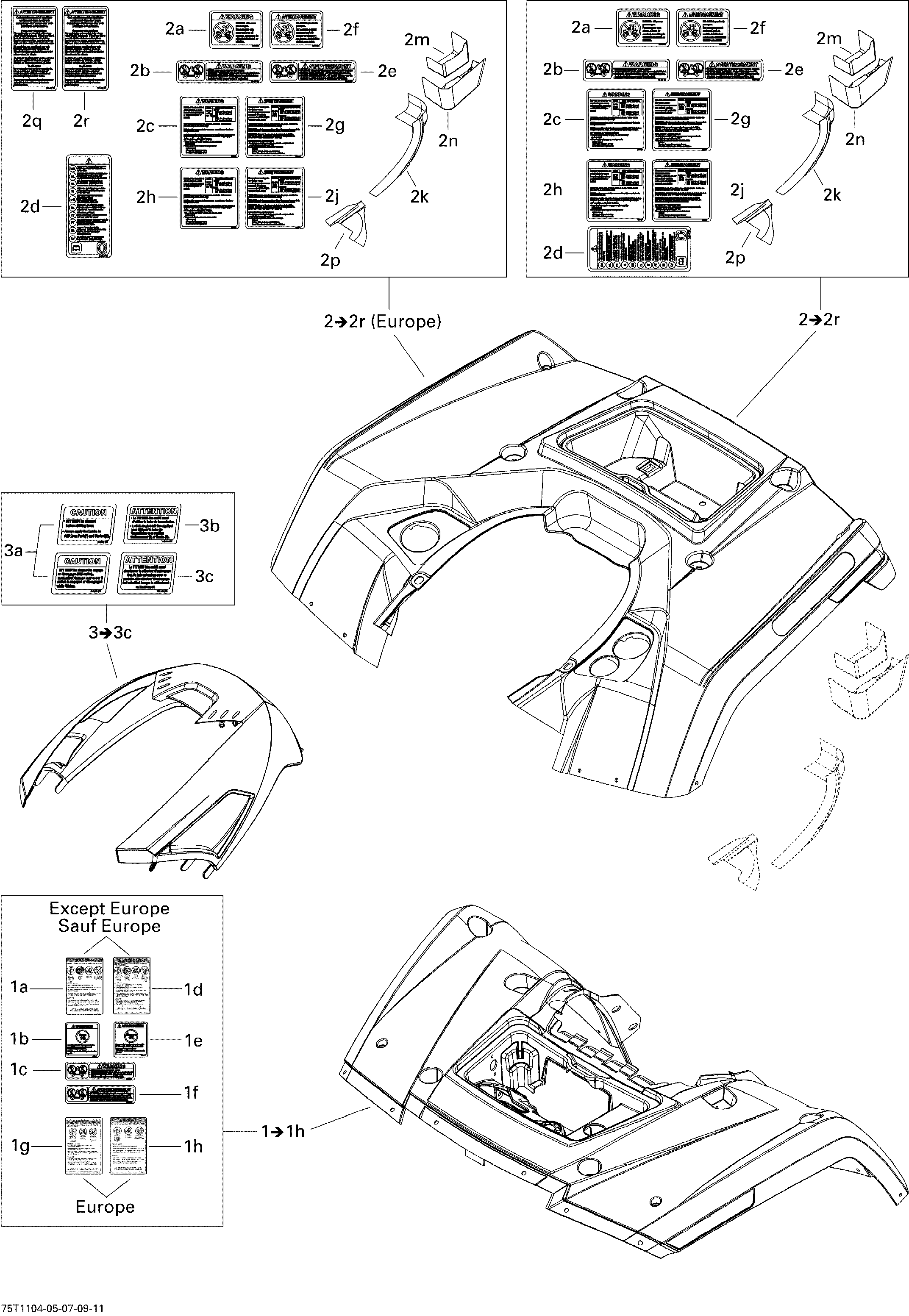

09- Fender And Central Panel Kit для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
1715000815 Front Fender Kit, Black. Includes 1 to 1h, Black ModelFront Fender Kit, Black. Includes 1 to 1h, Black Model
-
1a704901749 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1b704901753 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
1c704901089 Warning Decal, LoadWarning Decal, Load
-
1d704901750 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1e704901858 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
1f704901090 Warning Decal, LoadWarning Decal, Load
-
1g704901752 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
1h704901751 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
2715000821 Rear Fender Kit, Black. Includes 2 to 2r, Black ModelRear Fender Kit, Black. Includes 2 to 2r, Black Model
-
2a704902394 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
2b704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
2c704902402 Warning Decal, Tire Pressure. English VersionWarning Decal, Tire Pressure. English Version
-
2d704901177 International Decal, MultilingualInternational Decal, Multilingual
-
2e704901090 Warning Decal, Load. French VersionWarning Decal, Load. French Version
-
2f704902395 Warning Decal, Passenger. French VersionWarning Decal, Passenger. French Version
-
2g704902403 Warning Decal, Tire Pressure. French VersionWarning Decal, Tire Pressure. French Version
-
2h704902416 Warning Decal, Tire Pressure. English Version, EuropeWarning Decal, Tire Pressure. English Version, Europe
-
2j704902419 Warning Decal, Tire Pressure. French VersionWarning Decal, Tire Pressure. French Version
-
2k705002085 Reflective SheetReflective Sheet
-
2m705002189 Reflective SheetReflective Sheet
-
2n705002191 Reflective SheetReflective Sheet
-
2p705002014 Reflective SheetReflective Sheet
-
2q704901444 Warning Decal, Public Roads Use. English Version, EuropeWarning Decal, Public Roads Use. English Version, Europe
-
2r704901158 Warning Decal, Public Roads Use. French Version, EuropeWarning Decal, Public Roads Use. French Version, Europe
-
3715001274 Central Panel Kit, Yellow. XmrCentral Panel Kit, Yellow. Xmr
-
3a704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
3b704900475 Caution Decal, Shifting LeverCaution Decal, Shifting Lever
-
3c704900476 Caution Decal, 4wd SwitchCaution Decal, 4wd Switch
