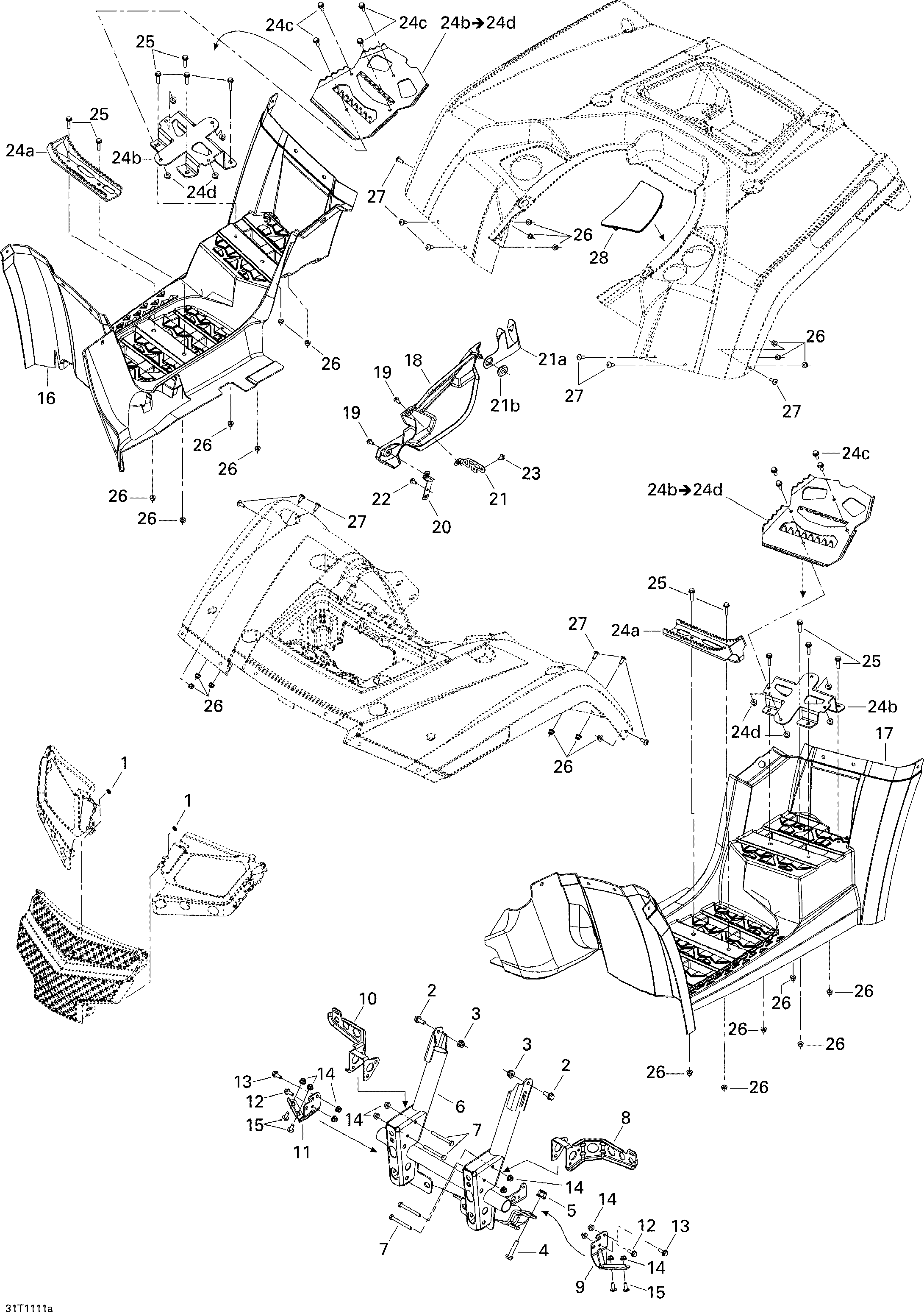

09- Body And Accessories 1 для BRP Outlander 800R EFI, XMR - 2011
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4207603044 Hex. Flanged Screw M10 X 30Hex. Flanged Screw M10 X 30
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
6705003654 Front BumperFront Bumper
-
7207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
8705002925 LH Facia SupportLH Facia Support
-
9705003037 LH Lower Facia SupportLH Lower Facia Support
-
10705002926 RH Facia SupportRH Facia Support
-
11705003039 RH Lower Facia SupportRH Lower Facia Support
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
16705002487 RH FootboardRH Footboard
-
17705003633 LH FootboardLH Footboard
-
18705003839 Engine CoverEngine Cover
-
19210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
20705003646 Engine Cover SupportEngine Cover Support
-
21705002667 Engine Cover SupportEngine Cover Support
-
21a705002121 Engine Cover SupportEngine Cover Support
-
21b705005156 Oblong WasherOblong Washer
-
22210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
23207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
24a705002326 FootrestFootrest
-
24b715001137 Footrest, Xmr. Includes 24b to 24dFootrest, Xmr. Includes 24b to 24d
-
24c207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
24d233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
28705001910 LH Cap, BlackLH Cap, Black
