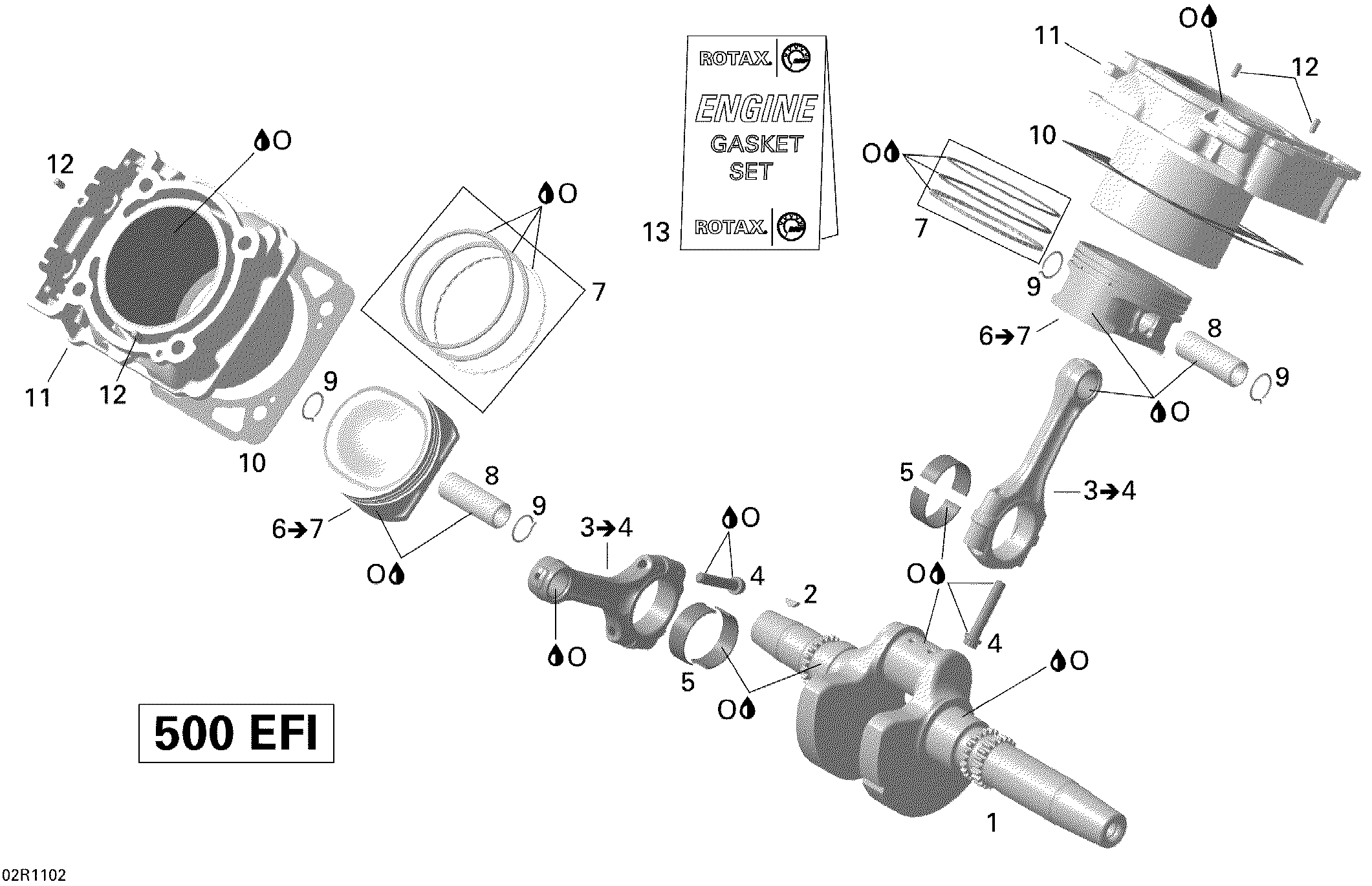

01- Crankshaft, Piston And Cylinder RENEGADE для BRP Renegade 500 EFI - 2011
-
№АртикулНазвание
-
1420219697 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217455 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641790 Connecting Rod Screw M7 X 1Connecting Rod Screw M7 X 1
-
5420233111 Plain Bearing 35 X 38 X 15Plain Bearing 35 X 38 X 15
-
6420684412 Piston Ass'y, 81.958 mm. Includes 6 to 7Piston Ass'y, 81.958 mm. Includes 6 to 7
-
7420684384 Piston Ring SetPiston Ring Set
-
8420216311 Piston PinPiston Pin
-
9420845540 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613887 Cylinder With SleeveCylinder With Sleeve
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
13420684148 Gasket Set, EngineGasket Set, Engine
