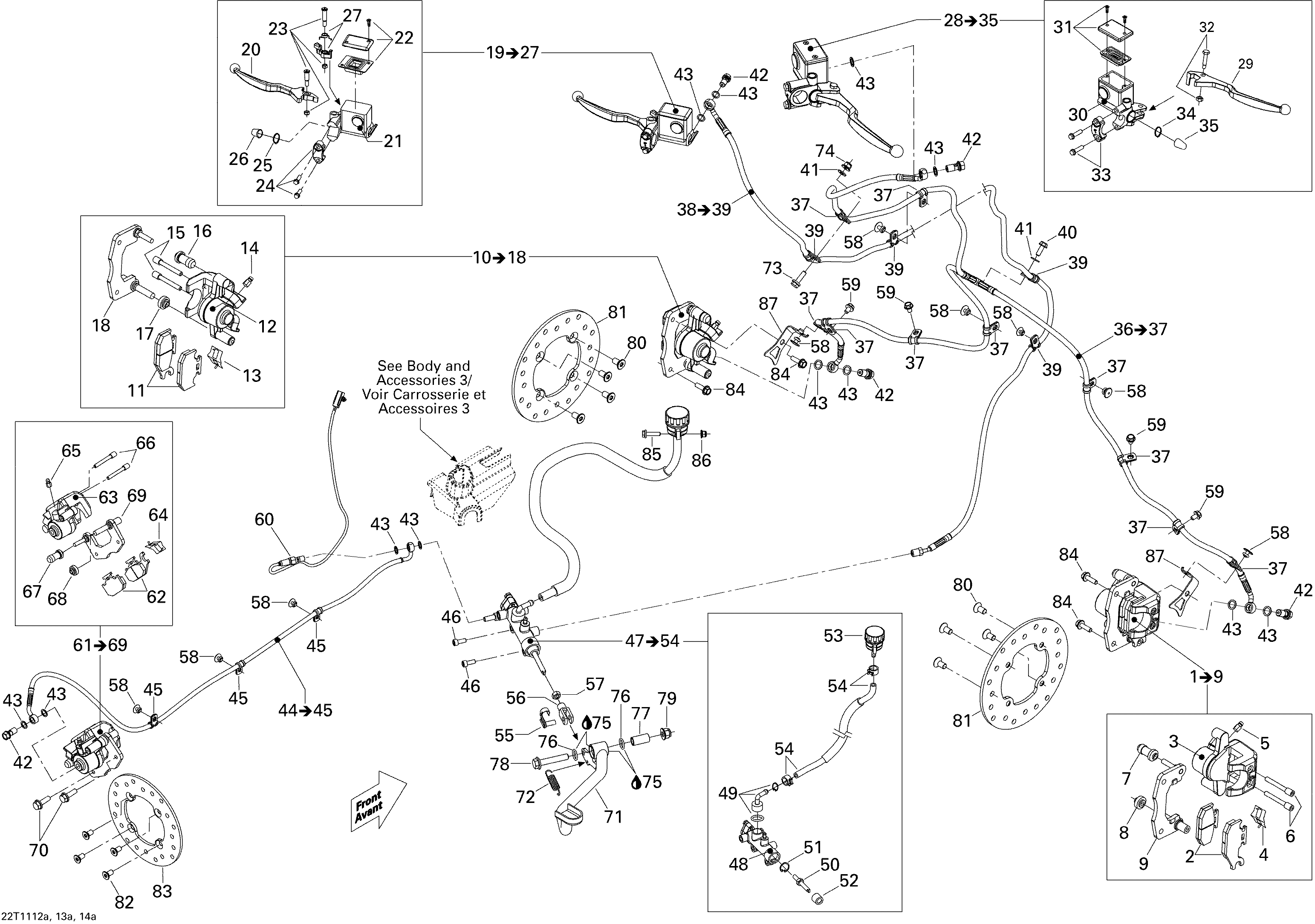

06- Brakes для BRP Renegade 500 EFI - 2011
-
№АртикулНазвание
-
1705600593 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600594 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
19705600845 LH Front Master Cylinder. Includes 19 to 27LH Front Master Cylinder. Includes 19 to 27
-
20705600243 Lever ArmLever Arm
-
22705600084 Cap SetCap Set
-
23705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
24705600087 Bracket KitBracket Kit
-
25705600088 CirclipCirclip
-
26705600089 Compression BootCompression Boot
-
27705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
28705600956 RH Front Master Cylinder. Includes 28 to 35RH Front Master Cylinder. Includes 28 to 35
-
29705600629 Lever ArmLever Arm
-
30705600086 Switch KitSwitch Kit
-
31705600084 Cap SetCap Set
-
32705600085 Bolt KitBolt Kit
-
33705600087 Bracket KitBracket Kit
-
34705600088 CirclipCirclip
-
35705600089 Compression BootCompression Boot
-
36705600597 Front Hose. Includes 36 to 37Front Hose. Includes 36 to 37
-
37705600459 ClampClamp
-
38705600598 Front Hose. Includes 38 to 39Front Hose. Includes 38 to 39
-
39705600459 ClampClamp
-
40210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
41224061121 Flat WasherFlat Washer
-
42705600609 Banjo BoltBanjo Bolt
-
43705600310 Copper WasherCopper Washer
-
44705600961 Rear Hose. Includes 44 to 45Rear Hose. Includes 44 to 45
-
45705600459 ClampClamp
-
46250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
47705600751 Master Cylinder. Includes 47 to 54Master Cylinder. Includes 47 to 54
-
48705600255 Piston SetPiston Set
-
49705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
51705600068 CirclipCirclip
-
52705600090 Compression BootCompression Boot
-
53705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
54705600754 Oil Housing HoseOil Housing Hose
-
55250400007 PinPin
-
56705600100 YokeYoke
-
57232081414 Hex. Nut M8Hex. Nut M8
-
58390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
59210261040 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
60705600798 Brake SwitchBrake Switch
-
61705600599 Rear Caliper. Includes 61 to 69Rear Caliper. Includes 61 to 69
-
62705600014 Brake Pad KitBrake Pad Kit
-
63705600078 Piston SetPiston Set
-
64705600079 SpringSpring
-
65705600080 Bleeding ScrewBleeding Screw
-
66705600081 Pin SetPin Set
-
67705600082 Compression BootCompression Boot
-
68705600083 Compression BootCompression Boot
-
70207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
71705600784 Brake Pedal, BlackBrake Pedal, Black
-
72705600792 Brake Pedal SpringBrake Pedal Spring
-
73207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
74233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
75293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
76293300144 O-RingO-Ring
-
77705600815 Inner SpacerInner Spacer
-
78207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
79233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
80235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
81705600604 Disk BrakeDisk Brake
-
82235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
83705600604 Disk BrakeDisk Brake
-
84207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
85207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
87705600795 BracketBracket
