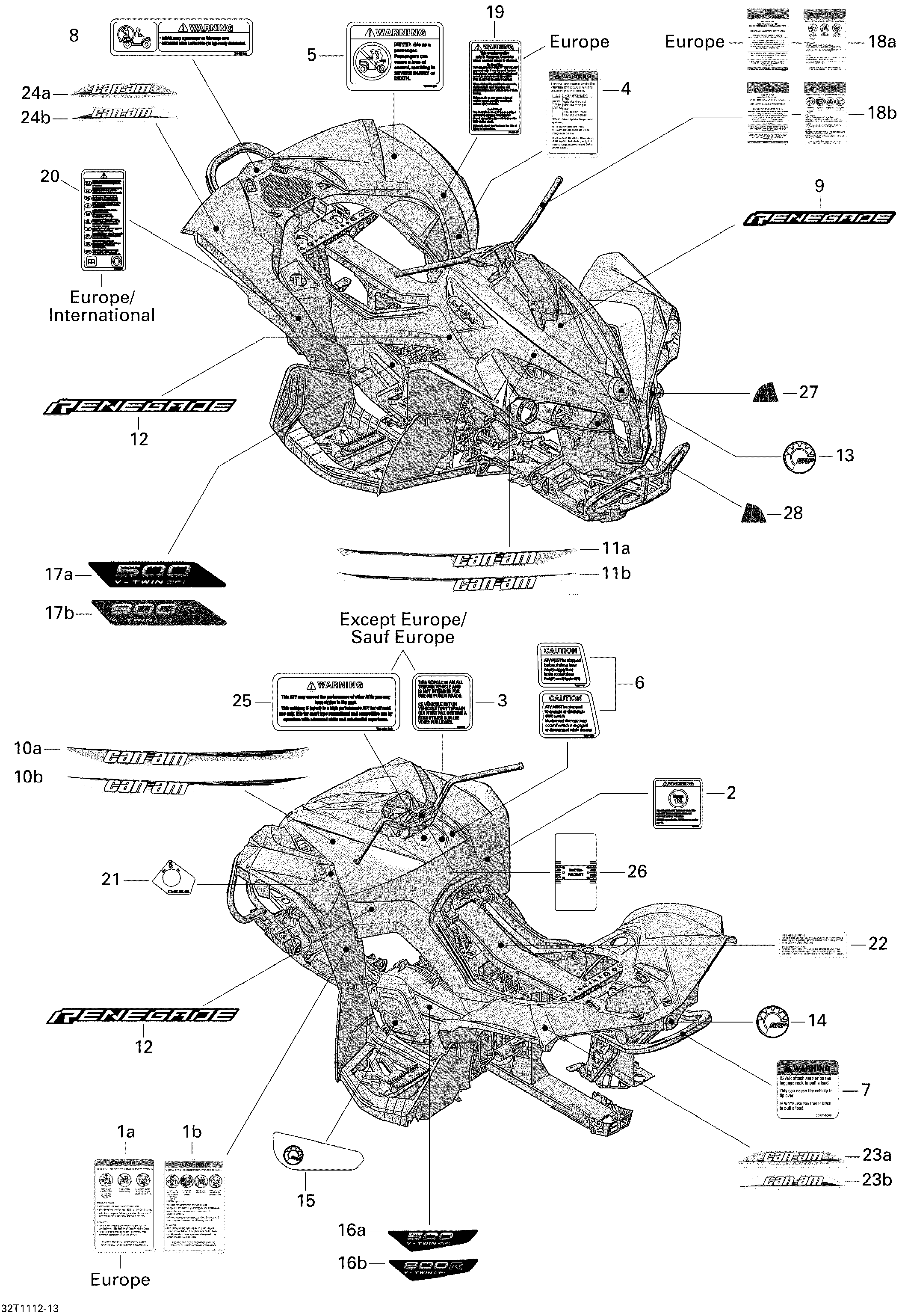

09- Decals для BRP Renegade 500 EFI - 2011
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4704902396 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704901308 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7704902005 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
8704901333 Warning Decal, LoadWarning Decal, Load
-
9704902077 Console DecalConsole Decal
-
10a704902078 LH Front Decal, Can-Am. Yellow ModelLH Front Decal, Can-Am. Yellow Model
-
10b704902079 LH Front Decal, Can-Am. White ModelLH Front Decal, Can-Am. White Model
-
11a704902080 RH Front Decal, Can-Am. Yellow ModelRH Front Decal, Can-Am. Yellow Model
-
11b704902081 RH Front Decal, Can-Am. White ModelRH Front Decal, Can-Am. White Model
-
12704902082 Side Decal, RenegadeSide Decal, Renegade
-
13219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
14219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
15704902083 Decal, CVTDecal, CVT
-
16a704902098 LH Engine Cover Decal. 500 EFILH Engine Cover Decal. 500 EFI
-
17a704902099 RH Engine Cover Decal. 500 EFIRH Engine Cover Decal. 500 EFI
-
18a704901877 Warning Decal, General Use Model. EuropeWarning Decal, General Use Model. Europe
-
18b704901876 Warning Decal, General Use Model. Except EuropeWarning Decal, General Use Model. Except Europe
-
19704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
20704901177 International Decal, Multilingual. Europe, InternationalInternational Decal, Multilingual. Europe, International
-
21704901311 D.E.S.S DecalD.E.S.S Decal
-
22707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
23a704902086 LH Rear Decal, Can-Am. Yellow ModelLH Rear Decal, Can-Am. Yellow Model
-
23b704902087 LH Rear Decal, Can-Am. White ModelLH Rear Decal, Can-Am. White Model
-
24a704902088 RH Rear Decal, Can-Am. Yellow ModelRH Rear Decal, Can-Am. Yellow Model
-
24b704902089 RH Rear Decal, Can-Am. White ModelRH Rear Decal, Can-Am. White Model
-
25704900089 Warning Decal, Performance. Except EuropeWarning Decal, Performance. Except Europe
-
26704901411 Micro-Adjust DecalMicro-Adjust Decal
-
27704901960 LH Front DecalLH Front Decal
-
28704901961 RH Front DecalRH Front Decal
