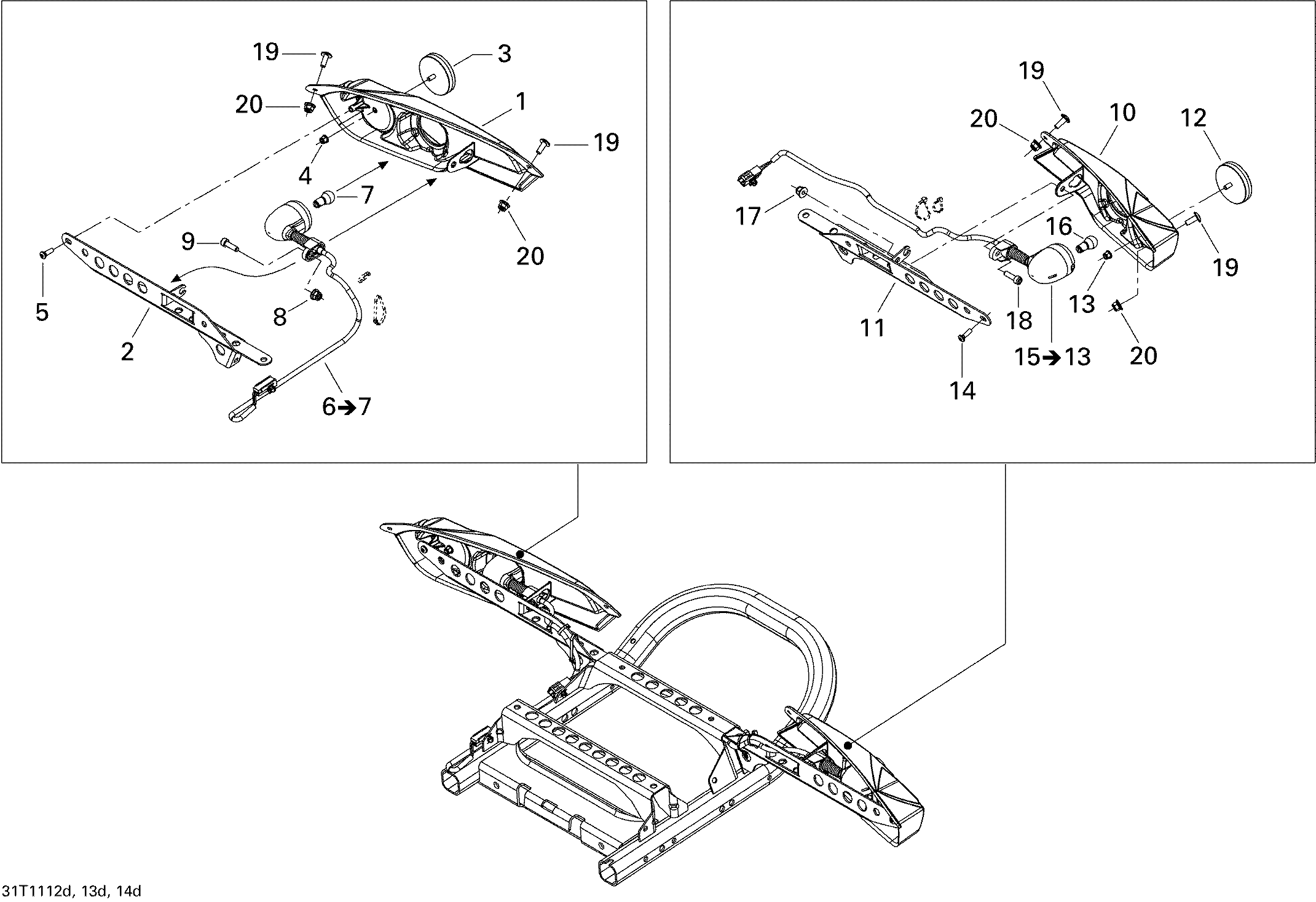

09- Body And Accessories 4 для BRP Renegade 500 EFI - 2011
-
№АртикулНазвание
-
1705002265 RH Rear Facia. EuropeRH Rear Facia. Europe
-
2705002431 RH Rear Facia Support. EuropeRH Rear Facia Support. Europe
-
3705002408 Reflector, Red. EuropeReflector, Red. Europe
-
4233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
-
5250000146 Truss Head Torx Screw K50 X 16. EuropeTruss Head Torx Screw K50 X 16. Europe
-
6710001079 Flashing Light. EuropeFlashing Light. Europe
-
7205062044 Socket Head Screw M6 X 20. EuropeSocket Head Screw M6 X 20. Europe
-
8233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
9415129258 BulbBulb
-
10705002266 LH Rear Facia. EuropeLH Rear Facia. Europe
-
11705002432 LH Rear Facia Support. EuropeLH Rear Facia Support. Europe
-
12705002408 Reflector, Red. EuropeReflector, Red. Europe
-
13233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
-
14250000146 Truss Head Torx Screw K50 X 16. EuropeTruss Head Torx Screw K50 X 16. Europe
-
15710001080 Flashing Light. EuropeFlashing Light. Europe
-
16205062044 Socket Head Screw M6 X 20. EuropeSocket Head Screw M6 X 20. Europe
-
17233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
18415129258 BulbBulb
-
19207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
