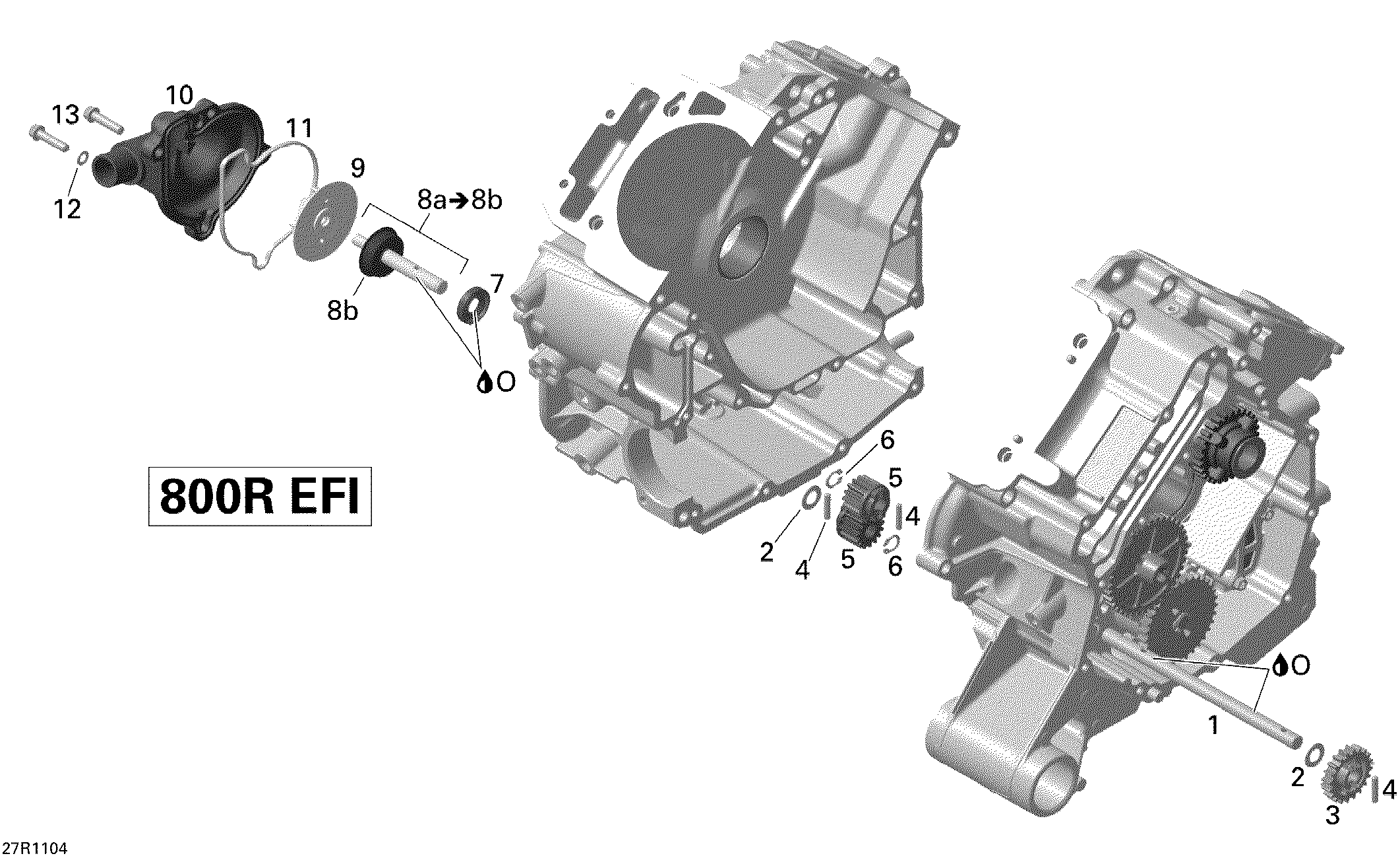

01- Engine Cooling для BRP Renegade 800R EFI - 2011
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6420245330 Snap RingSnap Ring
-
8a420620175 Water Pump Shaft Ass'y. Includes 8a to 8bWater Pump Shaft Ass'y. Includes 8a to 8b
-
8b420650370 Rotary SealRotary Seal
-
9420222505 Water ImpellerWater Impeller
-
10420222785 Water Pump HousingWater Pump Housing
-
11420651190 GasketGasket
-
12420230415 Seal WasherSeal Washer
-
13420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
