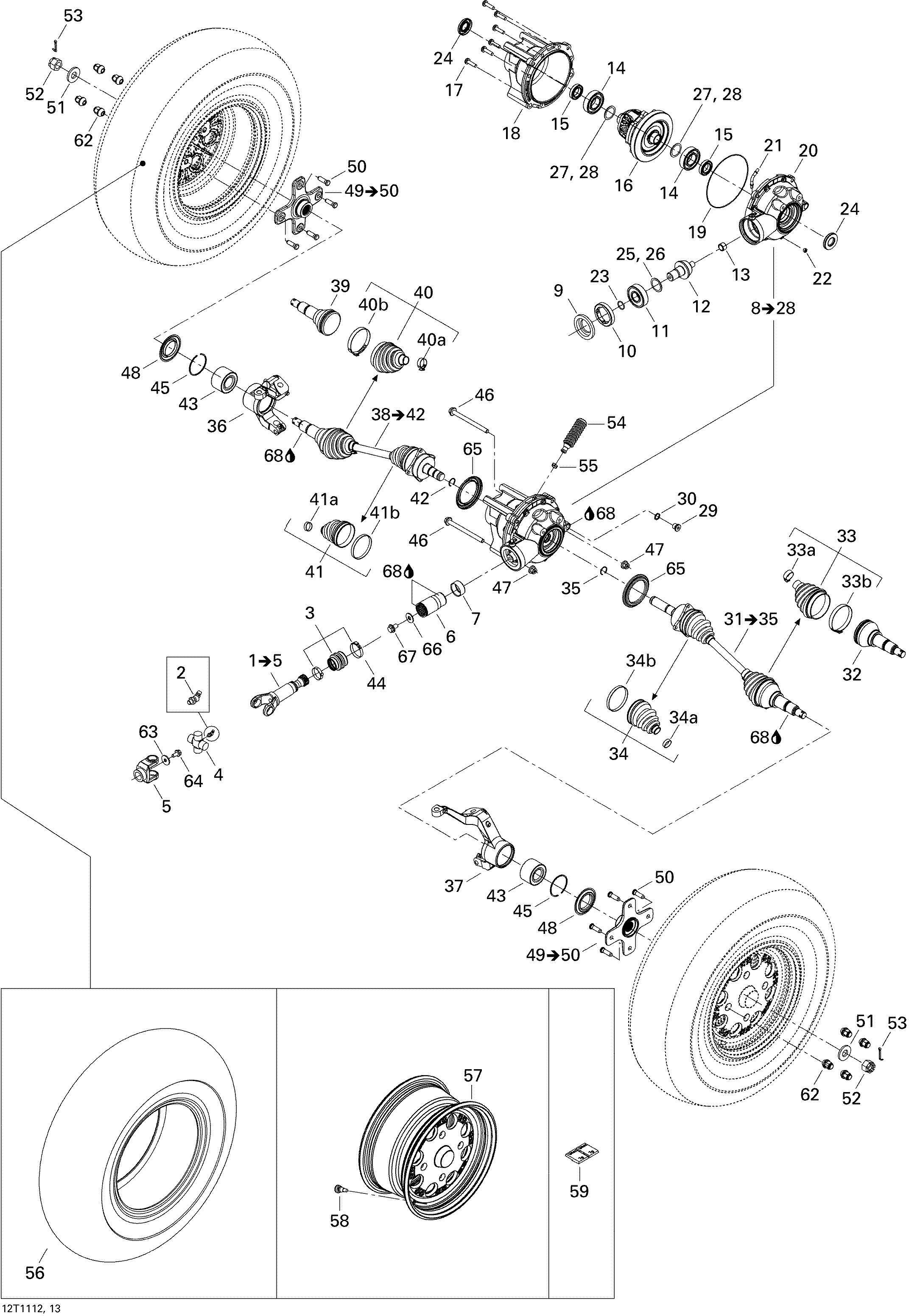

07- Drive System, Front для BRP Renegade 800R EFI - 2011
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 5Front Drive Axle Ass'y. Includes 1 to 5
-
2715900067 Grease FittingGrease Fitting
-
3703500255 Rubber Boot KitRubber Boot Kit
-
4703000024 Unit Pack KitUnit Pack Kit
-
5705400391 Yoke, Fixed JointYoke, Fixed Joint
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400723 Differential Ass'y. Includes 8 to 28Differential Ass'y. Includes 8 to 28
-
9705400027 Oil SealOil Seal
-
10705400661 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705501051 10 Teeth Pinion10 Teeth Pinion
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400645 DifferentialDifferential
-
17705500892 ScrewScrew
-
18705400297 Front CoverFront Cover
-
19705500265 SealSeal
-
20705400646 Front CoverFront Cover
-
21705500893 Vent ValveVent Valve
-
22705500894 Drain PlugDrain Plug
-
23705500267 O-RingO-Ring
-
24705500255 Oil SealOil Seal
-
25703500049 Pinion Shim KitPinion Shim Kit
-
26705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
27703500288 Differential Shim KitDifferential Shim Kit
-
28703500050 Differential Shim KitDifferential Shim Kit
-
29250400041 Screw PlugScrew Plug
-
30705500506 Copper WasherCopper Washer
-
31705400733 RH CV Joint Ass'y. Includes 31 to 35RH CV Joint Ass'y. Includes 31 to 35
-
32705500560 CV JointCV Joint
-
33705400511 Wheel Boot Kit . Includes 33 to 33bWheel Boot Kit . Includes 33 to 33b
-
33a293650192 Oetiker ClampOetiker Clamp
-
33b293650194 Oetiker ClampOetiker Clamp
-
34705400512 Differential Boot Kit. Includes 34 to 34bDifferential Boot Kit. Includes 34 to 34b
-
34a293650192 Oetiker ClampOetiker Clamp
-
34b293650193 Oetiker ClampOetiker Clamp
-
35705400042 CirclipCirclip
-
36705400820 LH KnuckleLH Knuckle
-
37705400821 RH KnuckleRH Knuckle
-
38705400732 LH CV Joint Ass'y. Includes 38 to 42LH CV Joint Ass'y. Includes 38 to 42
-
39705500560 CV JointCV Joint
-
40705400511 Wheel Boot Kit . Includes 41 to 41bWheel Boot Kit . Includes 41 to 41b
-
40a293650192 Oetiker ClampOetiker Clamp
-
40b293650194 Oetiker ClampOetiker Clamp
-
41705400512 Differential Boot Kit. Includes 40 to 40bDifferential Boot Kit. Includes 40 to 40b
-
41a293650192 Oetiker ClampOetiker Clamp
-
41b293650193 Oetiker ClampOetiker Clamp
-
42705400042 CirclipCirclip
-
43293350040 Cone BearingCone Bearing
-
44293650138 Oetiker ClampOetiker Clamp
-
45293370019 CirclipCirclip
-
46230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
47233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48705501122 External Wear SleeveExternal Wear Sleeve
-
49705400787 Wheel Hub Ass'y. Includes 49 to 50Wheel Hub Ass'y. Includes 49 to 50
-
50250300034 Wheel StudWheel Stud
-
51250200049 Spring WasherSpring Washer
-
52250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
53250400036 Cotter PinCotter Pin
-
54705400352 Rubber BellowRubber Bellow
-
55293650042 Oetiker ClampOetiker Clamp
-
56705400600 Front Tire. InternationalFront Tire. International
-
56705400600 Front Tire. North AmericaFront Tire. North America
-
57705400475 Front Tire. EuropeFront Tire. Europe
-
57705400506 Front RimFront Rim
-
58705400193 Rim Valve with CapRim Valve with Cap
-
59705501385 1/2 OZ Weight1/2 OZ Weight
-
60293000110 Valve CapValve Cap
-
62250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
63250200102 Flat Washer M12Flat Washer M12
-
64250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
65705400780 Wear SleeveWear Sleeve
-
66250200102 Flat Washer M12Flat Washer M12
-
67250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
68293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
