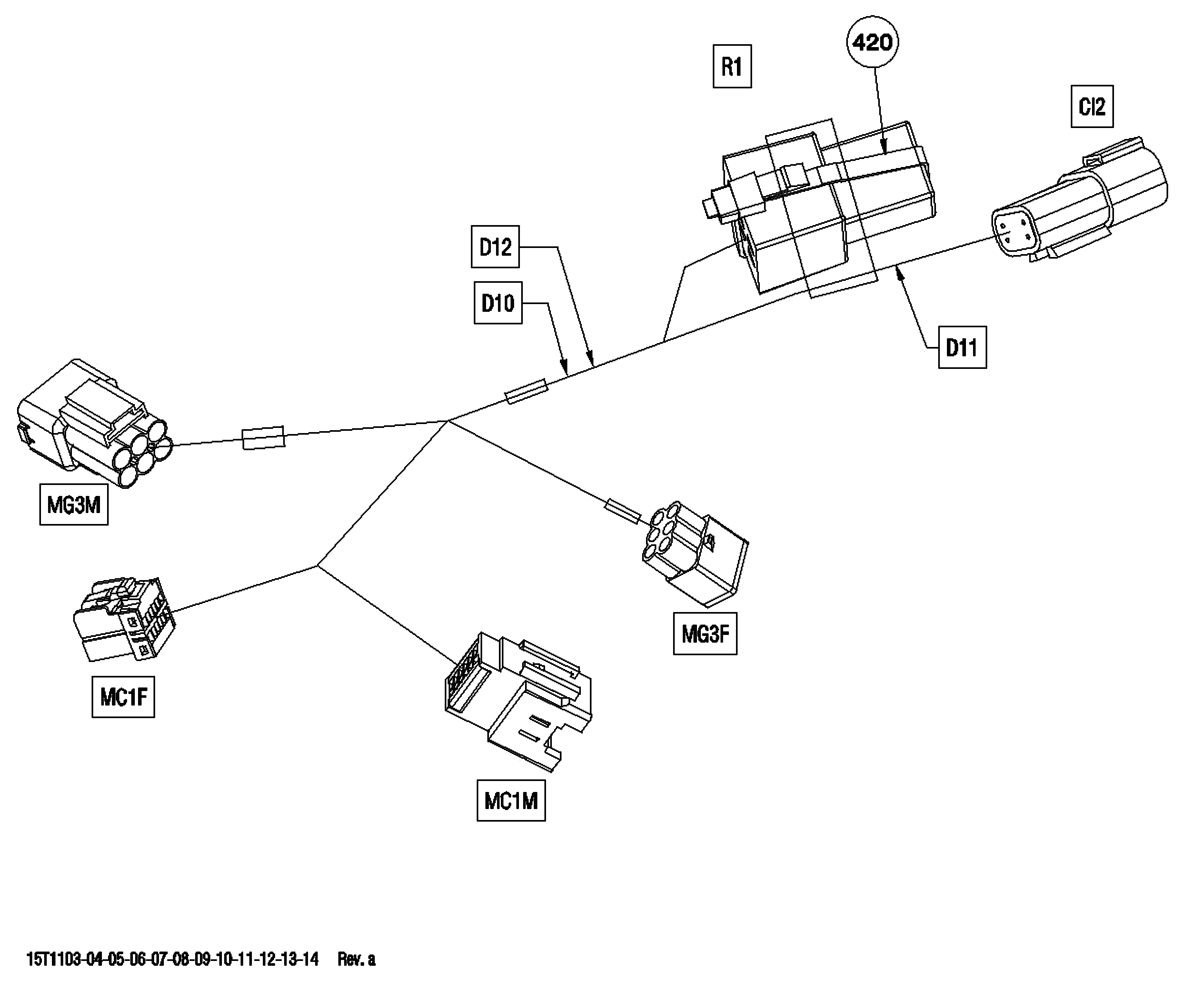

10- Electrical Harness, Front Section Europe для BRP Renegade 800R EFI - 2011
-
№АртикулНазвание
-
1710002358 Added Harness, Europe. Includes 1 to R1Added Harness, Europe. Includes 1 to R1
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
CI2515175667 Male Terminal Housing, 4 PinMale Terminal Housing, 4 Pin
-
CI2278000636 Female Wedge, 4 CircuitsFemale Wedge, 4 Circuits
-
CI2710001348 Male TerminalMale Terminal
-
D10409012700 DiodeDiode
-
D11409012700 DiodeDiode
-
D12409012700 DiodeDiode
-
MC1F293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC1F710001435 HousingHousing
-
MC1F710001436 TerminalTerminal
-
MC1M710002391 HousingHousing
-
MG3F710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MG3F710000402 Wire SealWire Seal
-
MG3F409012100 Female TerminalFemale Terminal
-
MG3M710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MG3M710000402 Wire SealWire Seal
-
MG3M409011300 Male TerminalMale Terminal
-
R1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
R1710002363 HousingHousing
-
R1710000739 Relay, 10 AmperesRelay, 10 Amperes
-
R1710002362 TerminalTerminal
