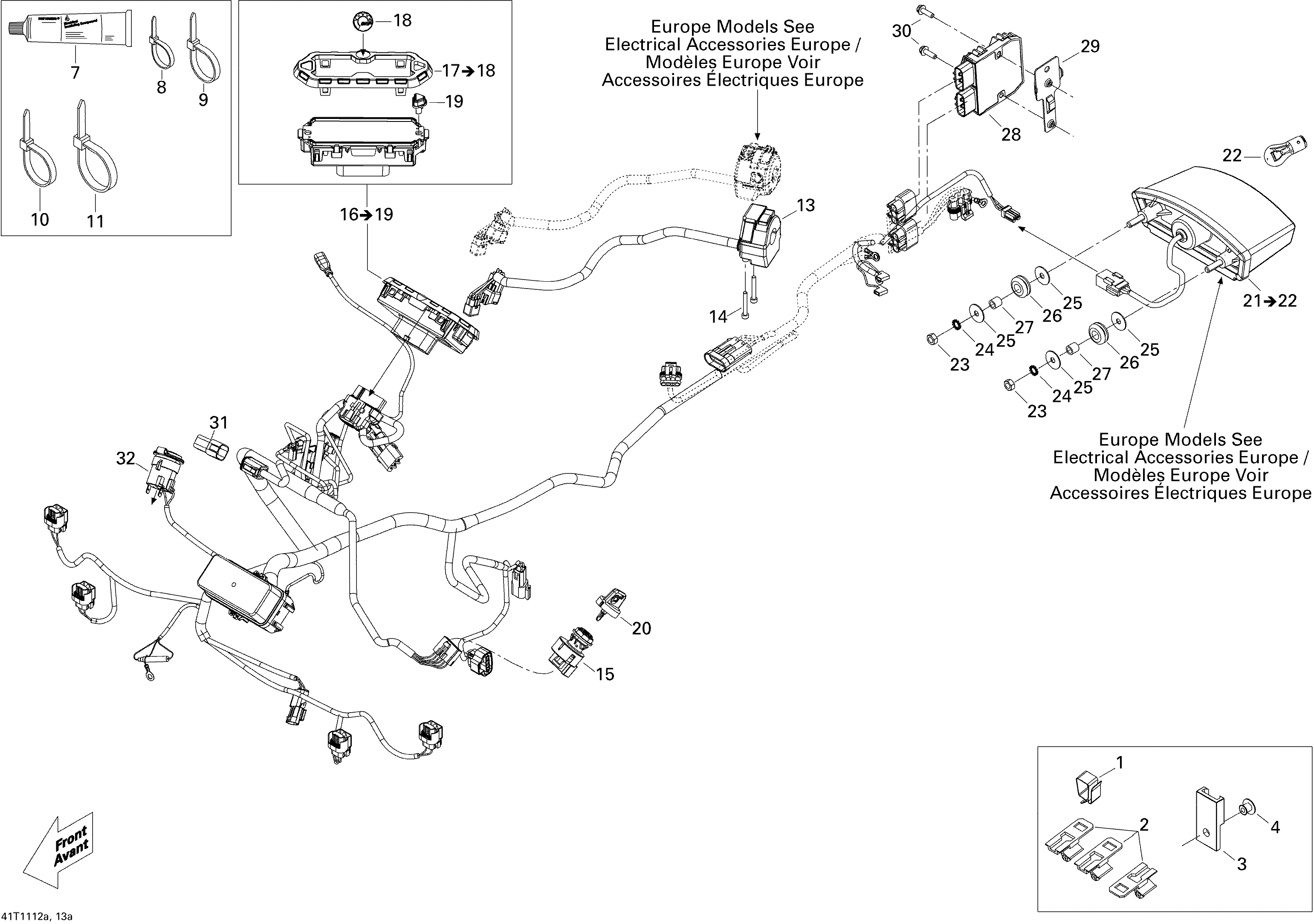

10- Electrical Accessories для BRP Renegade 800R EFI - 2011
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
8293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13710000791 Multi-fonction Handle. North AmericaMulti-fonction Handle. North America
-
13710000791 Multi-fonction Handle. InternationalMulti-fonction Handle. International
-
13710001922 Multi Function Handle. EuropeMulti Function Handle. Europe
-
14205053588 Socket Head Screw M5 X 35. North AmericaSocket Head Screw M5 X 35. North America
-
14205053588 Socket Head Screw M5 X 35. InternationalSocket Head Screw M5 X 35. International
-
15710002324 Ignition SwitchIgnition Switch
-
16710002535 Speedometer. Includes 17 to 19Speedometer. Includes 17 to 19
-
17710001183 Trim RingTrim Ring
-
18704901270 BRP Logo, 13mmBRP Logo, 13mm
-
19710001473 ButtonButton
-
20710000817 Black-Electronic KeyBlack-Electronic Key
-
21710000760 Tail Light. Includes 20 to 21, EuropeTail Light. Includes 20 to 21, Europe
-
21710001041 Tail Light. Includes 20 to 21, InternationalTail Light. Includes 20 to 21, International
-
21710001041 Tail Light. Includes 20 to 21, North AmericaTail Light. Includes 20 to 21, North America
-
22520000758 BulbBulb
-
23232061600 Hex. Nut M6Hex. Nut M6
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25224060201 Flat WasherFlat Washer
-
26293720053 GrommetGrommet
-
27293900045 BushingBushing
-
28710001103 Voltage RegulatorVoltage Regulator
-
29710001262 Rectifier SupportRectifier Support
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
32710001248 Outlet DCOutlet DC
