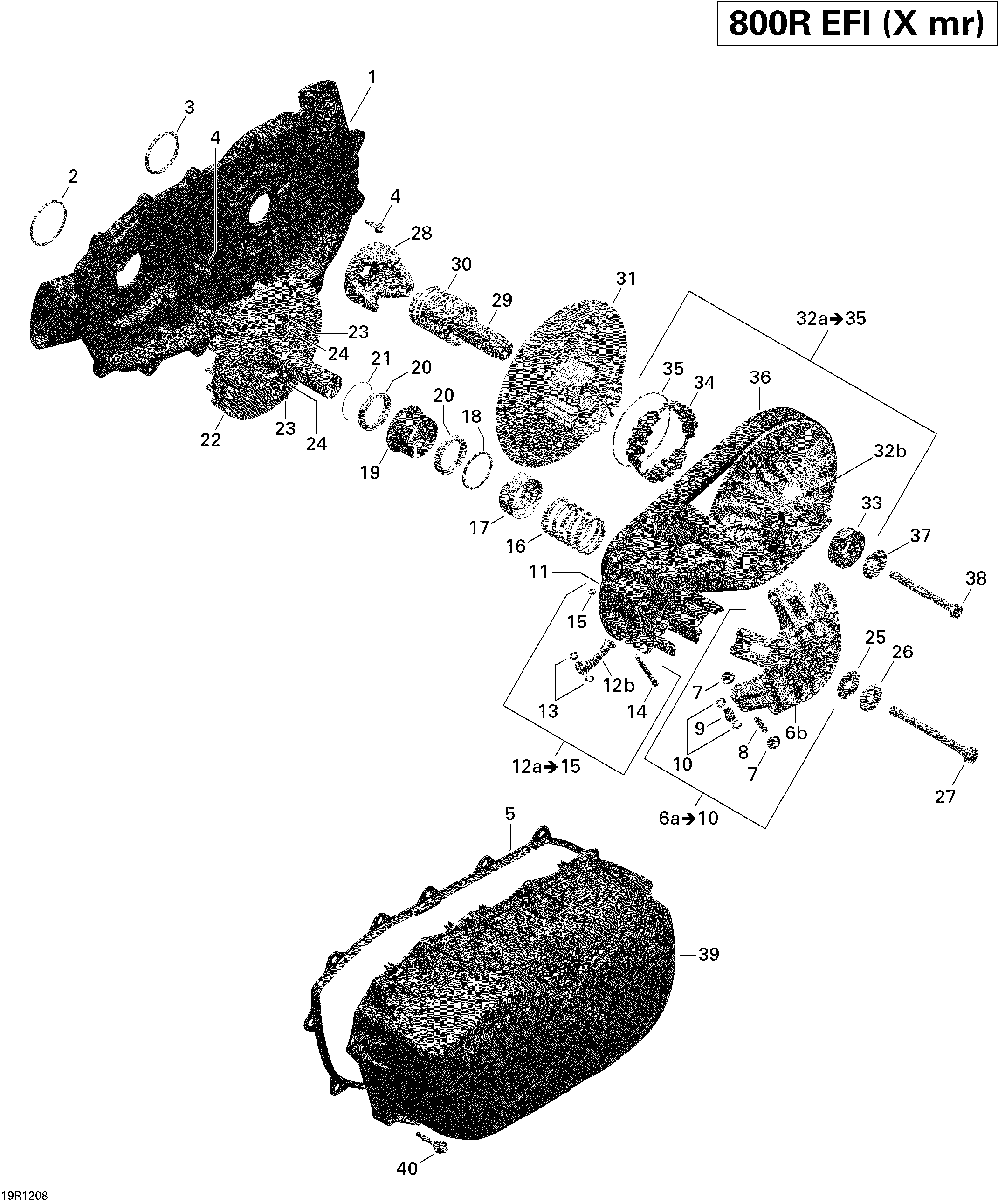

05- Transmission для BRP Outlander 800REFI Xmr - 2012
-
№АртикулНазвание
-
1420611408 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420430126 GasketGasket
-
6a420280517 Governor Cup Ass'y. Includes 6a to 10Governor Cup Ass'y. Includes 6a to 10
-
7420281296 Slider Shoe SetSlider Shoe Set
-
8420233893 Roller SleeveRoller Sleeve
-
9420229997 RollerRoller
-
10420626231 Thrust WasherThrust Washer
-
11420280465 Outher HaftOuther Haft
-
12a420248497 Centrifugal Lever Set. Includes 12a to 15Centrifugal Lever Set. Includes 12a to 15
-
16420238610 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
17420627577 Spring SeatSpring Seat
-
18420460430 Friction WasherFriction Washer
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632375 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
28420280470 CamCam
-
29420220913 Driven Pulley ShaftDriven Pulley Shaft
-
30420238176 Compression SpringCompression Spring
-
31420280236 Inner Half Ass'yInner Half Ass'y
-
32a420280178 Outer Half Pulley Ass'y. Includes 32a to 35Outer Half Pulley Ass'y. Includes 32a to 35
-
33420932421 Ball BearingBall Bearing
-
34420245910 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36715000302 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441480 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
39420611394 Variator CoverVariator Cover
-
40420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
